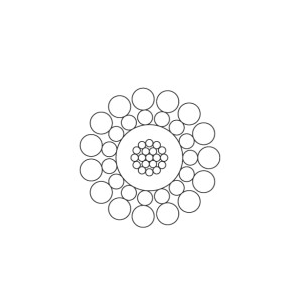

7/32” (5.69 mm) MONOCONDUCTOR 1K22

7/32” (5.69 mm) MONOCONDUCTOR 1K22 PROPERTIES


Cable Diameter: 0.224” +0.005” - 0.002” (5.69mm +0.13mm -0.05mm)
Minimum Sheave Diameter : 14” (36cm)
Cable Stretch Coeffcient: 2.2 ft/Kft/Klbs (2.50 m/Km/5KN)

7/32” (5.69 mm) MONOCONDUCTOR 1K22 ELECTRICAL


Maximum Conductor Voltage: 1,200 VDC
Conductor AWG Rating : 16
Minimum Insulation Resistance : 1,500 MegaΩ/Kft @ 500VDC (457 Mega Ω/Km @ 500VDC)
Armor Electrical Resistance:  4.3 Ω/Kft (14.1 Ω/Km)

7/32” (5.69 mm) MONOCONDUCTOR 1K22 MECHANICAL


Cable Breaking Stength
Ends Fixed:  5,600 lbs (24.9 KN) Nominal
Maximum Suggested Working Tension:  2,800 lbs (12.5 KN)
Number and Size of Wires
Inner Armor:  15 x 0.0243” (0.617 mm)
Outer Armor:  15 x 0.0358” (0.909 mm)
Average Wire Breaking Strength
Inner Armor : 132 lbs (0.59 KN)
Outer Armor:  286 lbs (1.27 KN)

Cable Type Core Description Cable Weight
  Temp
Rating
°F
°C
Plastic
Type
Insulation
Thickness
in
mm
Copper
Construction
in
mm
Res
Typical
Ω/Kft
Ω/Km
Cap.
Typical
pf/ft
pf/m
O.D.
Each
in
mm
in
Air
in
H2O
lbs/Kft
Kg/Km
1K22PP 300
149
Poly 0.0245
0.622
19x0.0119
19x0.302
4.0
13.1
60
197
0.108
2.743
91
136
75
112
1K22PXZ 420
216
Camtane
ETFE
0.0130
0.330
0.0115
0.292
19x0.0119
19x0.302
4.0
13.1
61
200
0.085
2.159
0.108
2.743
92
137
76
114
1K22PTZ 500
260
FEP
ETFE
0.0130
0.330
0.0115
0.292
19x0.0119
19x0.302
4.0
13.1
58
190
0.085
2.159
0.108
2.743
94
140
78
116

The armor wires are high tensile, Galvanized Extra Improved Plow Steel (GEIPS), and coated with anti-corrosion compound for
protection during shipping and storing. Wires are preformed.
Core assembly – Copper strand consists of six wires around one center wire. Conductor resistance is measured at 68° F.
Voids in the copper strand are flled with a water-blocking agent to reduce water and gas migration.
SUPERSEAL, a special pressure seal agent, is applied between armor layers.
The temperature rating assumes a normal gradient for both temperature and weight.
All values shown are nominal or typical values
