1N32

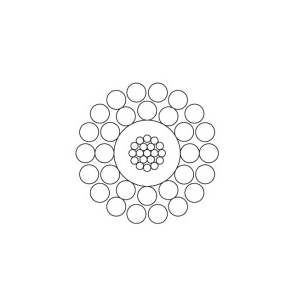

5/16” (8.18 mm) MONOCONDUCTOR 1N32

5/16” (8.18 mm) MONOCONDUCTOR 1N32 PROPERTIES


Cable Diameter 0.322” +0.005” - 0.002” (8.18mm + 0.13mm -0.05mm)
Minimum Sheave Diameter 18” (46 cm)
Cable Stretch Coeffcient 1.2 ft/Kft/Klbs (1.35 m/Km/5KN)

5/16” (8.18 mm) MONOCONDUCTOR 1N32 ELECTRICAL


Maximum Conductor Voltage 1,500 VDC
Conductor AWG Rating 15
Minimum Insulation Resistance 1,500 MegaΩ/Kft @ 500VDC (457 MegaΩ/Km @ 500VDC)
Armor Electrical Resistance 2.1 Ω/Kft (6.9 Ω/Km)

5/16” (8.18 mm) MONOCONDUCTOR 1N32 MECHANICAL


Cable Breaking Strength
Ends Fixed
12,000 lbs (53.3 KN) Nominal
Maximum Suggested Working Tension 6,000 lbs (26.6 KN)
Number and Size of Wires
Inner Armor 12 x 0.0445” (1.130 mm)
Outer Armor 18 x 0.0445” (1.130 mm)
Average Wire Breaking Strength
Inner Armor 442 lbs (1.97 KN)
Outer Armor 442 lbs (1.97 KN)

Cable Type Core Description Cable Weight
  Temp
Rating
°F
°C
Plastic
Type
Insulation
Thickness
in
mm
Copper
Construction
in
mm
Res
Typical
Ω/Kft
Ω/Km
Cap.
Typical
pf/ft
pf/m
O.D.
Each
in
mm
in
Air
in
H2O
lbs/Kft
Kg/Km
1N32PP 300
149
Poly 0.042
1.067
19x0.0142
19x0.361
2.8
9.2
46
151
0.155
3.937
187
278
155
230
1N32PXZ 420
216
Camtane
ETFE
0.022
0.560
0.0200
0.508
19x0.0142
19x0.361
2.8
9.2
47
154
0.115
2.921
0.155
3.937
189
282
157
233
1N32PTZ 500
260
FEP
ETFE
0.0245
0.622
0.0175
0.445
19x0.0142
19x0.361
2.8
9.2
45
148
0.120
3.048
0.155
3.937
194
288
160
238
1N32WG 600
316
TE 0.0421
1.067
19x0.0142
19x0.361
3.2
10.5
46
151
0.155
3.937
195
290
161
240

The armor wires are high tensile, Galvanized Extra Improved Plow Steel (GEIPS), and coated with anti-corrosion compound for
protection during shipping and storing. Wires are preformed.
Core assembly – Copper strand consists of a total of nineteen wires. Conductor resistance is measured at 68° F. Voids in the
copper strand are flled with a water-blocking agent to reduce water and gas migration.
SUPERSEAL, a special pressure seal agent, is applied between armor layers.
The temperature rating assumes a normal gradient for both temperature and weight.
All values shown are nominal or typical values.
