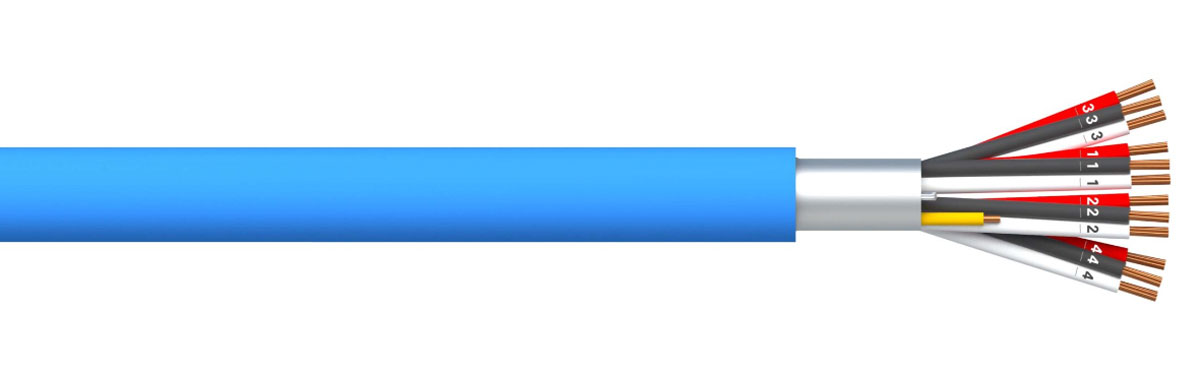

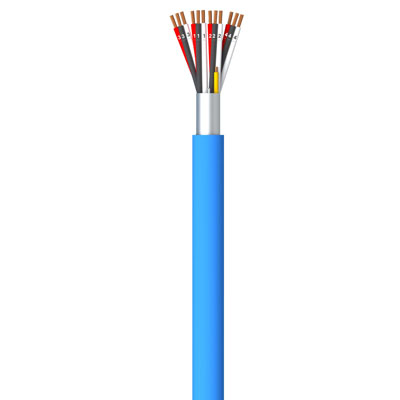

4 triad 0.5mm2 Overall Foil Instrumentation Cable Details:
4 triad 0.5mm2 Overall Foil Instrumentation Cable are widely used for measurement & control in the field of electronics. We follow stringent quality control measures and fabricate cables that conform to the International Industry standards. Our Shielded Instrumentation Cables are suitable for maxi-term point connections and provide vital communication link between Sensing Devices & Read Out Equipment for analog & digital signals.
4 triad 0.5mm2 Overall Foil Instrumentation Cable Features
Sunlight & Oil Resistant
Rated for Direct Burial
90°C applications
4 triad 0.5mm2 Overall Foil Instrumentation Cable Specifications :
Conductor Size: 1.5mm2
Conductor Stranding: 7/0.50mm
Conductor Material: Bare Copper
Insulation Material: V90HT FR-PVC
Colour Code: Black, White & Red Numbered Cores
Comm. Wire: 22AWG Solid Bare Copper
Overall Shield: Aluminium / Polyester Tape
Overall Drain: 0.5mm2 7 Strand Tinned Copper
Ripcord: Ripcord
Bedding: FR-PVC Black Jacket
Armour: Galvanised Steel Wire Armour
Jacket: FR-PVC Black Jacket
4 triad 0.5mm2 Overall Foil Instrumentation Cable Applications :
For Connection of Instruments, Computers Networking, Process Control Systems
Digital Control / Measuring Data Communication Systems
Projects related to power generation and distribution
Chemical and fertilizer industries
Other engineering industries
4 triad 0.5mm2 Overall Foil Instrumentation Cable why choose HuaDong?
Huadong Cable Group as a special Triad Cable Shielded Instrumentation Cables factory in China, We not only have over 30 years of production experience and 15 years of export experience in Shielded Instrumentation Cables, but also we have 15 senior engineers, they can free design the 4 triad 0.5mm2 Overall Foil Instrumentation Cable according to client’s requirement.
Our 4 triad 0.5mm2 Overall Foil Instrumentation Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
