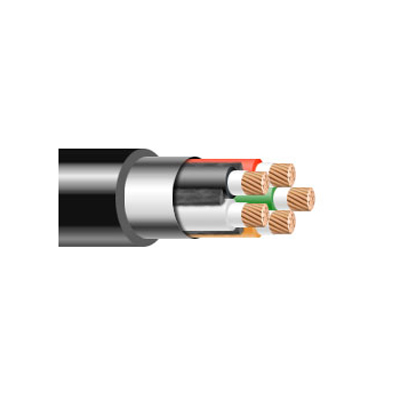

What is 12/24 SOOW Portable Power Cable ?
12/24 SOOW Portable Power Cable is part of our Power Cables & Portable Cord line of Wire & Cable. 12/24 SOOW Portable Cable is composed of 24 bare copper conductors with a 65/30 stranding, an ethylene propylene diene monomer rubber (EPDM) insulation, and a chlorinated polyethylene (CPE) jacket. These cables are rated for a voltage of 600 volts, an amperage of 9 amps, have a temperature range of -40°C to 90°C, and weighs approximately 12262 lbs/MFT.
Inside 12/24 SOOW Portable Cable is normally another type of insulating material. It's EPDM (ethylene propylene diene monomer) or EP (ethylene propylene) rubber. These types of materials are part of the thermoset group of insulations. Through the thermoset process, the materials are literally squeezed onto the wires and then with heat and pressure become one with them. That means the insulation will never fade even if it's placed under extreme heat or other situations.
12/24 SOOW Portable Cord Specifications:
|
AWG Size |
12 |
|
No. of Cond. |
24 |
|
Conductor Stranding |
65/30 |
|
No. of Strands |
65 |
|
Strand Size |
30 |
|
Nom. Insul. Thick. (in) |
0.045 |
|
Jacket Thick |
0.125 |
|
Nom. O.D. of Cable (in) |
1.35 |
|
Amps |
9 |
|
Approx LBS/MFT |
1226 |
|
UL Style |
1015 |
|
CSA Type |
TEW |
|
Voltage |
150 |
|
Max. Temp |
90°C |
|
Cond. Material |
Bare Copper |
|
Insul. Material |
Ethylene Propylene Diene Monomer Rubber (EPDM) |
|
Jacket Material |
Chlorinated Polyethylene (CPE) |
|
Jacket Color |
Gray |
12/24 SOOW Portable Cable Features:
600V Voltage Rating
Bare Annealed Copper Conductors
EPDM Insulation
Thermoset CPE Jacket
Rated -40 to 90°C
Excellent resistance to oil, water and moisture
Sunlight resistant
Good tensile strength, elongation and aging characteristics
Highly flexible
12/24 SOOW Portable Cord Applications
With 12/24 SOOW Portable Cord high flexibility and resistance to the effects of abrasion, chemicals, weather, and extended periods of sunlight, it is recommended for use as portable electrical power and portable control wire cable carrying voltage of up to 600 volts. The durable structure lends SOOW wiring to heavy-duty cable service applications including the following:
Control circuits
Tools
Heavy industrial, processing and construction equipment
12/24 SOOW Portable Cord Standards:
UL Flexible Cord - UL Subject 62
CSA Flexible Cord - C22.2-49
MSHA Approved
RoHS Compliant
12/24 SOOW Portable Cord Why Choose HuaDong ?
Huadong Cable Group as a special 12/24 SOOW Portable Cord factory in China, We not only have over 30 years of production experience and 15 years of export experience in 12/24 SOOW Portable Cord, but also we have 15 senior engineers, they can free design the 12/24 SOOW Portable Cable size according to client’s requirement. We produce soow &sow cable with high quality material. Every 12/24 SOOW Portable Cable process has been strictly checked by our professional technical engineers
Our 12/24 SOOW Portable Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
