1000mm Single Core AWA Armoured Cable

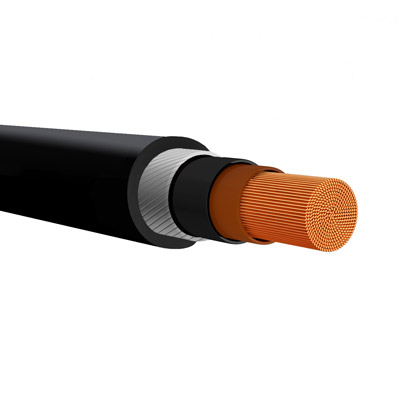

1000mm Single Core AWA Armoured Cable

  • Brand Name: HuaDong Cable
  • Name: 1000mm single core awa armoured cable
  • Armour: Aluminium wire armoured
  • Conductor: Stranded Plain Annealed Compacted Circular Copper Conductors
  • Insulation: Cross-Linked Polyethylene (XLPE)
  • Temperature Rating:-25°C to +90°C
  • Voltage Grade: 600V / 1000V
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 1000mm Single Core AWA Armoured Cable ?


1000mm Single Core AWA Armoured Cable is used in single-core cable. When the electric current goes through the cord, a magnetic field is produced in the steel armour. This can possibly cause overheating in the AC system, which means a disaster in the worst case. Since aluminum is non-magnetic, the AWA cable non-magnetic aluminum armour can avoid this kind of electric fault.
Meanwhile, the armoure offers extra protection for the AWA cable, which allows the AWA cable to withstand higher pulling loads.
AWA cable covers the voltage of 1.1KV XLPE cable, 11kV XLPE cable, and 33kv XLPE cable. Usually, AWA cable is found in underground systems and frameworks, power networks and cable ducting, outdoor and indoor installations, power control systems.



1000mm Single Core AWA Armoured Cable Specifications


Approx overall diameter (approximate size) 58.8mm
Approx weight per meter 11.27 Kg
Armour / Protection Aluminium wire armoured
Bedding PVC (Polyvinyl-Chloride)
Colour Black
Insulation Cross-Linked Polyethylene (XLPE)
Operating temperature -15 degrees to +90 degrees
Product Code 1000mm single core armoured
Number of cores / size of cable 1000mm x 1
Voltage 600 / 1000V




1000mm Single Core AWA Armoured Cable Application


1000mm Single Core AWA Armoured Cable is often used for external use such as direct burial, outdoors or underground, which is likely to cause damage to the low voltage power cables. The construction of AWA cable provides additional mechanical protection to the SWA cable itself. The armour can reduce the risk of the cable getting torn or pinched. Meanwhile, the aluminum is used to protect the AWA cable from overheating in the AC system.



1000mm Single Core AWA Armoured Cable why choose HuaDong?


Huadong Cable Group as a AWA Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in AWA Cable, but also we have 15 senior engineers, they can free design the 1000mm Single Core AWA Armoured Cable size according to client’s requirement.
Our AWA Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.





For the best 1000mm Single Core AWA Armoured Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
