Duplex Cable

Service Drop Wire Philippines

Service Drop Wire Philippines

  • Brand Name: HuaDong Cable
  • Name: Service Drop Wire Philippines
  • Conductors: 1350-H19 Aluminum Conductor
  • Insulation: cross linked polyethylene (XLPE)
  • Temp. Range: Max 90ºC
  • Email: huadong@hdcablegroup.com
  • Discount Price

Service drop wire is an essential component of any electrical system, providing the necessary connection between a structure and the utility distribution pole. It is composed of two insulated power conductors and a bare, stranded messenger wire, which provides support to the conductors while also acting as a grounding element. Service drop wire 6 is used in a variety of applications, from residential service to commercial and industrial projects. Its flexibility, durability and superior performance make it an ideal solution for any electrical system.

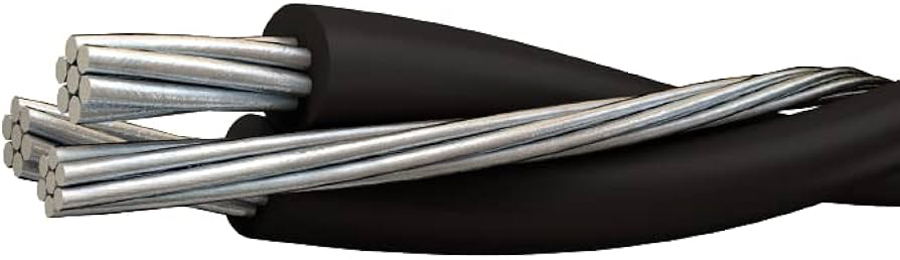

Service Drop Wire

Service Drop Wire Feature


One key feature of service drop wire 6 is its ability to withstand high temperatures. This ensures that the wire can handle higher levels of current without being affected by extreme weather conditions. The insulation on the wires also helps protect them from corrosion, thus increasing their lifespan and reliability. Additionally, service drop wire 4 are designed with sufficient flexibility so as not to be easily damaged when bent or twisted during installation.

In terms of size, service drop wires are available in different sizes depending on your needs and budget. The size can range from 4 AWG (American Wire Gauge) for light-duty jobs up to 1000 MCM (1000 circular mils) for heavier loads. In the Philippines, sizes range from 8 AWG up to 600 MCM depending on local regulations.

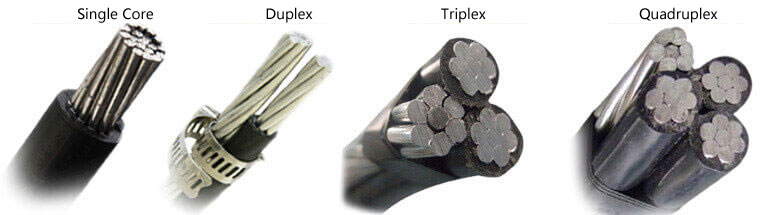

Service Drop Wire Size

Service Drop Wire Size Philippines


Service drop wire consists of three insulated conductors (usually copper) in a single sheath, and it is designed to be buried underground or suspended from poles. The size of the service drop wire 6 depends on the amount of current being carried as well as the distance between the source and destination. In the Philippines, service drop wires sizes range from 4 AWG to 2 AWG for residential applications, and 8 AWG to 2/0 AWG for commercial applications. The larger sizes are used for longer distances and higher voltages.

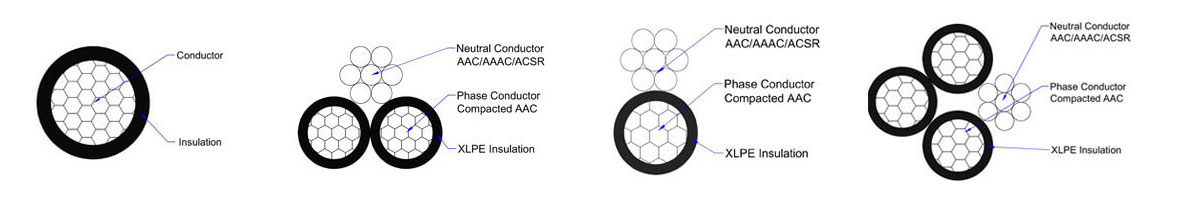

Service Drop Wire Structure

Duplex Service Drop Size
Code Word Phase Conductors Bare Neutral Weight per 1000 (lbs) Rating (AMPS)
Size AWG Strand Insulation Thickness (MLS) Size AWG Strand Breaking Strength (lbs) XLP Poly XLP Poly
Peakingese 6 AWG Solid 45 6 7/w 563 63.5 61.7 85 70
Collie 6 AWG 7/w 45 6 7/w 563 66.8 63.1 85 70
Dachshund 4 AWG Solid 45 4 7/w 881 95.5 93.4 110 90
Spaniel 4 AWG 7/w 45 4 7/w 881 100.5 95.4 110 90
Doberman 2 AWG 7/w 45 2 7/w 1350 152.7 145.7 150 120
Malamute 1/0 AWG 19/w 60 1/0 7/w 1990 242.6 234.2 205 160

Triplex Service Drop Size
Code Word Phase Conductors Bare Neutral Weight per 1000 (lbs) Rating (AMPS)
Size AWG Strand Insulation Thickness (MLS) Size AWG Strand Breaking Strength (lbs) XLP Poly XLP Poly
Minex 6 AWG Solid 45 6 7 1110 106.6 102.9 85 70
Hippa 6 AWG 7/w 45 6 7 1110 107 105.7 85 70
Prawn 4 AWG Solid 45 4 7 1760 158.4 154.1 110 90
Barnacles 4 AWG 7/w 45 4 7 1760 160 157 110 90
Shrimp 2 AWG 7/w 45 2 7 2800 243 238 150 115
Gammarus 1/0 AWG 7/w 60 1/0 7 4460 390 384 200 155
Leda 1/0 AWG 19/w 60 1/0 7 4460 384 378 200 155
Dungenese 2/0 AWG 7/w 60 2/0 7 5390 481 474 230 180
Cyclops 2/0 AWG 19/w 60 2/0 7 5390 473 467 230 180
Flustra 3/0 AWG 19/w 60 3/0 7 6790 596 589.1 260 205
Lepas 4/0 AWG 19/w 60 4/0 7 8560 725 716 300 235

Quadruplex Service Drop Size
Code Word Phase Conductors Bare Neutral Weight per 1000 (lbs) Rating (AMPS)
Size AWG Strand Insulation Thickness (MLS) Size AWG Strand Breaking Strength (lbs) XLP Poly XLP Poly
Morochuca 6 AWG Solid 45 6 6/1 1190 152 147 75 60
Chola 6 AWG 7/w 45 6 6/1 1190 162 151 75 60
Morgan 4 AWG Solid 45 4 6/1 1860 226 220 100 80
Hackney 4 AWG 7/w 45 4 6/1 1860 241 226 100 80
Palomino 2 AWG 7/w 45 2 6/1 2850 362 342 135 105
Costena 1/0 AWG 19/w 60 1/0 6/1 4380 575 550 180 135
Grullo 2/0 AWG 19/w 60 2/0 6/1 5310 707 678 205 155
Suffolk 3/0 AWG 19/w 60 3/0 6/1 6620 872 838 235 180
Appaloosa 4/0 AWG 19/w 60 4/0 6/1 8350 1079 1039 270 205
Bronco 336.4 MCM 19/w 60 336.4 18/1 8580 1613 1568 330 240
Gelding 336.4 MCM 19/w 60 4/0 6/1 8350 1548 1494 330 240

Service Drop Wire Price


Service drop wire is a type of electrical wire used for distributing electricity from the main power source to other points. It is designed to be resistant to UV rays, moisture, and corrosion. Service drop wire 6 comes in various sizes and configurations to accommodate different requirements. The price for service drop wire can vary depending on the size and type of wire needed.

For applications that need greater resistance from weathering, a more expensive rubber-sheathed, aluminum-clad service drop wire 6 may be required. This type of service drop wire 4 is more durable against extreme temperatures and humidity levels, making it suitable for outdoor use in areas prone to storms or other inclement weather conditions.  For applications that require greater flexibility in their design or require a large area covered with wires, vinyl-covered aluminum conductors may be considered as an option instead of regular service drop wires. Vinyl-covered aluminum conductors are generally much cheaper than rubber-sheathed aluminum clad wires. This type of service drop wire 4 is also much lighter than traditional wires and can be easier to install in overhead installations without the need for additional support structures like guy wires or poles.

6 awg service drop wire

Overall, when considering installation costs for service drop wires, it is important to keep in mind that the quality and durability of the materials used will have an impact on final prices as well as how long they last before needing replacement or repairs. As such, it pays off to invest in higher quality materials so as to ensure a longer lasting product that will save you money over time due to fewer repairs or replacements required throughout its life span.


In conclusion, service drop wire is an important feature of electrical installations as it provides a reliable connection from the utility's power lines to the customer’s premises. It comes in various sizes that can be customised based on the needs of each individual installation, and its price can vary depending on type and size. With its wide range of features, it is an essential component for ensuring safe and efficient electrical systems.
