GYTY53 Fiber Optic Cable

144 Core GYTY53 Fiber Optic Cable

144 Core GYTY53 Fiber Optic Cable

  • Brand Name: HuaDong Cable
  • Name: 144 core gyty53 fiber optic cable
  • Application: Duct and Aerial, Direct Buried
  • Operating Temperature : -40 ~ +60 C
  • Cores: -Up to 144 fiber cores
  • Jacket: PE material
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 144 Core GYTY53 Fiber Optic Cable

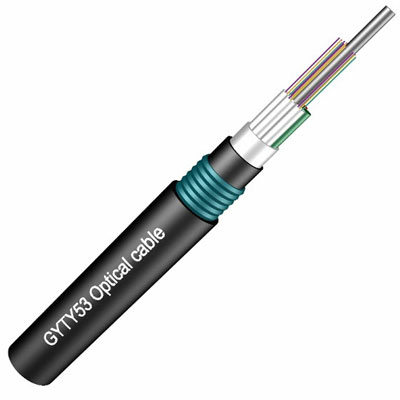

Fiber optic cable GYTY53, 2~144 fibers, central strength member (steel), jelly filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. It is found in two different types: single mode GYTY53 cable and multimode GYTY53 cables.144 Core GYTY53 Fiber Optic Cable is stranded loose tube structure with steel tape double sheaths, the loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress. 144 Core GYTY53 Fiber Optic Cable is steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance. Metal strength member provides excellent strain performance.GYTY53 is available from 2 cores to 144 cores.



144 Core GYTY53 Fiber Optic Cable Features


Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay
Operating Temperature : -40 ~ +60 ℃
Steel wire strength.filler protect tube fiber.steel tape armord.
Good ultra violet radiation resistant property.



144 Core GYTY53 Fiber Optic Cable Applications


Laying modes: Direct Buried
Long-distance communication, local trunk line, CATV & computer networks system
Adopted to Outdoor distribution
Suitable for aerial duct and buried method
GYTY53 fiber optic cable is a great fiber cable. Despite being in the market for duration of three years, GYTY53 fiber optic cable demand is high exceeding the supply. Therefore, there is need to increase the production level of this type of the cable. Consequently, numerous features and characteristics of this type of fiber cable are critically discussed by this blog. Additionally, its cost has been favorable across the market and therefore, most of the users can afford it without much financial strain.


144 Core GYTY53 Fiber Optic Cable why choose HuaDong?


Huadong Cable Group as a special 144 Core GYTY53 Fiber Optic Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in 144 Core GYTY53 Fiber Optic Cable, but also we have 15 senior engineers, they can free design the GYTY53 Fiber Optic Cable size according to client’s requirement.
Our 144 Core GYTY53 Fiber Optic Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.




For the best 144 Core GYTY53 Fiber Optic Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
