10-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor 600V Feature
Withstands rugged environmental conditions
Offers enhanced lightning and surge protection
Reduced EMI/RF interference

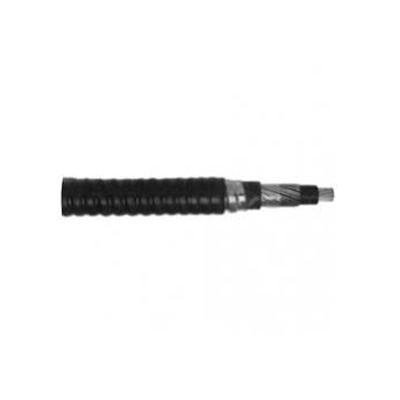

10-4C w/ Ground Teck 90 Cable Consists:
TECK 90 cable consists of 3 layers:
Black PVC outer jacket
Silver armored jacket
Core cable with individual stranded conductors
10-4C w/ Ground Teck 90 Cable Specifications:
Size: 10 AWG
Number of Conductors: 4
Ground Wire Size: 12 AWG
Approx Diameter Inner Jacket: 0.600 inches
Approx Armor Diameter: 0.800 inches
Approx Diameter Outer Jacket: 0.910 inches
Net Weight: 0.388 lbs per ft
10-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor 600V Application:
10-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor is for use in power, control and lighting circuits at industrial and chemical plants, pulp and paper mills, steel mills, mines, power generating facilities, food processing plants and commercial centers. Teck 90 is suitable for installation in wet or dry locations in troughs, trays and in direct burial applications. Teck 90 is for applications up to 1000 volts and temperatures from -40°C to +90°C.
10-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor 600V why choose HuaDong?
Huadong Cable Group as a special Teck 90 Cable, Aluminum Interlocked Armor factory in China, We not only have over 30 years of production experience and 15 years of export experience in 10-4C w/ Ground Teck 90 Cable, but also we have 15 senior engineers, they can free design the Teck 90 Cable size according to client’s requirement.
Our 10-4C w/ Ground Teck 90 Cable, Aluminum Interlocked Armor 600V export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
For the best 10-4C w/ Ground Teck 90 Cable Aluminum Interlocked Armor 600V price， Please feel free to leave your requirement, We will reply you in 12 hours.
