Tree Wire

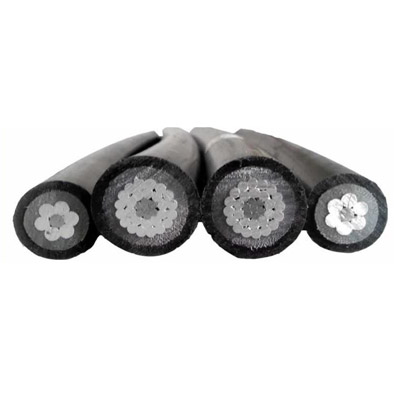

2-Layer 15kV AAC Tree Wire

2-Layer 15kV AAC Tree Wire

  • Brand Name: HuaDong Cable
  • Name: 2-layer 15kv aac tree wire
  • Standard: ASTM B230, B231, B232, B398, B399, B400
  • Conductor: ACSR or AAC
  • Insulation: XLPE / LDPE / HDPE
  • Voltage Grade: 15kV / 25kV / 35kV
  • Email: huadong@hdcablegroup.com
  • Discount Price

2-Layer 15kV AAC Tree Wire Construction


2-Layer 15kV AAC Tree Wire Conductors are concentrically stranded, ACSR, either compressed or full compact depending on conductor size, AAAC AAC or ACSR. Available with high-density track-resistant polyethylene (HDTRPE) or Track-Resistant Crosslinked Polyethylene (XLPE) covering.

2-Layer 15kV AAC Tree Wire Specifications:


Size (AWG or kcmil) Stranding Conductor Diameter (mils) Covering Thickness (mils) Cable O.D. (mils) Rated Strength (lbs) Weight per 1000 ft.(lbs)
  Inner Layer Outer Layer
1/0 7 336 75 75 636 1791 196
2/0 7 376 75 75 676 2259 230
3/0 7 423 75 75 723 2736 272
4/0 7 475 75 75 775 3447 325
266.8 19 537 75 75 837 4473 387
336.4 19 603 75 75 903 5535 466
397.5 19 659 75 75 959 6399 535
477 19 722 75 75 1022 7524 623
556.5 37 780 75 75 1080 8946 708
636 37 835 75 75 1135 10260 794



2-Layer 15kV AAC Tree Wire Application


2-Layer 15kV AAC Tree Wire Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor; however, covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors in such close proximity.
The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation; particularly useful in congested areas such as alleyways or tight corridors.


2-Layer 15kV AAC Tree Wire why choose HuaDong?


Huadong Cable Group as a special 2-Layer 15kV AAC Tree Wire factory in China, We not only have over 30 years of production experience and 15 years of export experience in 2-Layer 15kV AAC Tree Wire, but also we have 15 senior engineers, they can free design the Tree Wire size according to client’s requirement.

Our 2-Layer 15kV AAC Tree Wire export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.



Any cable inquiry please feel free to contact us.
