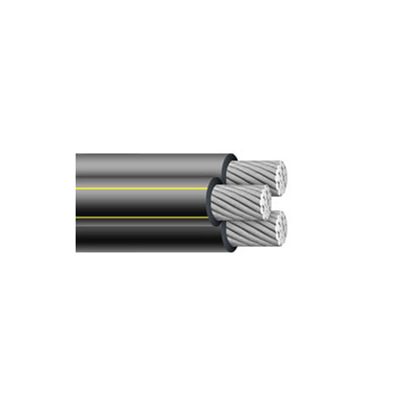

4-4-4 Vassar Triplex URD Cable Description:
4-4-4 Vassar Triplex URD Cable Cable is designed for use in secondary distribution circuits, where installed in duct or direct burial applications. Maximum operating temperature is not to exceed 90°C in wet and dry locations. Voltage rating is 600 volts. As an option, this cable can provided pre-pulled into duct.
Also Known As: 4-4-4 vassar aluminum urd cable, 4-4-4 vassar urd direct burial cable, 4-4-4 vassar three conductor cable, 4-4-4 vassar tri plex wire, 4-4-4 vassar triplex cable, 4-4-4 vassar triplex aluminum underground wire, 4-4-4 vassar 3 conductor power cable, 4-4-4 vassar aluminum triplex, 4-4-4 vassar underground triplex, 4-4-4 vassar triplex underground cable, 4-4-4 vassar triplex wire underground, 4-4-4 vassar direct burial triplex, 4-4-4 vassar triplex conductor, 4-4-4 vassar direct burial electrical cable, 4-4-4 vassar direct burial power cable, 4-4-4 vassar aluminum direct burial cable.
4-4-4 Vassar Triplex URD Cable Features:
• Lead free insulation
• Maximum temperature rating of 90°C
• Resistant to high temperatures and corrosion
• Tough insulation
• Two aluminum phase conductors
• Moisture and chemical resistant
4-4-4 Vassar Triplex URD Cable Specifications:
|
Phase Conductor Size AWG: |
4 |
|
Phase Conductor Stranding: |
7 |
|
Phase Conductor Insulation Thickness: |
60 Mls |
|
Base Neutral Messenger Size AWG: |
4 |
|
Base Neutral Strand: |
7 |
|
Diameter Single Phase Conductor (Mils): |
345 |
|
Diameter Complete Cable (O.D.) (Mils): |
745 |
|
Weight Per 1000ft Total (Lbs.): |
191 |
|
Allowable Ampacity 90C (Amps): |
125 |
|
Allowable Ampacity In Ducts (Amps): |
90 |
4-4-4 Vassar Triplex URD Cable Standards:
– UL 854: Service Entrance Cables
– ICEA S-105-692 Standard for 600 Volt Single Layer Thermoset Insulated Utility Underground Distribution Cables
4-4-4 Vassar Triplex URD Cable why choose HuaDong?
Huadong Cable Group as a special 4-4-4 Vassar Triplex URD Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in URD Cable, but also we have 15 senior engineers, they can free design the 4-4-4 Vassar Triplex URD Cable size according to client’s requirement.
Our 4-4-4 Vassar Triplex URD Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
For the best 4-4-4 Vassar Triplex Aluminum URD Direct Burial Cable price， Please feel free to leave your requirement, We will reply you in 12 hours.
