Type G Cable

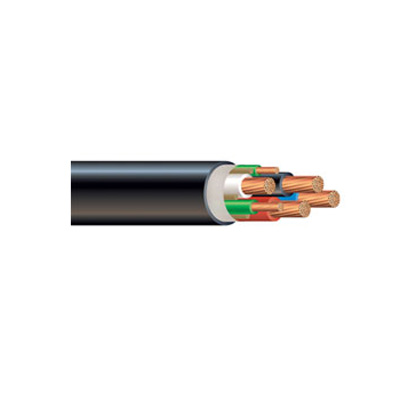

2 AWG 4 Conductor Type G PPE

2 AWG 4 Conductor Type G PPE

  • Brand Name: HuaDong Cable
  • Name: 2 awg 4 conductor type g ppe
  • Insulation: Ethylene propylene diene monomer (EPDM)
  • Jacket: CPE jacket with tough and highly resistant to abrasion
  • Conductor size ranges: 8 AWG to 500 MCM
  • Temperature: -40°C to 90°C
  • Voltage: 2000 volt
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 2 AWG 4 Conductor Type G PPE ?

2 AWG 4 Conductor Type G PPE is used for portable power supply or in mining equipment that has a ground wire for every conductor within the cable is considered Type G cable. A 4 conductor type G cable would have 4 ground wires.
Type G cable can be used in a variety of heavy-duty applications including direct burial and submerged applications. All of our type G cables have 4 conductors and runs from 8 gauge to 500 MCM.  You can use this cable between -40°C to +90°C and is rated for up to 2000 volts.

2 AWG 4 Conductor Type G PPE Specifications :

Size: 2 AWG
Number of Conductors: 4
Conductor Strand: 259
Ground Conductor AWG Size: 4#9
Nominal Insulation Thickness: 0.060 inches
Outside Diameter: 1.368 inches
Net Weight: 1.5 lbs per ft


2 AWG 4 Conductor Type G PPE Applications

Mining equipment, cranes, conveyors, and mobile equipment
Excellent impact resistance
Withstands severe environmental conditions
Resistant to heat, acids, oil, moisture, and most chemicals

2 AWG 4 Conductor Type G PPE Compliances:

Rated 2000 volts, 90°C dry locations, 75°C wet locations
Temperature -40°C to 90°C
UL and c(UL) Listed
MSHA approved
Meets FT-5 Flame Test and UL 1650

2 AWG 4 Conductor Type G PPE Why Choose HuaDong ?

Huadong Cable Group as a special Type G Round Portable Power Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in Type G Round Portable Power Cable, but also we have 15 senior engineers, they can free design the Type G Cable according to client’s requirement. We produce Type G Cable with high quality material. Every 2 AWG 4 Conductor Type G PPE process has been strictly checked by our professional technical engineers
Our Type G Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.

For the best 2 AWG 4 Conductor Type G PPE price, Please feel free to leave your requirement, We will reply you in 12 hours.
