AAAC Conductor

652.4 mcm elgin aaac cable

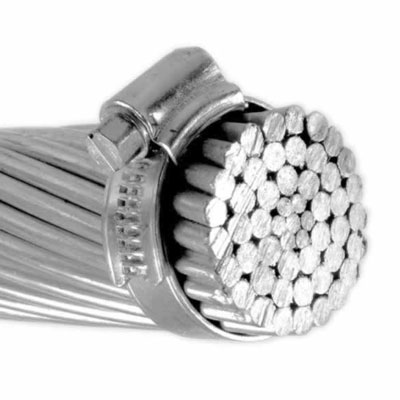

652.4 MCM Elgin AAAC All Aluminum Alloy Conductor

  • Brand Name: HuaDong Cable
  • Product Name:652.4 mcm elgin aaac cable
  • Conductor Material: All Aluminum Alloy Conductor
  • Standard: IEC, BS, ICEA, ASTM, DIN and other standards
  • Application: Overhead, Overhead Transmission
  • Email: huadong@hdcablegroup.com
  • Discount Price

652.4 MCM Elgin AAAC Cable Applications:


652.4 MCM Elgin AAAC Cable All Aluminum Alloy Conductor is a bare conductor used for overhead transmission as well as for primary and secondary distribution.652.4 MCM Elgin AAAC Cable are used as a bare conductor cable on aerial circuits that require a larger mechanical resistance than the AAC and a better corrosion resistance than the ACSR. The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR. Capable of handling extremely high voltages, this overhead transmission wire is also preferred in scenarios when heavy ampacity is needed.  This cable is most ideal for high voltage use in coastal areas, or areas with high winds or frequent storms.


652.4 MCM Elgin AAAC Cable Specifications:


Size KCM: 652.4
Strands: 19
Approx. EC Cond. with Equivalent Resistance: 556.5
Diameter Inches: Indiv. Wire O.D: 0.1853
Diameter Inches: Comp. Cable: 0.9270
Cross Sectional Area (sq. inches): 0.5124
New Weight lb/1000FT: 612.4
Rated Strength (lbs.): 21,900
Ampacity: 729 Amps


652.4 MCM Elgin AAAC Cable Features


high strength to weight ratio
better sag characteristics
improved electrical properties
excellent resistance to corrosion


652.4 MCM Elgin AAAC Cable Standards:


ASTM B-398:  Aluminum Alloy 6201-T81 aluminum alloy conductors
ASTM B-399:  Concentric Lay stranded 6201-T81 aluminum alloy conductors


652.4 MCM Elgin AAAC Cable Construction:


Conductors: 6201-T81 aluminum alloy conductors.  6201-T81 aluminum alloy is a high strength aluminum alloy for added durability and reduced sag when stranded overhead.  6201-T81 aluminum alloy is also more resistant to abrasion than 1350-H19 aluminum.
Stranding: Helically stranded.
Ampacity: Medium to high voltages.


652.4 MCM Elgin AAAC Cable why choose HuaDong?


As a professional 652.4 MCM Elgin AAAC Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our 652.4 MCM Elgin AAAC Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.

For the best 652.4 mcm elgin aaac cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
