AAC Conductor

2500 mcm lupine aac cable

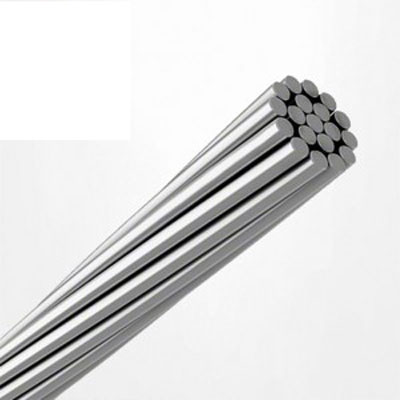

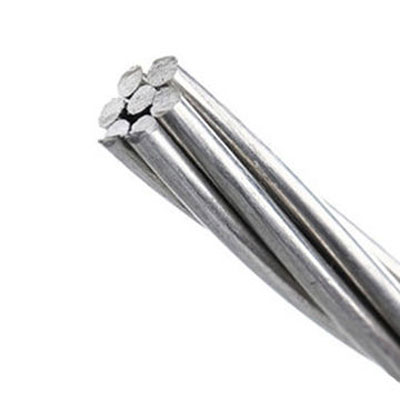

2500 MCM Lupine AAC All Aluminum Conductor

  • Brand Name: HuaDong Cable
  • Product Name:2500 mcm lupine aac cable
  • Conductor Material: All Aluminum Conductor
  • Standard: IEC, BS, ICEA, ASTM, DIN and other standards
  • Application: Overhead, Overhead Transmission
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 2500 MCM Lupine AAC Cable ?


2500 MCM Lupine AAC Cable is manufactured from electrolytically refined (E.C.GRADE) aluminium, having purity of minimum 99.5% of aluminium. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. These conductors are also used extensively in costal because it has a very high degree of corrosion resistance


2500 MCM Lupine AAC Cable Specifications:


Size AWG: 2500
Stranding: 91
Stranding Class: A
Diameter Individual Wire Aluminum (Inches): 0.1657
Diameter Complete Cable (O.D.) (Inches): 1.823
Cross Sectional Area (Sq. Inches): 1.964
Weight Per 1000ft Total (Lbs.): 2370
Rated Breaking Strength (Lbs.): 41900
Resistance DC 20°C Per 1000ft: 0.00698
Resistance DC 75°C Per 1000ft: 0.00969
Allowable Ampacity 90C (Amps): 1706 Amps

2500 MCM Lupine AAC Cable Application


2500 MCM Lupine AAC Cable can be used in low and medium voltage overhead lines. It’s commonly used in urban areas because of its ability to carry significant voltages over short distances. The long-lasting, corrosion resistant qualities of aluminum make this conductor a popular choice for use in coastal areas as well as for use in the railway and subway industries. Shipyards and offshore construction sites benefit from the conductor’s durability.2500 MCM Lupine AAC Cable can be used for most overhead transmission duties when conductor strength is not a factor. The conductor can also be used for primary and secondary distribution applications.
AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.


2500 MCM Lupine AAC Cable Standards:


ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B 231: Concentric Lay Stranded Aluminum 1350 Conductors.


2500 MCM Lupine AAC Cable why choose HuaDong?


As a professional 2500 MCM Lupine AAC Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our 2500 MCM Lupine AAC Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.



For the best 2500 mcm lupine aac cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
