AAC Conductor

500 mcm zinnia aac cable

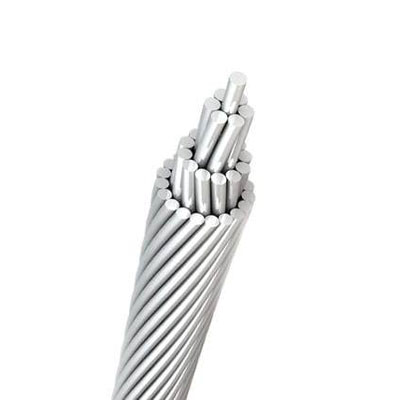

500 MCM Zinnia AAC All Aluminum Conductor

  • Brand Name: HuaDong Cable
  • Product Name:500 mcm zinnia aac cable
  • Conductor Material: All Aluminum Conductor
  • Standard: IEC, BS, ICEA, ASTM, DIN and other standards
  • Application: Overhead, Overhead Transmission
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 500 MCM Zinnia AAC Cable ?


500 MCM Zinnia AAC Cable is manufactured from electrolytically refined (E.C.GRADE) aluminium, having purity of minimum 99.5% of aluminium. All aluminium conductors are made up of one or more strands of aluminium wire depending on the end usage. These conductors are also used extensively in costal because it has a very high degree of corrosion resistance


500 MCM Zinnia AAC Cable Specifications:


Size AWG: 500
Stranding: 19
Stranding Class: AA
Diameter Individual Wire Aluminum (Inches): 0.1622
Diameter Complete Cable (O.D.) (Inches): 0.811
Cross Sectional Area (Sq. Inches): 0.3927
Weight Per 1000ft Total (Lbs.): 469.4
Rated Breaking Strength (Lbs.): 8760
Resistance DC 20°C Per 1000ft: 0.0346
Resistance DC 75°C Per 1000ft: 0.0425
Allowable Ampacity 90C (Amps): 658 Amps

500 MCM Zinnia AAC Cable Application


500 MCM Zinnia AAC Cable can be used in low and medium voltage overhead lines. It’s commonly used in urban areas because of its ability to carry significant voltages over short distances. The long-lasting, corrosion resistant qualities of aluminum make this conductor a popular choice for use in coastal areas as well as for use in the railway and subway industries. Shipyards and offshore construction sites benefit from the conductor’s durability.500 MCM Zinnia AAC Cable can be used for most overhead transmission duties when conductor strength is not a factor. The conductor can also be used for primary and secondary distribution applications.
AAC (all aluminum conductor) is the most economical bare overhead conductor due to its lighter weight. It offers easier handling during installation and use of simpler fittings. The wire is corrosion resistant due to its homogeneous construction.


500 MCM Zinnia AAC Cable Standards:


ASTM B-230: Aluminum 1350-H19 wire for electrical purposes.
ASTM B 231: Concentric Lay Stranded Aluminum 1350 Conductors.


500 MCM Zinnia AAC Cable why choose HuaDong?


As a professional 500 MCM Zinnia AAC Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our 500 MCM Zinnia AAC Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
