Armoured Cable Sizes

50mm armoured cable

50mm Armoured Cable

  • Brand Name: HuaDong Cable
  • Voltage: up to 35 KV
  • Conductors: Plain Annealed Stranded Copper
  • Insulation: Cross-Linked Polyethylene (XLPE)/PVC
  • Core identification: Brown, Black, Grey & Blue
  • Sheath / Jacket: PVC; Color: Black
  • Email: huadong@hdcablegroup.com
  • Discount Price

50mm Armoured Cable Features:


50mm Armoured Cable is a power and auxiliary control cable, designed for use in mains supply electricity. Used for underground systems, cable networks, power networks, outdoor and indoor applications, and cable ducting.


What is the type of 50mm Armoured Cable ?

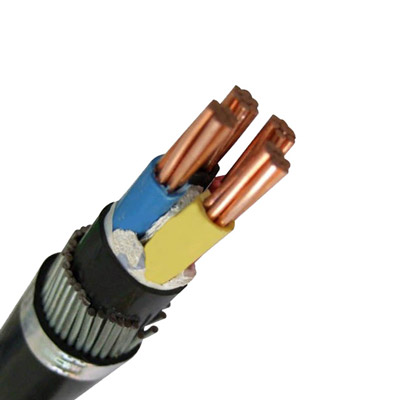

50mm Armoured Cable Construction:


Conductor: consists of plain stranded copper (cables are classified to indicate the degree of flexibility. Class 2 refers to rigid stranded copper conductors as stipulated by British Standard BS EN 60228:2005)
Insulation: Cross-linked polyethylene (XLPE) is used in a number of power cables because it has good water resistance and excellent electrical properties. Insulation in cables ensures that conductors and other metal substances do not come into contact with each other.
Bedding: Polyvinyl chloride (PVC) bedding is used to provide a protective boundary between inner and outer layers of the cable.
Armour: Steel wire armour provides mechanical protection, which means the cable can withstand higher stresses, be buried directly and used in external or underground projects. The armouring is normally connected to earth and can also be used as the circuit protective conductor (“earth wire”) for the equipment supplied by cable.
Sheath: a black PVC sheath holds all components of the cable together and provides additional protection from external stresses.


50mm Armoured Cable Advantages:


50mm Armoured Cable material is often hard enough to protect the inner cable from damage. And armored cable for sale also flexible for a variety of applications. There are a number of advantages that come with using armored cables:
Armoured cables have high-temperature resistance.
Armoured cables can withstand stronger mechanical forces and prevent damage from external forces.
Strong anti-electromagnetic interference capability, improve the stability of power transmission


50mm Armoured Cable why choose HuaDong?


Huadong Cable Group as a special 50mm Armoured Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in 50mm Armoured Cable, but also we have 15 senior engineers, they can free design the 50mm Armoured Cable size according to client’s requirement.
Our 50mm Armoured Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.

For the best 50mm armoured cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
