H07RN F 3G Cable

H07RN-F 3G35

H07RN-F 3G35

  • Brand Name: HuaDong Cable
  • Name: h07rn-f 3g35
  • Cable Type: Rubber power and control cable
  • Number of Conductors: 3
  • Temperature range: -25°C to +60°
  • Nominal Voltage: 450 / 750 V
  • Email: huadong@hdcablegroup.com
  • Discount Price

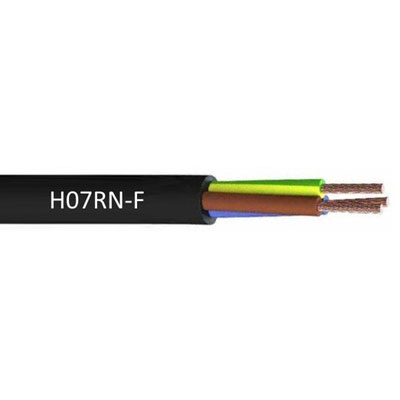

What is H07RN-F 3G35 Rubber Cable?


What is h07rn-f 3g35 rubber cable ? 3G means this cable have 3 cores and 35 means the conductor of the cross section is 35mm2. H07RN-F 3G35 flexible rubber cable is a heavy duty, flexible rubber trailing cable for power supply with a rated voltage of 450/750V, offering high flexibility and withstanding chemical, mechanical and thermal stress. It is suitable for applications such as handling equipment, mobile power supplies, construction sites, stage and audio-visual equipment, dock areas and dams. H07RN-F 3G35 cable as part of flexible rubber cables. The tough rubber jacket also makes this cable suitable for use in drainage and water treatment, cold or refrigerated environments and harsh industrial environments.



H07RN-F 3G35 Rubber Cable Specifications:


Number of cores 3
Conductor cross-section 35mm²
Minimum outer diameter 29.3mm
Maximum outer diameter 37.1mm
Approximate weight 1760kg/km
Rated Voltage Uo/U (Um) 450 / 750 V
Voltage drop, single phase 1.21V/A.km
Permissible current rating in open air 185A




H07RN-F 3G35 Rubber Cable Application


Indoor or outdoor use to power mobile or fixed equipment such as mobile equipment on construction sites, pumps, portable tools, power machinery, cable reels, tension cables. Particularly recommended for explosive atmospheres. Cable particularly suitable for stripping force on automatic machines. Good performance in occasional contact with oil or grease.



H07RN-F Rubber Cable Core colours


2 cores (X) = Brown + Blue
3 cores (G) = Green-Yellow + Brown + Blue
3 cores (X) = Brown + Black + Grey
4 cores (G) = Green-Yellow + Brown + Black + Grey
4 cores (X) = Blue + Brown + Black + Grey
5 cores (G) = Green-Yellow + Blue + Brown +  Black + Grey
5 cores (X) =  Blue + Brown +  Black + Grey + Black



H07RN-F 3G35 Rubber Cable why choose HuaDong?


Huadong Cable Group as a special H07RN-F rubber cable factory in China, we have over 30 years production experience and 15 years export experience in Rubber Cable, we also have 15 senior engineers, they can freely design the H07RN-F rubber cable size according to customers' requirements.
Our H07RN-F 3G35 rubber cable export like South Africa, Philippines, Malaysia, Singapore, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, Nigeria, Iran etc.High quality service and production are waiting for you.




For the best H07RN-F 3G35 price, Please feel free to leave your requirement, We will reply you in 12 hours.
