Shielded Soow Cord

16/10 Shielded SOOW Portable Cable

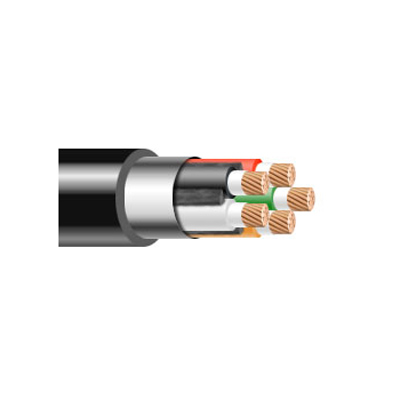

16/10 Shielded SOOW Portable Cable

  • Brand Name: HuaDong Cable
  • Name: 16/10 shielded soow portable cord
  • Shield: Overall Braid Shield
  • Shield Material: Tinned Copper Braid
  • Temp. Range: -40 to 90ºC
  • Size: 18 to 10 AWG
  • Conductors: 2 to 20 Conductors
  • Email: huadong@hdcablegroup.com
  • Discount Price

16/10 Shielded SOOW Portable Cord Features:


Excellent resistance to oil and moisture.
Good tensile strength, elongation and aging characteristics.
High flexibility. Excellent abrasion resistance.
Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use.
Temperature range: -40ºC to +90ºC


16/10 Shielded SOOW Portable Cable Specifications:


AWG Size 16
No. of Cond. 10
Conductor Stranding 26/30
No. of Strands 26
Strand Size 30
Min. Temp -40°C
Max. Temp 90°C
Cond. Material Tinned Copper
Insul. Material Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket Material Chlorinated Polyethylene (CPE)
Jacket Color Black
UL Style UL 62
CSA Type Standard 22.2 No. 49
Voltage 600V
Shield Overall Braid Shield
Shield Material Tinned Copper Braid
Shield Coverage 85%
Nom. Insul. Thick. (in) 0.03
Nom. O.D. of Cable (in) 0.660
Jacket Thick 0.08



16/10 Shielded SOOW Portable Cable Construction:


Conductor: Flexible, Stranded Tinned Copper (Class K)
Insulation: Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket: Chlorinated Polyethylene (CPE)
Jacket Color: Black
Shield: Tinned Copper Overall Braid Shield
Shield Coverage: 85%


16/10 Shielded SOOW Portable Cable Applications:


Shielded SOOW Cable is the weather, water, and sunlight resistant, so it may be used indoors or outdoors. This cable can also withstand shallow water (60°C max) submersion for up to 3 months.


16/10 Shielded SOOW Portable Cord Why Choose HuaDong ?


Huadong Cable Group as a special 16/10 Shielded SOOW Portable Cord factory in China, We not only have over 30 years of production experience and 15 years of export experience in 16/10 Shielded SOOW Portable Cable, but also we have 15 senior engineers, they can free design the 16/10 Shielded SOOW Portable Cable size according to client’s requirement. We produce SOOW cable with high quality material. Every 16/10 Shielded SOOW Portable Cord process has been strictly checked by our professional technical engineers
Our 16/10 Shielded SOOW Portable Cord export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers
