Shielded Soow Cord

18/5 Shielded SOOW Portable Cable

18/5 Shielded SOOW Portable Cable

  • Brand Name: HuaDong Cable
  • Name: 18/5 shielded soow portable cord
  • Shield: Overall Braid Shield
  • Shield Material: Tinned Copper Braid
  • Temp. Range: -40 to 90ºC
  • Size: 18 to 10 AWG
  • Conductors: 2 to 20 Conductors
  • Email: huadong@hdcablegroup.com
  • Discount Price

18/5 Shielded SOOW Portable Cord Features:


Excellent resistance to oil and moisture.
Good tensile strength, elongation and aging characteristics.
High flexibility. Excellent abrasion resistance.
Sunlight-resistant. UL Listed and CSA Certified for indoor and outdoor use.
Temperature range: -40ºC to +90ºC


18/5 Shielded SOOW Portable Cable Specifications:


AWG Size 18
No. of Cond. 5
Conductor Stranding 16/30
No. of Strands 16
Strand Size 30
Min. Temp -40°C
Max. Temp 90°C
Cond. Material Tinned Copper
Insul. Material Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket Material Chlorinated Polyethylene (CPE)
Jacket Color Black
UL Style UL 62
CSA Type Standard 22.2 No. 49
Voltage 600V
Shield Overall Braid Shield
Shield Material Tinned Copper Braid
Shield Coverage 85%
Nom. Insul. Thick. (in) 0.03
Nom. O.D. of Cable (in) 0.495
Jacket Thick 0.08

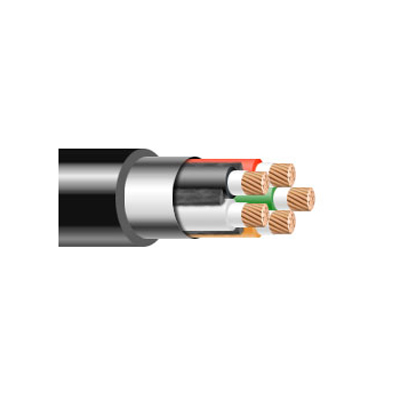

18/5 Shielded SOOW Portable Cable Construction:


Conductors:
Flexible Class K, Bunch stranded, Tinned Copper Conforming to ASTM B-33 & B-174
Insulation:
Premium-grade, color-coded 90ºC EPDM.
Shield:
Tinned Copper Braided shield with 85% coverage applied over cabled assembly


18/5 Shielded SOOW Portable Cord Standards:


• UL Flexible Cord - UL Subject 62
• CSA Flexible Cord - C22.2-49
• MSHA Approved
• RoHS Compliant
• OSHA Acceptable
• MSHA Flame Resistance - Mining Applications (P-136-MSHA)
• FT1 and FT2 Flame Test
• Federal Spec J-C-580B


18/5 Shielded SOOW Portable Cord Cable Why Choose HuaDong ?


Huadong Cable Group as a special 18/5 Shielded SOOW Portable Cord factory in China, We not only have over 30 years of production experience and 15 years of export experience in 18/5 Shielded SOOW Portable Cable, but also we have 15 senior engineers, they can free design the 18/5 Shielded SOOW Portable Cable size according to client’s requirement. We produce SOOW cable with high quality material. Every 18/5 Shielded SOOW Portable Cord process has been strictly checked by our professional technical engineers
Our 18/5 Shielded SOOW Portable Cord export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers

For the best 18/5 Shielded SOOW Portable Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
