Single Conductor Type W Portable Power Cable

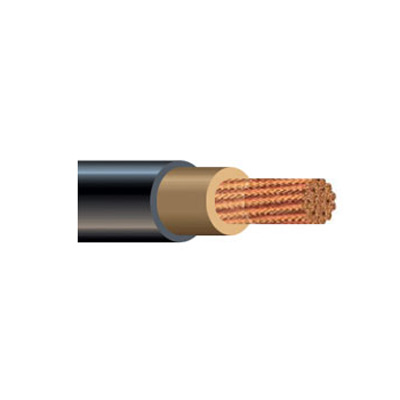

500 MCM 1 Conductor Type W Portable Power Cable

500 MCM 1 Conductor Type W Portable Power Cable

  • Brand Name: HuaDong Cable
  • Name: 500 mcm 1 conductor type w portable power cable
  • Conductor: Fully annealed stranded bare copper
  • Insulation: EP rubber insulation
  • Jacket: CPE rubber jacket
  • Temperature: -40°C to 90°C
  • Voltage: 2000 volt
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 500 MCM 1 Conductor Type W Portable Power Cable ?


500 MCM 1 Conductor Type W Portable Power Cable is constructed with rope stranded, annealed bare copper with separator to aid stripping. Insulation is oil and water resistant EPDM reinforced with cotton strip braid for mechanical strength. Black heavy duty, extra hard usage thermoset chlorinated polyethylene jacket resists oil and sunlight.


500 MCM 1 Conductor Type W Portable Power Cable Specifications :


AWG Size 500
Conductor Stranding 1235
No. of Strands 1235
Nom. O.D. (in) 1.31
Approx LBS/MFT 0
Nom. Insul. Thick. (in) 0.105
Amps 700
UL Style W
Min. Temp -40°C
Max. Temp 90°C
Cond. Material Bare Copper
Insul. Material Ethylene Propylene Diene Monomer Rubber (EPDM)
Jacket Material Chlorinated Polyethylene (CPE)



500 MCM 1 Conductor Type W Portable Power Cable Features :


8 AWG through 500 MCM rope stranded annealed bare copper
Separator between conductor and insulation aids stripping
Oil and water resistant EPDM insulation reinforced with cotton strip braid
Heavy Duty, extra hard usage thermoset CPE jacket
Resists oils, solvents, ozone, aging and abrasion
Excellent flexibility
600/2000V RHH/RHW-2
-40°C to 90°C wet or dry


500 MCM 1 Conductor Type W Portable Power Cable Applications:


500 MCM 1 Conductor Type W Portable Power Cable is suitable for use in industrial and light-to-medium mining applications, heavy-duty service, temporary power supply cables, motor, battery and generator leads. Also suitable for mobile and portable electrical equipment.



500 MCM 1 Conductor Type W Portable Power Cable Why Choose HuaDong ?


Huadong Cable Group as a special 500 MCM 1 Conductor Type W Portable Power Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in  Type W Cable, but also we have 15 senior engineers, they can free design the Type W Cable size according to client’s requirement. We produce Type W Cable with high quality material. Every Type W Cable process has been strictly checked by our professional technical engineers
Our 500 MCM 1 Conductor Type W Portable Power Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.





For the best 500 MCM 1 Conductor Type W Portable Power Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
