Type SHD-GC Cable


What is Type SHD-GC Cable


Type SHD-GC Cables are heavy-duty, portable power cables constructed for use in circuits not exceeding the rated voltage. Ideal for mining applications, our customers use our mining cable in their shuttle cars, longwall miners, horizontal and vertical power feeds, continuous miners, and mining pumps. Type SHD-GC cables are medium voltage cables rated for conductor temperatures up to 90°C.
Type SHD-GC mining cables are applicable in loaders, drills, conveyors, pumps, power supplies, and other mobile or stationary equipment requiring grounding conductors and a ground check conductor.


Type SHD-GC Cable Features


GROUND CHECK CONDUCTOR — Flexible tinned copper with polypropylene insulation.
INSULATION  — 90°C Ethylene Propylene Rubber (EPR) for superior resistance to impact and abrasion.
INSULATION SHIELDING — Tinned copper and color coded braided for extra resistance and flex life.
GROUND WIRES — Flexible tinned copper construction for extra flex life.
GROUND CHECK CONDUCTOR  — Heavy-duty construction made of flexible tinned copper with polypropylene insulation.


Type SHD-GC Cable Specifications :


  • 1 awg 3c type shd-gc shielded round portable power cable
  • 1/0 awg 3c type shd-gc shielded round portable power cable
  • 2 awg 3c type shd-gc shielded round portable power cable
  • 2/0 awg 3c type shd-gc shielded round portable power cable
  • 250 mcm 3c type shd-gc shielded round portable power cable
  • 3 awg 3c type shd-gc shielded round portable power cable
  • 3/0 awg 3c type shd-gc shielded round portable power cable
  • 300 mcm 3c type shd-gc shielded round portable power cable
  • 350 mcm 3c type shd-gc shielded round portable power cable
  • 4 awg 3c type shd-gc shielded round portable power cable
  • 4/0 awg 3c type shd-gc shielded round portable power cable
  • 500 mcm 3c type shd-gc shielded round portable power cable
  • 6 awg 3c type shd-gc shielded round portable power cable
  • enhanced thof 500 mcm 3c ship-to-shore power cable

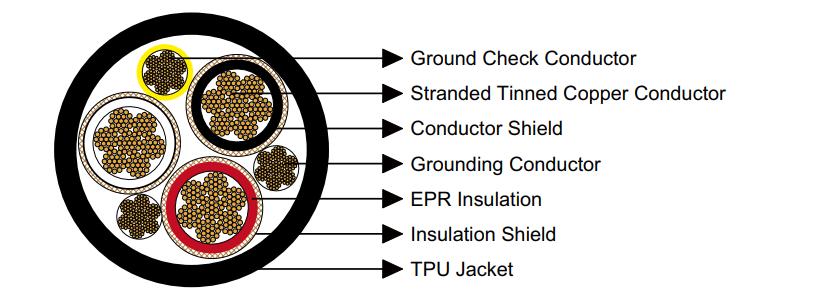

  • Type SHD-GC Cable Construction


    Conductors: Stranded annealed tinned copper conductor.
    Conductor Shield:Semi-conducting layer.
    Insulation:EPR.
    Insulation Shield:Non-conducting tape + Tinned copper/textile braid.
    Ground Check Conductor:Tinned copper with a yellow polypropylene insulation.
    Grounding Conductor:Tinned copper conductor.
    Sheath: Reinforced extra-heavy-duty Chlorinated Polyethylene(CPE), black. Other sheath materials can be offered upon request.


    Type SHD-GC Cable Why Choose HuaDong ?


    Huadong Cable Group as a special Type SHD-GC Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in Type SHD-GC Cable, but also we have 15 senior engineers, they can free design the Type SHD-GC cable size according to client’s requirement. We produce Type SHD-GC cable with high quality material. Every Type SHD-GC cable process has been strictly checked by our professional technical engineers
    Our Type SHD-GC Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.




    For the best Type SHD-GC Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
