SJEOOW Cable

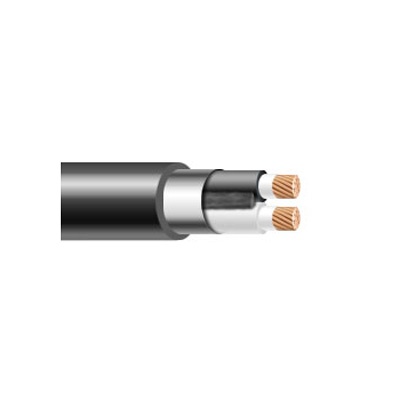

18/2 Gauge SJEOOW Portable and Power Cable

18/2 Gauge SJEOOW Portable and Power Cable

18/2 SJEOOW Portable Cord Features:


18/2 SJEOOW Portable Cord resists water, oils, solvents, sunlight, ozone, weather, and abrasion. It offers excellent flexibility and is UL Listed and CSA Certified.
Features non-wicking, lightweight polypropylene fillers
Suitable and approved for submersion in water


18/2 SJEOOW Portable Cable Specifications :


AWG Size 18
No. of Cond. 2
Conductor Stranding 16/30
No. of Strands 16
Strand Size 30
Nom. Insul. Thick. (in) 0.03
Nom. O.D. of Cable (in) 0.285
Approx LBS/MFT 37
Cond. Material Bare Copper
Insul. Material Thermoplastic Elastomer (TPE)
Jacket Material Thermoplastic Elastomer (TPE)
UL Style SJEOOW
CSA Type SJEOOW
Voltage 300
Amps 10
Min. Temp -50°C
Max. Temp 105°C



18/2 SJEOOW Portable Power Cable Construction :


18/2 SJEOOW Portable Cable has flexible stranded copper conductors, with colour-coded TPE rubber insulation cabled with fillers as needed. A separator is applied over conductors and fillers. Overall TPE Rubber jacket.


18/2 SJEOOW Portable Cord Standards:


UL Standard 62 for Flexible Cords
CSA Standard 22.2 No. 49 for Flexible Cords
MSHA flame resistance for mining applications
NEC Article 400
RoHS Compliant


18/2 SJEOOW Portable and Power Cable Why Choose HuaDong ?


Huadong Cable Group as a special 18/2 SJEOOW Portable Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in 18/2 SJEOOW Portable Cord, but also we have 15 senior engineers, they can free design the 18/2 SJEOOW Portable Cord size according to client’s requirement. We produce SJEOOW cable with high quality material. Every 18/2 SJEOOW Portable Cable process has been strictly checked by our professional technical engineers
Our 18/2 SJEOOW Portable Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
