Welding Cable Ampacities

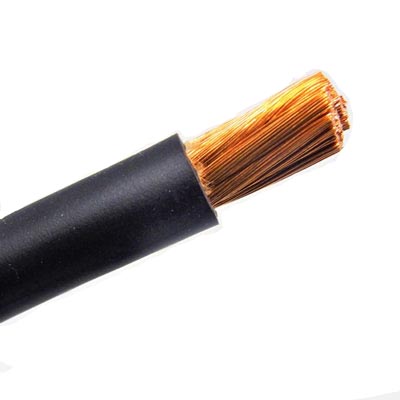

400 AMP Welding Cable

400 AMP Welding Cable

  • Brand Name: HuaDong Cable
  • Name: 400 amp welding cable
  • Conductor: Fully annealed stranded bare copper
  • Jacket: Ethylene Propylene Diene Monomer (EPDM)
  • Temperature: -40°C to 90°C
  • Voltage: 600 volt
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 400 AMP Welding Cable ?


400 AMP Welding Cable is made from stranded bundles of copper wire tightly packed and insulated. The wire stranding gives the cable more flexibility and resistance to wear, while the insulation (typically EPDM or Neoprene rubber) adds additional protection against the harsh environments found in welding applications and is more flexible than PVC or other rubber coatings.



400 AMP Welding Cable Features


• EPDM insulation provides outstanding cut, abrasion and slag resistance
• Resistant to oil, chemicals, water, ozone, & solvents
• Red, Orange, Blue,Black jacket
• Other colors available upon request


Welding Cable Ampacities


Required Cable Sizes:
For Arc Welding Cable Applications
Length in feet for total circuit* for secondary voltage

Amps 100’ 150’ 200’ 250’ 300’ 350’ 400’
100 4 4 2 2 1 1/0 1/0
150 4 2 1 1/0 2/0 3/0 3/0
200 2 1 1/0 2/0 3/0 4/0 4/0
250 1 1/0 2/0 3/0 4/0 - -
300 1/0 2/0 3/0 4/0 - - -
350 1/0 3/0 4/0 - - - -
400 2/0 3/0 - - - - -
450 2/0 4/0 - - - - -
500 3/0 4/0 - - - - -
550 3/0 4/0 - - - - -
600 4/0 - - - - - -




400 AMP Welding Cable Applications:


Secondary voltage resistance welding leads
Power supply applications not exceeding 600 volts A.C.
Battery Cable
Welding



400 AMP Welding Cable why choose HuaDong?


Huadong Cable Group as a special welding cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in welding cable, but also we have 15 senior engineers, they can free design the 400 AMP Welding Cable size according to client’s requirement.
Our 400 AMP Welding Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.





Any cable inquiry please feel free to contact us.
