YY Cable (YSLY / HSLH)

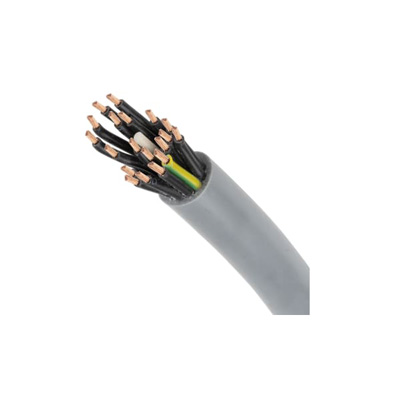

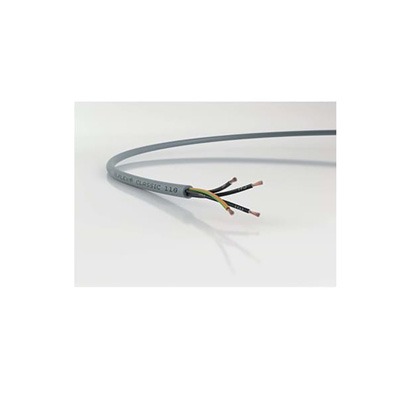

7 Core YY Control Cable

7 Core YY Control Cable

  • Brand Name: HuaDong Cable
  • Name: 7 core yy control cable
  • Conductor: Class 5 flexible annealed plain copper conductor
  • Insulation: YY PVC: PVC (Polyvinyl Chloride);
    YY LS0H:XPLE (Cross-Linked Polyethylene)
  • Sheath: YY PVC: PVC (Polyvinyl Chloride)
    YY LS0H: LSZH
  • Voltage Rating: 300/500V
  • Operating temperatures: -40 to +80 °C
  • Email: huadong@hdcablegroup.com
  • Discount Price

7 Core YY Control Cable Application:


7 Core YY Control Cable is a flexible mulit-core cable with class 5 flexible annealed plain copper conductors, PVC insulation, and a grey PVC sheath. YY Cable is used in fixed installations or flexible use in conditions with light mechanical stress. It can be used in dry and moist area’s including outdoors when mechanically protected. 7 Core YY Control Cable is widely used on production lines, conveyor systems, machine tool manufacturing and air conditioning systems.



7 Core YY Control Cable Specifications


Part No. No.
Cores
Conduct or
Cross Secton
Area (mm²)
Cable Cross
Secton Area
(mm²)
Overall
Diameter
(mm)
Gland
Size
Cleat
Size
Nominal
Weight
(kg/km)
Resistance of
Copper Conductor
(Ω/Km) at 200C
7C.75YY 7 0.75 48.99 7.9 20S 4 105 26
7C1.0YY 7 1 54.07 8.3 20S 4 125 19.5
7C1.5YY 7 1.5 75.39 9.8 20S 4 185 13.3
7C2.5YY 7 2.5 109.3 11.8 20 5 305 7.98




7 Core YY Control Cable Features :


• Ideal for space saving installations
• Highly flexible due to the short twisted conductor layers
• Versatile multi-core power and signal cables
• Ideal for indoor use where light mechanical stresses are present
• Good chemical resistance
• YY control cable has a grey PVC outer sheathing
• White numbers on the outer sheath
• These unscreened flexible multi-core cables have a voltage rating of 300/500V


7 Core YY Control Cable why choose HuaDong?


Huadong Cable Group as a special 7 Core YY Control Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in 7 Core YY Control Cable, but also we have 15 senior engineers, they can free design the 7 Core YY Control Cable size according to client’s requirement.
Our 7 Core YY Control Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.

For the best 7 Core YY Control Cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
