Galvanized Steel Wire

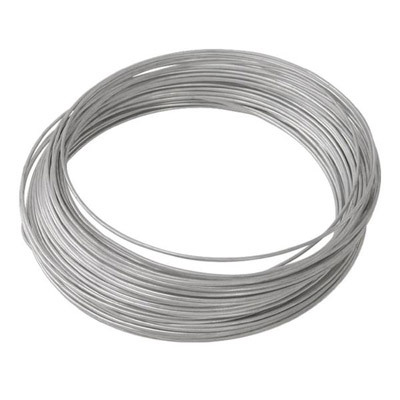

12 Gauge Galvanized Steel Wire

12 Gauge Galvanized Steel Wire

  • Brand Name: HuaDong Cable
  • Name: 12 gauge galvanized steel wire
  • Diameter: 0.10 ~ 13.0mm
  • Zinc Coating: 12 ~ 920 g/m2
  • Tensile Strength: 300 ~ 3090 Mpa
  • Coating: Hot Dip Galvanizing, Electro Galvanizing & Aluminum-Zinc Coating
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 12 Gauge Galvanized Steel Wire :

12 Gauge Galvanized Steel Wire is steel that has been dipped in a zinc covering, in which provides it good corrosion-resistant qualities. However even with the enhancement of zinc, It is weaker than stainless steel due to the fact that of the presence of chromium, making the cable stronger as well as more tolerant of corrosive elements like saltwater. 12 Gauge Galvanized Steel Wire may rust as well as corrode if salty wet conditions are present. However unlike stainless steel, galvanized steel wire will not weld together if in contact with one another, as is true with stainless steel cable. Even so, since it is created of coated steel, galvanized steel wire rope is normally less expensive than other wire rope options. Galvanized steel wire is frequently found in industrial applications, since items may brush up against the wire rope in the field, in which again, are environmental problems that galvanized steel tolerates rather well over time. For this and also other reasons, Galvanized steel wire rope works exceptionally well in aerospace uses.

Galvanized Steel Wire Ultra-High Strength Tensile Requirement

Diameter Range(mm) Stress at 1% Extension Min, Mpa Ultimate Tensile Strength Min, Mpa Elongation in 250mm Min, %
1.27~2.28 1580 1965 3
2.29~3.04 1550 1900 3
3.05~3.55 1515 1860 3.5
3.56~4.82 1480 1825 3.5

Galvanized Steel Wire Zinc Coating

Diameter Range(mm) Class A (g/m2) Class B (g/m2) Class C (g/m2)
1.60~1.90 210 420 630
1.90~2.30 220 440 660
2.30~2.70 230 460 690
2.70~3.10 240 480 720
3.10~3.50 260 520 780
3.50~3.90 270 540 810
3.90~4.50 275 550 825
4.50~4.82 300 600 900


12 Gauge Galvanized Steel Wire structure

We stock from 0.5 mm up to 64mm in various constructions consisting of 1X19, 7X7 ,6 X19, 7X19, 6X36, 8X19, 8X36, 19X7 as well as 35X7 with both Fibre Core as well as Steel Cores. In addition to these conventional 12 Gauge Galvanized Steel Wire we can offer special wire ropes from top quality manufacturers. The majority of wire ropes operate in demanding conditions and also must resist crushing, bending fatigue as well as abrasion. Our team recognise that it is important that all of our wire ropes need to perform to the highest levels to increase service life therefore increasing productivity for the end individual.

12 Gauge Galvanized Steel Wire why choose HuaDong?

Huadong Cable Group being a special 12 Gauge Galvanized Steel Wire manufacturer in China, We not only have over 30 years of manufacturing experience as well as 15 years of export experience in Galvanized Steel Wire, but also we have 15 senior engineers, they can free design the Galvanized Steel Wire size base on client's requirement.
Our 12 Gauge Galvanized Steel Wire export for example South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana, Nigeria, Panama, Iran Premium quality service and also production are the first choice of many clients.


Any cable inquiry please feel free to contact us.
