Galvanized Steel Wire

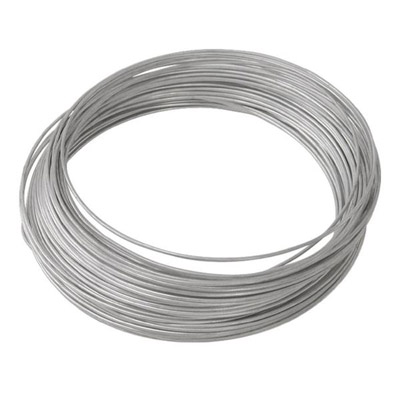

20 Gauge Galvanized Steel Wire

20 Gauge Galvanized Steel Wire

  • Brand Name: HuaDong Cable
  • Name: 20 gauge galvanized steel wire
  • Diameter: 0.10 ~ 13.0mm
  • Zinc Coating: 12 ~ 920 g/m2
  • Tensile Strength: 300 ~ 3090 Mpa
  • Coating: Hot Dip Galvanizing, Electro Galvanizing & Aluminum-Zinc Coating
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 20 Gauge Galvanized Steel Wire :


20 Gauge Galvanized Steel Wire is steel that has been dipped in a zinc coating, which gives it good corrosion-resistant qualities. But even with the addition of zinc, It is weaker than stainless steel because of the presence of chromium, making the cable stronger and more tolerant of corrosive elements like saltwater. 20 Gauge Galvanized Steel Wire will rust and corrode if salty wet conditions are present. But unlike stainless steel, galvanized steel wire will not weld together if in contact with one another, as is true with stainless steel cable. However, since it is made of coated steel, galvanized steel wire rope is typically less expensive than other wire rope alternatives. Galvanized steel wire is often found in industrial applications, since items may brush up against the wire rope in the field, which again, are environmental conditions that galvanized steel tolerates quite well over time. For this and other reasons, Galvanized steel wire rope works exceptionally well in aerospace applications.


Galvanized Steel Wire Ultra-High Strength Tensile Requirement


Diameter Range(mm) Stress at 1% Extension Min, Mpa Ultimate Tensile Strength Min, Mpa Elongation in 250mm Min, %
1.27~2.28 1580 1965 3
2.29~3.04 1550 1900 3
3.05~3.55 1515 1860 3.5
3.56~4.82 1480 1825 3.5



Galvanized Steel Wire Zinc Coating


Diameter Range(mm) Class A (g/m2) Class B (g/m2) Class C (g/m2)
1.60~1.90 210 420 630
1.90~2.30 220 440 660
2.30~2.70 230 460 690
2.70~3.10 240 480 720
3.10~3.50 260 520 780
3.50~3.90 270 540 810
3.90~4.50 275 550 825
4.50~4.82 300 600 900


20 Gauge Galvanized Steel Wire structure


We stock from 0.5mm up to 64mm in various constructions including 1X19, 7X7,6X19, 7X19, 6X36, 8X19, 8X36, 19X7 and 35X7 with both Fibre Core and Steel Cores. In addition to these conventional 20 Gauge Galvanized Steel Wire we can offer special wire ropes from high quality manufacturers. Most wire ropes operate in demanding conditions and must resist crushing, bending fatigue and abrasion. We recognise that it is vital that all of our wire ropes need to perform to the highest levels to maximise service life therefore increasing productivity for the end user.



20 Gauge Galvanized Steel Wire why choose HuaDong?


Huadong Cable Group as a special 20 Gauge Galvanized Steel Wire factory in China, We not only have over 30 years of production experience and 15 years of export experience in Galvanized Steel Wire, but also we have 15 senior engineers, they can free design the Galvanized Steel Wire size according to client’s requirement.
Our 20 Gauge Galvanized Steel Wire export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.




Any cable inquiry please feel free to contact us.
