high voltage cable

38/66kv XLPE High Voltage Power Cable

38/66kv High Voltage Power Cable

  • Brand Name: HuaDong Cable
  • Product Name:38/66kv XLPE High Voltage Power Cable
  • Insulation: XLPE
  • Conductor Material: Aluminum Or Copper Conductor
  • Voltage: 38/66kv; 64/110kv; 76/132kv; 127/220kv
  • Email: huadong@hdcablegroup.com
  • Discount Price

38/66kv high voltage cables are an essential component in the transmission and distribution of electricity, providing a safe and reliable method for transmitting large amounts of electric power in both residential and commercial settings. Known for their high-voltage capability, these 38/66 kv hv cables can handle up to 66 kV, making them ideal for use in applications such as utilities, industrial plants, and other areas that require high-voltage power. These cables deliver exceptional performance and provide long service life with minimal maintenance costs. With their robust construction and high insulation resistance, they offer superior electrical protection while minimizing the risk of damage or fire due to short circuits or overloads.

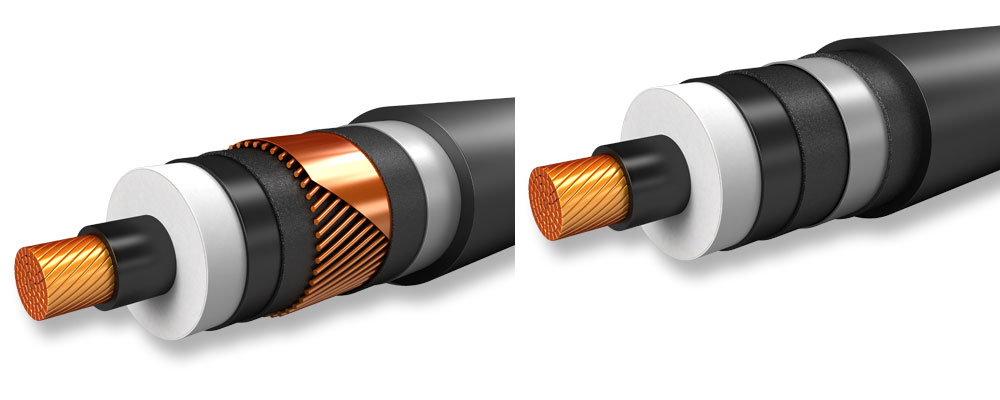

38/66kv high voltage Cable


38/66kv high voltage Cable Feature:


38/66kv high voltage cables are designed for higher voltages and higher current capacity than standard electrical cables, making them ideal for use in industrial, commercial and other high-powered applications. High voltage cables typically consist of two or more conductors housed inside an outer insulation material. The conductors can be made from either copper or aluminum, depending on the specific application. The insulation material usually consists of polyethylene or Cross-Linked Polyethylene (XLPE). XLPE has superior safety characteristics compared to other insulation materials due to its ability to withstand higher temperatures and is thus preferred in many applications. The 38/66kv hv cable is designed to carry up to 66 kV of electricity between two points, while providing a maximum operating temperature of 90°C. This makes it suitable for long distances as well as underground installations with very low energy losses over the entire length of the cable due to its high dielectric strength and low capacitive reactance. In addition, this type of cable provides excellent mechanical protection against external forces such as vibration, impact and water ingress. When installing 38/66kv hv cables, it is important that proper attention is paid to the cable’s route so that it does not come into contact with any other electrical elements or sources of interference such as radio waves, electromagnetic fields or any other unshielded conductor. Additionally, specific safety measures should be taken during installation in order to avoid any risks associated with high voltage cables.

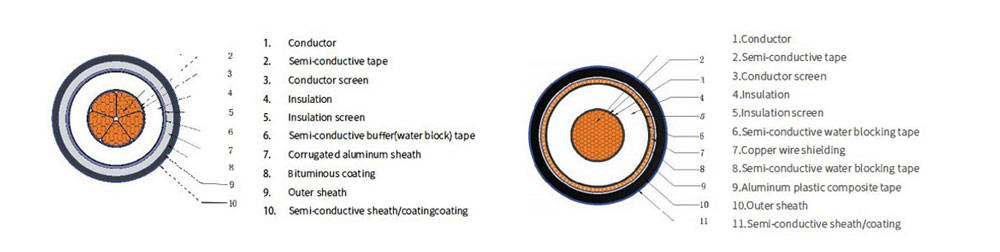

38/66 kv hv cable construction

38/66kv xlpe high voltage cable specifications:


38/66(72.5)kv High Voltage Power Cable With Copper Wire Screen Constructional & Electrical Data
Conductor Insulation Metallic Screen Outer Jacket
Nominal Area Max. DC Resis- tance at 20 °C Max. AC Resis- tance at 90 °C Nominal Thickness of Insulation Layers Electro- static Capaci- tance Nominal Area of Copper Wires(1) Short Circuit Capacity (1 Sec.)(2) Nominal Thick- ness Approx. Overall Diameter Approx. Overall Weight
Cond. Screen XLPE Ins. Screen
mm2 Ω / km Ω / km mm mm mm μF / km mm2 kA mm mm kg / m
240 R 0.0754 0.0979 1 11 1 0.19 95 15.3 3.5 57.1 5.03
300 R 0.0601 0.0789 1 11 1 0.205 95 15.3 3.5 59.5 5.71
400 R 0.047 0.0629 1 11 1 0.222 95 15.3 3.5 62.1 6.61
500 R 0.0366 0.0505 1 11 1 0.245 95 15.3 4 66.5 7.94
630 R 0.0283 0.0411 1 11 1 0.268 95 15.3 4 70 9.32
800 R 0.0221 0.0343 1 11 1 0.293 95 15.3 4 74 11.22
1000 S 0.0176 0.0241 1.5 11 1.2 0.355 95 15.3 4 84.1 13.67
1200 S 0.0151 0.0212 1.5 11 1.2 0.381 95 15.3 4.5 89.1 15.86
1400 S 0.0129 0.0187 1.5 11 1.2 0.393 95 15.3 4.5 91.1 17.83
1600 S 0.0113 0.017 1.5 11 1.2 0.419 95 15.3 4.5 95.1 19.51
2000 S 0.009 0.0145 1.5 11 1.2 0.451 95 15.3 4.5 100.1 23.14


38/66(72.5)kv High Voltage Power Cable With Lead Sheath Constructional & Electrical Data
Conductor Insulation Metallic Screen Outer Jacket
Nominal Area Max. DC Resis- tance at 20 °C Max. AC Resis- tance at 90 °C Nominal Thickness of Insulation Layers Electro- static Capaci- tance Nominal Thickness of Lead Sheath(1) Short Circuit Capacity (1 Sec.)(2) Nominal Thick- ness Approx. Overall Diameter Approx. Overall Weight
Cond. Screen XLPE Ins. Screen
mm2 Ω / km Ω / km mm mm mm μF / km mm kA mm mm kg / m
240 R 0.0754 0.0979 1 11 1 0.19 2.1 7.6 3.5 56.9 7.54
300 R 0.0601 0.0789 1 11 1 0.205 2.2 8.4 3.5 59.5 8.58
400 R 0.047 0.0629 1 11 1 0.222 2.3 9.2 3.5 62.3 9.87
500 R 0.0366 0.0505 1 11 1 0.245 2.3 9.8 4 66.7 11.47
630 R 0.0283 0.041 1 11 1 0.268 2.4 10.8 4 70.4 13.35
800 R 0.0221 0.0343 1 11 1 0.293 2.5 12 4 74.6 15.82
1000 S 0.0176 0.0241 1.5 11 1.2 0.355 2.7 14.9 4 85 19.74
1200 S 0.0151 0.0212 1.5 11 1.2 0.381 2.8 16.3 4.5 90.2 22.61
1400 S 0.0129 0.0187 1.5 11 1.2 0.393 2.9 17.3 4.5 92.4 25.07
1600 S 0.0113 0.0169 1.5 11 1.2 0.419 3 18.7 4.5 96.6 27.47
2000 S 0.009 0.0145 1.5 11 1.2 0.451 3.1 20.5 4.5 101.8 31.96

38/66kv xlpe hv cable construction


When it comes to constructing 38/66kv high voltage cable, it is essential to ensure that the core is made with an insulation material that can adequately protect against high electrical currents. Cross-linked polyethylene (XLPE) is a popular choice for this type of cable due to its excellent electrical performance and mechanical strength. The core of the 38/66kv XLPE cable consists of stranded copper or aluminum conductor surrounded by three layers of insulation. The inner layer of insulation is usually semi-conducting compound. This layer will help absorb any surge in current which can occur during operation. The middle layer is usually composed of a highly flexible XLPE compound which provides good temperature resistance and dielectric strength. Finally, the outer layer provides additional protection for the entire assembly and ensures that moisture does not get into the cable. In addition to these layers, a metallic screen or armor may be used around the outside of the cable in order to provide improved mechanical protection and reduce electromagnetic interference (EMI).

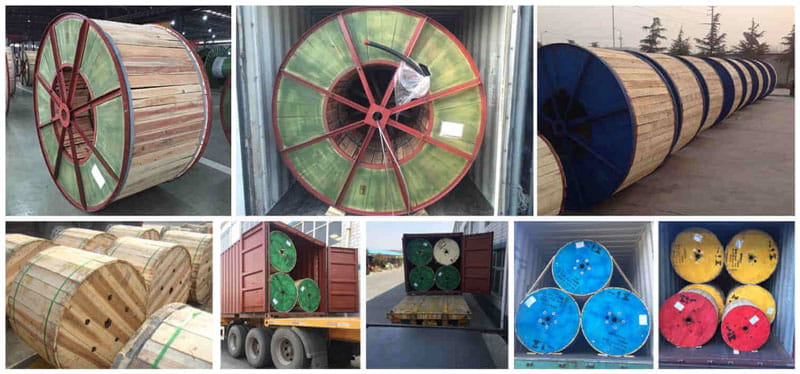

38/66(72.5)kv High Voltage Power Cable Packing

38/66kv xlpe high voltage power cable application


High voltage power cable applications, such as the 38/66kv xlpe high voltage cable, are used in a wide variety of industries and applications. These cables are ideally suited for direct burial installations or underground applications due to their high voltage rating and robust construction. This type of cable is typically used in the transmission and distribution of electrical power from a utility source to the end user. In addition, these cables can be used for connections between switchgear, transformers, and other power equipment. The 38/66kv xlpe high voltage cable offers several advantages that make it an ideal choice for many power system applications. For example, the insulation materials used in this type of cable offer excellent resistance to moisture, chemicals, abrasion, and other environmental factors. Additionally, this type of cable has a much higher current carrying capacity than traditional copper wire or aluminum conductor cables. This allows it to handle higher voltages with greater safety while still providing reliable connections between components. In order to ensure the safety and reliability of these cables, they must be properly installed according to local regulations and codes. It is also important to periodically inspect them for signs of damage or wear that could cause corrosion or other problems over time. With regular inspection and maintenance, these cables can provide safe and reliable service for many years without requiring extensive repairs or replacements.

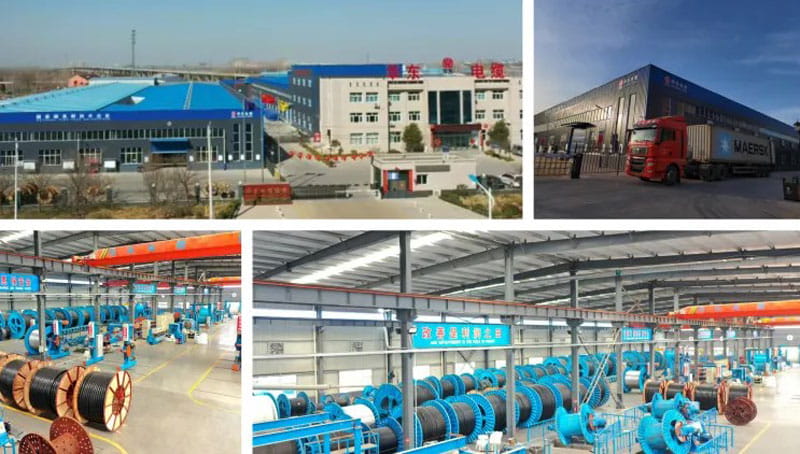

 38/66 kv High Voltage Power Cable Manufacturer


38/66kv high voltage cable is a highly effective means of transmitting electrical energy, with its superior insulation properties and robust construction making it ideal for use in a wide range of applications. As such, 38/66kv high voltage cable is a reliable and cost-effective way to transmit power over long distances, ensuring safe and efficient operation.
