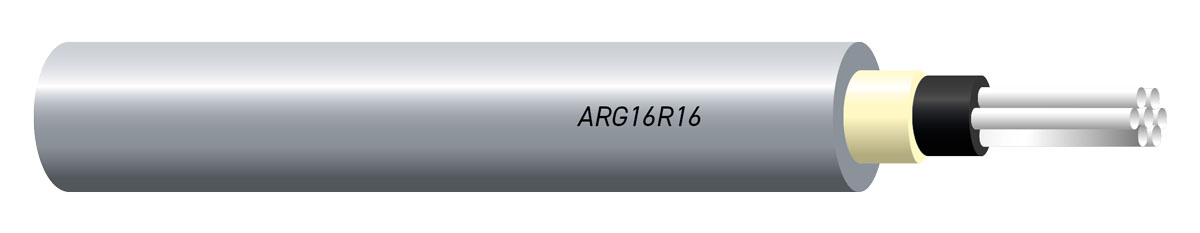

What is ARG16R16 Cable?
ARG16R16-0.6/1kV is single-core power cable with aluminum conductor, HEPR insulated (G16 quality), PVC sheathed, with special fire reaction characteristics according to ConstructionProductsRegulation (CPR). Resistant to fire propagation with reduced emission of corrosive gases under fire conditions.
ARG16R16 Cable Application:
ARG16R16 Cable suitable for the transport of power in the industry, construction sites and housing. For static use outdoor and indoor, in brickwork, metal structures, gangways, pipes, ducts or similar closed systems.
ARG16R16 Cable allow for underground laying also unprotected.
For bundle installations with in places at high fire risk in accordance with the CEI 64-8/7 having reaction fire class Cca-s3, d1, a3.
Further informations and advices for the use of these cables are indicated in the CEI 20-67’s Standard.

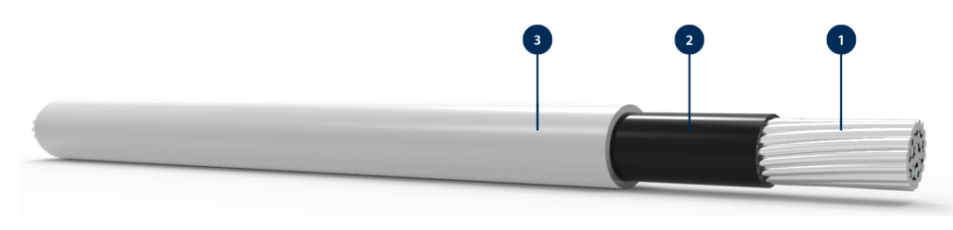

ARG16R16 Cable Structure：
|
|
CHARACTERISTICS |
DESCRIPTION |
REFERENCE |
|
|
Type of cable |
ARG16R16 |
|
|
|
Nominal Voltage |
Uo/U 600/1000 V |
|
|
① |
Core |
Class 2 aluminium stranded wire |
EN 60228 |
|
② |
Insulation |
G16 LSZH compound |
CEI EN 50363 |
|
③ |
Sheath |
PVC compound, R16 quality. Sheath colour: Grey |
CEI EN 50363 |
|
|
Temperature range |
-15°C/ 90°C |
|
|
|
Testing voltage |
4000 V AC |
|
|
|
Package |
100 m thermo-shrinking material coils - Drums |
|
ARG16R16-0.6/1kV Technical Sheet
|
Conductor Cross- sections |
MAX. Ø conductor wires |
Average insulation thickness |
Average sheath thickness |
Outer diameter |
Approx. Cable weight |
Max. Electrical resistance (20° C) |
|
|
mm |
mm |
|
MAX mm |
g/m |
ohm/km |
|
1 core x mm2 |
|
10 |
6 |
0.7 |
1.4 |
12 |
135 |
3.08 |
|
16 |
6 |
0.7 |
1.4 |
12.5 |
143 |
1.91 |
|
25 |
6 |
0.9 |
1.4 |
13.7 |
192 |
1.2 |
|
35 |
6 |
0.9 |
1.4 |
15 |
231 |
0.868 |
|
50 |
6 |
1 |
1.4 |
16.2 |
282 |
0.641 |
|
70 |
12 |
1.1 |
1.4 |
18.1 |
362 |
0.443 |
|
95 |
15 |
1.1 |
1.5 |
20.1 |
458 |
0.32 |
|
120 |
15 |
1.2 |
1.5 |
22 |
555 |
0.253 |
|
150 |
15 |
1.4 |
1.6 |
24.3 |
665 |
0.206 |
|
185 |
30 |
1.6 |
1.6 |
26.7 |
807 |
0.164 |
|
240 |
30 |
1.7 |
1.7 |
29.6 |
1012 |
0.125 |
|
300 |
30 |
1.8 |
1.8 |
32.2 |
1223 |
0.1 |
ARG16R16 Cable why choose HuaDong?
Huadong Cable Group as a special ARG16R16 Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in ARG16R16 Cable, but also we have 15 senior engineers, they can free design the ARG16R16 Cable size according to client’s requirement.
Our ARG16R16 Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
