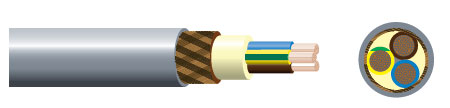

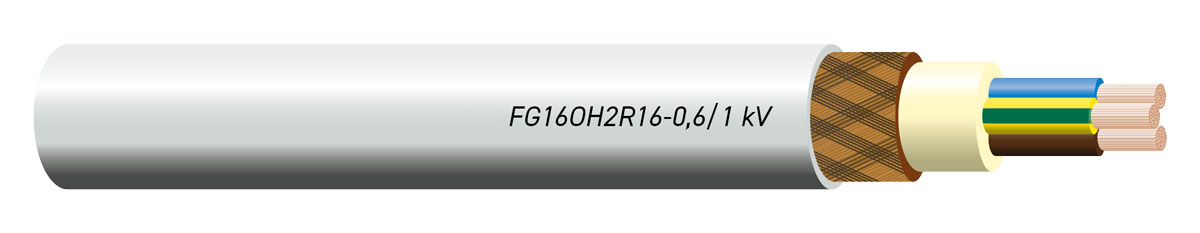

FG16OH2R16 0.6/1kV Cable

What is FG16OH2R16 Cable?

FG16OH2R16 0.6/1 kV is multicore power cables, HEPR insulated (G16 quality), PVC sheathed, with special fire reaction characteristics and according to Construction Products Regulation (CPR). Resistant to fire propagation with reduced emission of corrosive gases under fire conditions.

FG16OH2R16 Cable Application:

FG16OH2R16 Cable for indoor and outdoor installation, also in wet locations and for external installations; for installation in surface mounted or on metallic structures; direct laying in earth permitted.
FG16OH2R16 cable Normally used in the interconnections of machinery or parts of them, when a certain degree of protection is needed against electromagnetic interference. See also the guide to use standard CEI 20-67.

FG16OH2R16 Cable Cores Colour

2: Blue, Brown;
3: Green/Yellow, Blue, Brown; Brown, Black, Grey;
4: Green/Yellow, Brown, Black, Grey; Blue, Brown, Black, Grey;
5: Green/Yellow, Blue, Brown, Black, Grey; Blue, Brown, Black, Grey, Black.

FG16OH2R16 Cable Technical data

Caratteristiche	Valori	Norme
Conductors:	annealed red copper Cl.5	CEI EN 60228 (Table 9)
Insulation :	LSZH compound G16 quality	CEI EN 50363
Cores colour :	CEI UNEL 00722 - HD 308
Screen:	braid of annealed red copper
Sheath:	Thermoplastic compound R16 quality	CEI EN 50363
Sheath colour :	Grey RAL 7035
Low halogens emission:	(< 22%)	CEI EN 50267-2-1 - IEC 60754-1
Current capacity :	CEI UNEL 35024/1 - CEI UNEL 35026
Rated voltage Uo/U:	0,6/1 kV
Max voltage :	1,2 kV
Testing voltage :	4 kV
Max working temperature :	90 °C
Short-circuit temperature :	250 °C
Min. installation temperature :	0 °C
Bending radius :	Ø x 8
Max standard twisting (2x cable) :	≥ 10 twist/meter

FG16OH2R16 Cable Specification Sheet

Formation	Approx. conductor Ø	Average insulation thickness	Average sheath thickness	Approx. production Ø	Approx. cable weight	Max. electrical resistance   at 20°C	Current rating Portata di corrente
Formazione	Ø indicativo conduttore	Spessore medio isolante	Spessore medio guaina	Ø indicativo produzione	Peso indicativo cavo	Resistenza elettrica max a 20°C	In pipe in air In tubo in aria 30°C	Underground in pipe In tubo interrato 20°C
n° x mm2	mm	mm	mm	mm	kg/km	ohm/ km	A	A
2 x 1,5	1,6	0,7	1,8	11,0	175	13,30	22	23
2 x 2,5	1,9	0,7	1,8	12,0	217	7,98	30	30
2 x 4	2,5	0,7	1,8	13,1	269	4,95	40	39
2 x 6	3,0	0,7	1,8	14,4	342	3,30	51	49
2 x 10	4,0	0,7	1,8	16,7	490	1,91	69	66
2 x 16	5,0	0,7	1,8	18,7	656	1,21	91	86
2 x 25	6,2	0,9	1,8	22,5	956	0,780	119	111
2 x 35	7,6	0,9	1,8	24,9	1242	0,554	140	136
3 x 1,5	1,6	0,7	1,8	11,5	193	13,30	19	19
3 x 2,5	1,9	0,7	1,8	12,6	242	7,98	26	25
3 x 4	2,5	0,7	1,8	13,7	306	4,95	35	32
3 x 6	3,0	0,7	1,8	15,1	396	3,30	44	41
3 x 10	4,0	0,7	1,8	17,5	577	1,91	60	55
3 x 16	5,0	0,7	1,8	19,7	786	1,21	80	72
3 x 25	6,2	0,9	1,8	23,7	1160	0,780	105	93
4 x 1,5	1,6	0,7	1,8	12,2	220	13,30	19	19
4 x 2,5	1,9	0,7	1,8	13,7	293	7,98	26	25
4 x 4	2,5	0,8	1,8	15,0	373	4,95	35	32
4 x 6	3,0	0,7	1,8	16,4	477	3,30	44	41
4 x 10	4,0	0,7	1,8	19,2	706	1,91	60	55
4 x 16	5,0	0,7	1,8	21,7	975	1,21	80	72
5 x 1,5	1,6	0,7	1,8	13,1	250	13,30	19	19
5 x 2,5	1,9	0,7	1,8	14,7	335	7,98	26	25
5 x 4	2,5	0,7	1,8	16,3	443	4,95	35	32
5 x 6	3,0	0,7	1,8	17,9	564	3,30	44	41
5 x 10	4,0	0,7	1,8	20,7	823	1,91	60	55
5 x 16	5,0	0,7	1,8	23,6	1152	1,21	80	72
