CAAI / CAAI-S Cable

CAAI Cable Description:

CAAI cable consist of two or three phase conductors concentrically braided plus one or two conductors for lighting wiring around a support or support. The phase and lighting conductors are made of hard hardening aluminium alloy 1350-h19. The holder is a class A, extra high strengh (EHS) galvanized steel cable for CAAI-S cable and 6201-t81 aluminum alloy (which serves as neutral) for CAAI cable. The conductors and the support are isolated with reticulated polyethylene (XLPE). The phase conductors are differentiated by ribs extruded longitudinally over the insulation. Its form of packaging is spools in lengths according to customer needs.

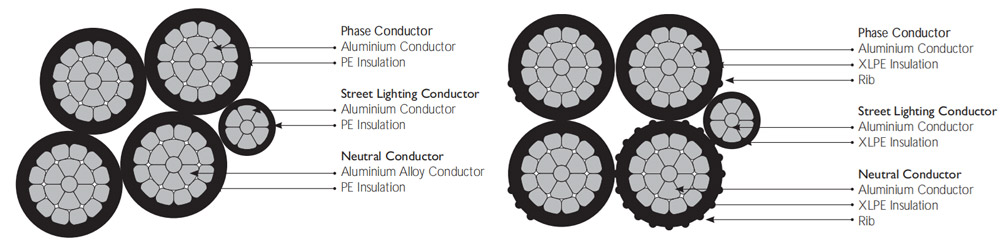

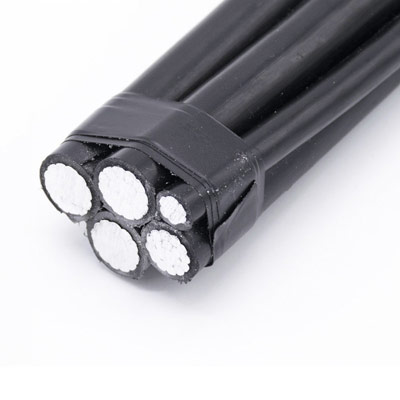

CAAI Cable Structure:

Conductor: Compact Aluminium 1350, class 2.
Insulation: Cross linked polyethylene XLPE.
Public lighting: Aluminium 1350 - XLPE.
Insulated neutral messenger: AAAC - All Alloy Aluminium 6201 - XLPE.

CAAI Aluminum conductor with aluminum alloy support cable
CAAI-S Aluminum conductor with XLPE protected galvanized steel support cable.

CAAI Cable Specification

Size	Approx. Overall Dia.	Approx. Weight	Size	Approx. Overall Dia.	Approx. Weight
(mm2)	(mm)	(kg/km)	(mm2)	(mm)	(kg/km)
1×16	7.08	63.4	1×16+16+ND25	14.83	196.2
1×25	8.28	91.8	1×16+16+NA25	16.47	222.7
1×35	9.28	120.6	2×16+16+ND25	16.73	259.6
1×50	11.04	168.6	2×25+16+ND25	18.18	316.4
1×70	13.04	235.5	2×16+16+NA25	18.12	286
1×95	14.64	321.8	2×25+16+NA25	19.56	342.8
1×120	17.06	413.9	2×35+16+NA25	20.77	400.5
1×150	18.46	490.7	3×16+NA25	16.68	284.9
2×16	14.16	126.7	3×25+NA25	20.22	370.1
2×25	16.56	183.5	3×16+16+ND25	18.79	322.9
2×35	18.56	241.1	3×16+16+NA25	20.02	349.4
3×16	15.25	190.1	3×25+16+NA25	23.93	499.1
3×35	19.98	361.7	2×35+ND25	17.92	309.5
3×50	23.78	505.7	2×35+NA25	19.55	336
3×70	28.08	706.5	3×35+NA25	22.04	456.5
4×16	17.09	253.4	3×35+16+ND25	22.36	494.6
4×25	19.98	367.1	3×35+16+NA25	23.59	521
1×16+ND25	13.47	131.8	3×35+2×16+NA25	25.44	585.5
1×16+NA25	15.75	158.2	3×50+NA35	25.93	631.9
1×25+NA25	16.95	186.6	3×50+16+NA25	26.38	663.8
2×16+ND25	14.75	195.1	3×50+16+NA35	27.07	696.4
2×16+NA25	16.39	221.5	3×50+25+NA35	27.77	724.7
2×25+ND25	16.47	251.9	3×70+NA35	29.55	832.8
2×25+NA25	18.12	278.4	3×70+16+NA50	31.53	957.5
2×25+16	16.97	246.9	3×70+25+NA50	32.24	985.8
2×35+16	18.48	305.7	3×95+16+NA50	34.13	1188.3
3×25+16	19.32	339.8	3×95+NA50	33.81	1124.9
3×35+16	21.23	426.2	3×95+16+NA70	35.02	1252.1
3×120+16	36.75	1306.3	3×120+16+NA70	38.94	1555.5

CAAI-S Cable Specification

Size	Approx. Overall Dia.	Approx. Weight	Size	Approx. Overall Dia.	Approx. Weight
(mm2)	(mm)	(kg/km)	(mm2)	(mm)	(kg/km)
3x25+2x16+P3.18	21.9	455	2x16+P3.18	12.5	184
3x35+2x16+P3.18	23.4	544	3x70+2x35+P3.18	31.2	1004
3x50+2x25+P3.18	27.4	748	3x95+2x16+P6.35	29.6	1252

CAAI Cable Application:

The aluminum conductors type CAAI cable and CAAI-S cable is braided classes aa and a and are used for secondary distribution lines of electrical energy, can be installed directly buried, in pipelines or electrical pipelines. This type of conductor can be used in dry and wet places, its maximum operating temperature is 90 ° c and its operating voltage for all applications is 1 kv.
