Recline Cable Description:
Recline Cable stands for ABC Cable overhead bundled cable in Nigeria. Specifically for use in the Nigerian power distribution network, Recline cable has a robust aluminium conductor core that ensures efficient and stable current transmission.

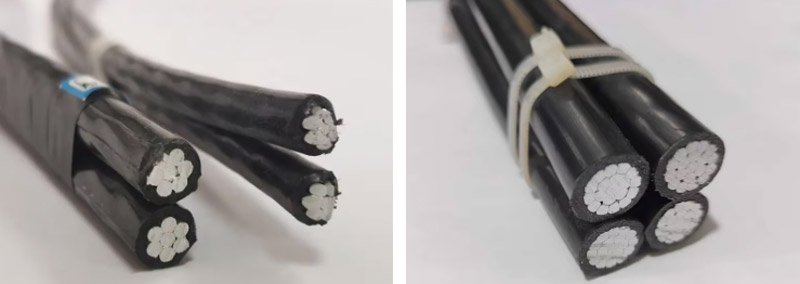

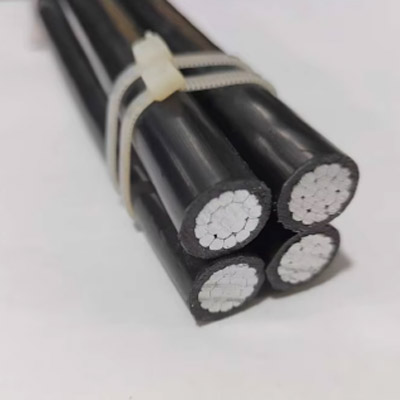

Recline Cable's construction consists of an aluminium conductor with XLPE (cross-linked polyethylene) insulation. XPLE is known for its excellent electrical properties, including excellent resistance to moisture, chemicals and heat. It effectively protects the conductor from external components, maintains signal integrity, and prevents leakage or short circuits. In addition, XLPE's cross-linking process enhances its mechanical strength and durability, ensuring that the insulation can withstand the rigours of Nigeria's tropical climate and harsh environmental conditions.
Recline Cable Specifications:
|
number of cores x nominal cross section |
max. conductor- resistance |
min. breaking load of conductor strand |
Current rating in the air |
Outer diameter |
Total weight |
|
mm^2 |
Ohm/km |
kN |
A |
mm |
kg/km |
|
1x 16 RM |
1910 |
2,5 |
72 |
80 |
74 |
|
1x 25 RM |
1200 |
4,0 |
107 |
90 |
106 |
|
1x 35 RM |
0,868 |
5,5 |
132 |
105 |
138 |
|
1x 50 RM |
0,641 |
8,0 |
165 |
118 |
182 |
|
1x 70 RM |
0,443 |
10,7 |
205 |
130 |
252 |
|
1x 95 RM |
0,320 |
13,7 |
240 |
154 |
333 |
|
1x 120 RM |
0,253 |
18,6 |
290 |
170 |
408 |
|
1x 150 RM |
0,206 |
23,2 |
334 |
190 |
502 |
|
1x 185 RM |
0,164 |
28,7 |
389 |
210 |
611 |
|
1x 240 RM |
0,125 |
37,2 |
467 |
240 |
801 |
|
2x 16 RM |
1910 |
2,5 |
72 |
156 |
147 |
|
2x 25 RM |
1200 |
4,0 |
107 |
180 |
208 |
|
2x 35 RM |
0,868 |
5,5 |
132 |
200 |
277 |
|
2x 50 RM |
0,641 |
8,0 |
165 |
235 |
361 |
|
2x 70 RM |
0,443 |
10,7 |
205 |
254 |
505 |
|
2x 95 RM |
0,320 |
13,7 |
240 |
303 |
666 |
|
2x 150 RM |
0,206 |
23,2 |
334 |
380 |
1004 |
|
4x 16 RM |
1910 |
2,5 |
72 |
188 |
286 |
|
4x 25 RM |
1200 |
4,0 |
107 |
212 |
430 |
|
4x 35 RM |
0,868 |
5,5 |
132 |
241 |
553 |
|
4x 50 RM |
0,641 |
8,0 |
165 |
278 |
746 |
|
4x 70 RM |
0,443 |
10,7 |
205 |
318 |
1009 |
|
4x 95 RM |
0,320 |
13,7 |
240 |
378 |
1332 |
|
4x 120 RM |
0,253 |
18,6 |
290 |
544 |
1632 |
|
4x 50 + 1x 25 RM |
0,641/1,200 |
8,0/4,0 |
165/107 |
319 |
814 |
|
4x 50 + 1x 35 RM |
0,641/0,868 |
8,5/5,5 |
165/132 |
319 |
845 |
|
4x 70 + 1x 25 RM |
0,443/1,200 |
10,7/4,0 |
205/107 |
360 |
1105 |
|
4x 70 + 2x 25 RM |
0,443/1,200 |
10,7/4,0 |
205/107 |
400 |
1217 |
|
4x 95 + 1x 25 RM |
0,320/1,200 |
13,7/4,0 |
240/107 |
418 |
1438 |
|
4x 95 + 2x 25 RM |
0,320/1,200 |
13,7/4,0 |
240/107 |
420 |
1544 |
|
4x120 + 1x 25 RM |
0,253/1,200 |
18,6/4,0 |
290/107 |
590 |
2050 |
Recline Cable Advantages:
Recline Cable offers several advantages over conventional cable types used in the Nigerian power industry. Firstly, its aluminium conductor is less expensive than copper, making it a cost-effective solution for large power distribution projects.
Secondly, Recline Cable's XLPE insulation has superior electrical and mechanical properties compared to traditional PVC insulation. This reduces power loss, increases resistance to environmental degradation and improves durability, resulting in longer service life and reduced maintenance requirements.
Third, the cable bundle is designed to be easier to install and maintain. Bundling multiple cables together reduces the number of individual conductors that need to be handled, thereby simplifying the installation process and minimising the risk of accidents or damage.
Recline Cable Applications:
Recline Cable is widely used in the Nigerian power distribution network. It is commonly used for overhead power lines, spanning long distances, connecting substations and transmission towers. In these applications, Recline Cables' lightweight and flexible design makes it easy to install and maintain, reducing labour costs and downtime.
In addition, the recline cables are ideal for use in urban areas, where they can be bundled with other cables to form neat overhead lines. This not only enhances the aesthetics of the cityscape, but also facilitates maintenance and repair work.
In addition to overhead power lines, Recline Cables are also suitable for temporary power supply on construction sites, providing a reliable and cost-effective solution for powering equipment and machinery. Their robust construction ensures that they can withstand the rigours of construction, while their lightweight nature makes them easy to transport and deploy.
Recline Cable Why Choose Huadong:
Huadong Cable Group as a special Recline Cable factory in China, We not only have over 30 years of production experience and 15 years of export experience in Recline Cable, but also we have 20 senior engineers, they can free design the Recline Cable size according to all your requirement. Trusted for superior quality and reliability, we are the ideal choice for all your Recline cable needs.
