Type SHD-CGC Three-Conductor Round Portable Power Cable

Type SHD-CGC Three-Conductor Round Portable Power Cable Applications :

Type SHD-CGC heavy duty cables are designed for applications such as longwall shearers, continuous miners, loaders,drills, conveyors, pumps, and other mobile equipment requiring grounding conductors, where a ground check conductor, and metallic shielding are required.

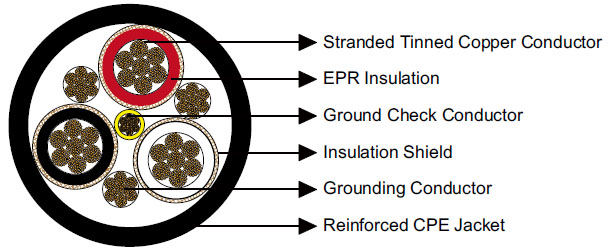

Type SHD-CGC Three-Conductor Round Portable Power Cable Construction :

Conductor	Stranded annealed tinned copper conductor.
Conductor Shield	Conducting layer.
Insulation	Ethylene Propylene Rubber (EPR).
Insulation Shield	Tinned copper/textile braid.
Ground Check Conductor	Tinned copper with a yellow insulation, located in the center of the cable.
Grounding Conductor	Tinned copper conductor.
Jacket	Reinforced extra-heavy-duty Chlorinated Polyethylene (CPE), black.

Type SHD-CGC Three-Conductor Round Portable Power Cable Spec

Construction	No. of Strands	Grounding Conductor Size	Ground Check Conductor Size	Nominal Insulation Thickness		Nominal Jacket Thickness		Nominal Overall Diameter		Nominal Weight		Ampacity
No. of cores ×AWG/kcmil	-	AWG/kcmil	AWG/kcmil	inch	mm	inch	mm	inch	mm	lbs/kft	kg/km	A
3×2/0	323	5	16	0.11	2.8	0.22	5.6	2.2	55.9	3716	5529	243
3×3/0	418	4	16	0.11	2.8	0.235	6	2.36	59.9	4130	6145	279
3×4/0	532	3	16	0.11	2.8	0.235	6	2.5	63.5	5190	7722	321
3×350	888	1	16	0.12	3	0.265	6.7	2.95	74.9	7571	11264	435

Type SHD-CGC Power Cable Why Choose HuaDong ?

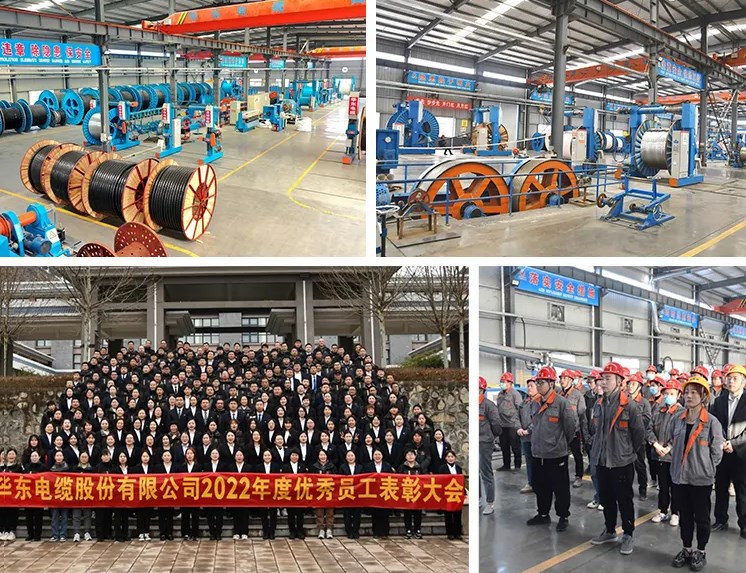

Huadong Cable Group as a special Type SHD-CGC Power Cable 2kV / 5kV factory in China, We not only have over 30 years of production experience and 15 years of export experience in Type SHD-CGC Power Cable, but also we have 15 senior engineers, they can free design the Type SHD-CGC Power Cable 2kV / 5kV according to client’s requirement. We produce Type SHD-CGC Power Cable with high quality material. Every Type SHD-CGC Power Cable Cable process has been strictly checked by our professional technical engineers.

Our Type SHD-CGC Power Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
