LXS Cable

Brand Name: HuaDong Cable
Name: LXS Cable
Phase Conductor: Aluminium Neutral Conductor
Rated Voltage: 0.6/1 kV
Number of Cores: 2-5 Core
Packing: wooden drum, iron drum, or according to customer's requirement.
Email: huadong@hdcablegroup.com
Discount Price

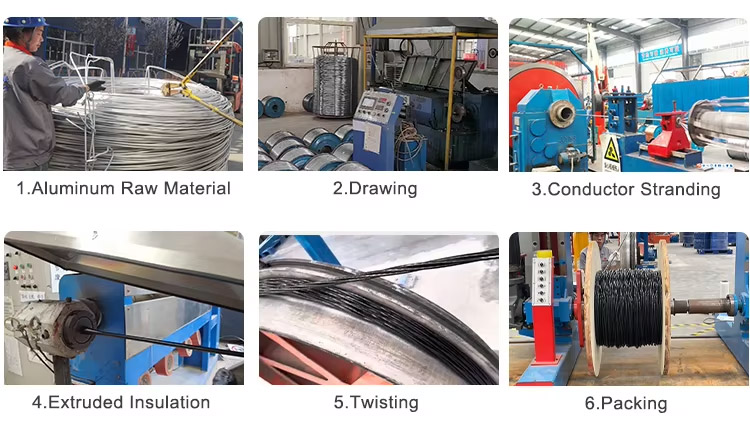

What is LXS Cable：

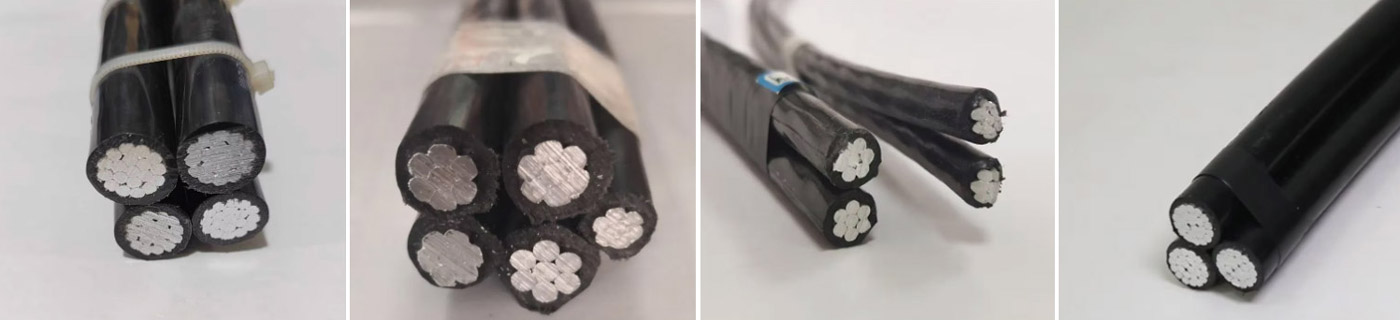

LXS cable refers to an Aluminium Overhead Aerial Bundle Cable (ABC) used for for overhead power distribution systems mainly for public distribution, for rated voltage up to 0.6/1kV.

Conductor Material	Aluminium
Conductor Types	Phase and Public Lighting
Conductor Class	Stranded Class 2
Insulation Material	XLPE – Cross-linked Polyethylene
Core Assembly	Cores are laid-up Helically
Messenger neutral core	Stranded aluminium alloy wires, cross-sections 29.5 mm²; 54.6 mm² and 80 mm²

Test voltage	4 kV a.c. 5 minutes
Conductor maximum operating temperature	90°C
Maximum short-circuit temperature	250°C [t ≤ 5s]
Minimum bending radius (mm)	18xd
Maximum pulling force over conductor (N)	With sleeve over copper conductors - 50 x S, With sleeve over aluminium conductors - 30 x S

Cable composition n.º cond. x cross-section (mm2)	Approximate outer diameter (mm)	Approximate weight (kg/km)	Maximum permissible current Installation in open air T = 40°C (A)
2 × 16	15	130	85
2 x 25	18	200	110
1 x 25 / 54,6	22	310	110
3 × 16	16	195	75
4 × 16	18	260	75
5x 16	20	325	75
6 x 16	22	390	75
4 × 25	22	395	100
4 x 25 + 1 x 16	24	460	100
4 x 25 +2x16	26	525	100
3 x 25 + 29,5	24	415	100
3 x 25 + 54,6	23	500	100
3 x 25 + 54,6 + 1 x 16	25	570	100
3 x 25 + 54,6 + 2 x 16	27	635	100
4 × 35	26	550	120
4 × 35 + 1 x 16	27	615	120
4 x 35 +2x16	27	680	120
3 x 35 + 54,6	27	620	120
3 × 35 + 54,6 + 1 x16	29	685	120
3 × 35 + 54,6 +2x16	32	750	120
4 × 50	29	705	150
4 x 50 + 1 x 16	30	770	150
4 x 50 + 1 x 25	31	800	150
4 × 50 + 2x16	31	835	150
4 × 50 + 2 x 25	32	900	150
1 × 50 + 54,6	25	385	165
3 × 50 + 29,5	28	640	150
3 × 50 + 54,6	30	735	150
3 × 50 + 54,6 + 1 x 16	31	800	150
3 x 50 + 54,6 + 1 x 25	32	835	150
3 x 50 + 54,6 + 2 x 16	33	865	150
3 x 50 + 54,6 + 2 x 25	34	935	150
4 × 70	33	1005	190
4 x 70+1x16	34	1070	190
4 × 70 +1 x 25	35	1105	190
4 × 70 + 2x16	36	1135	190
4 × 70 + 2 x 25	36	1205	190
3 x 70 + 54,6	33	960	190
3 x 70 + 54,6 + 1 x 16	34	1030	190
3 x 70 + 54,6 + 1 x 25	35	1060	190
3 x 70 + 54,6 + 2 x 16	36	1095	190
3 × 70 + 54,6 + 2 x 25	36	1160	190
4 × 95	37	1325	230
4 x 95+1x16	38	1390	230
4 x 95 + 1 x 25	38	1420	230
4 × 95 +2x16	40	1455	230
4 x 95 + 2 x 25	40	1520	230
3 × 95 + 54,6	37	1200	230
3× 95 + 50	37	1880	230
3 × 95 + 54,6 + 1 x 16	38	1265	230
3 × 95 + 54,6 + 1x25	38	1300	230
3 × 95 + 54,6 + 2x16	40	1330	230
3 × 95 + 54,6 + 2x25	40	1400	230
3 x 150 + 95	44	1800	305
3 × 150 + 80	43	1755	305
