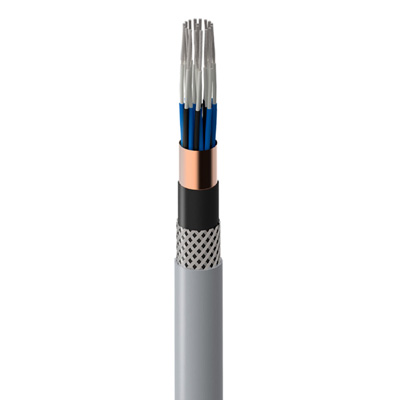

NEK606 BFOU(c) S4/S8/S104 Fire Resistant Cable

What is BFOU(c) S104 Cable

NEK606 BFOU(c) S104 (formerly S4 or S4/S8) cable is a collective screen fire-resistant offshore cable for instrumentation on offshore platform and oil rigs. BFOU(c) S104 cable is rated at 150/250V and has an operating temperature range of -40°C to +90°C. This cable incorporates mica glass tape (MGT), which acts as a fire barrier, enabling the cable to provide uninterrupted power or signals during a fire in accordance with IEC 60331-21 standards. Our these offshore cables  have been approved and certified by ABS (American Bureau of Shipping).

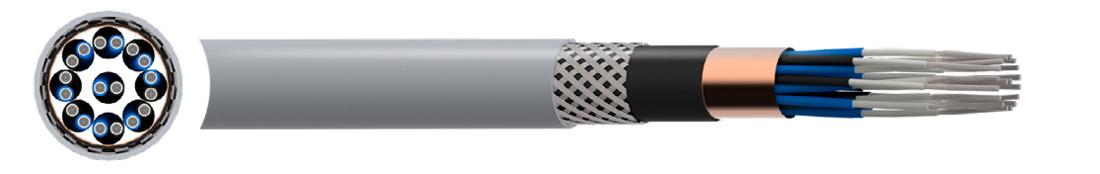

BFOU(c) S104  Construction

Conductor	Class 2 Tinned Copper
Insulation	Mica Tape+ EPR HF (Ethylene Propylene Rubber Halogen Free) Compound
Collective Screen	CTS (Cu/PE Tape Screen) + TC (Tinned Copper) Drain Wire
Inner Sheath	Extruded Compound (Type SHF2)
Armour	TCWB (Tinned Copper Wire Braid)
Outer Sheath	Type SHF2 H-M Compound
Core  Identification	Pair: Black Light Blue Triple: Black Light Blue Brown Multi pairs/triples: Progressively numbered
Sheath Colour	Blue / Grey

BFOU(c) S104  Characteristics

Voltage Rating	150 /250V
Maximum Operating Voltage Umax	300V
Temperature Rating	+90°C
Minimum Bending Radius	4 x Overall Diameter

BFOU(c) S104  Specifications

NO. OF PAIRS/TRIPLES	NOMINAL CROSS SECTIONAL AREA	NOMINAL DIAMETER UNDER ARMOUR	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	mm	mm	kg/km
2P	0.75	12.2	16.7	450
	1	12.5	17.3	485
	1.5	14.2	19	585
	2.5	15.9	21.5	715
2T	0.75	13.3	18.1	525
	1	13.7	18.5	560
	1.5	15.6	21.2	695
3T	0.75	14.1	18.8	580
	1	14.5	20.1	630
	1.5	16.6	22.1	780
4P	0.75	14.1	18.9	580
	1	14.5	20.1	625
	1.5	16.6	22.3	785
	2.5	18.6	24.4	965
4T	0.75	15.5	21.2	695
	1	15.9	21.7	750
	1.5	18.2	24	930
	2.5	20.5	26.3	1160
7P	0.75	16.9	22.6	790
	1	17.4	23.3	865
	1.5	19.9	25.9	1080
7T	0.75	19.3	25.3	995
	1	19.9	26.1	1105
	1.5	22.9	29.1	1390
8P	0.75	17.9	23.9	880
	1	18.5	24.7	970
	1.5	21.2	27.6	1230
	2.5	24	30.4	1555
8T	0.75	20.7	26.9	1125
	1	21.3	27.7	1245
	1.5	24.6	31	1595
	2.5	28.2	30.8	1730
12P	0.75	21.4	27.8	1195
	1	22.1	28.4	1305
	1.5	25.8	32.4	1720
	2.5	29.2	35.9	2180
12T	0.75	24.2	30.8	1505
	1	25.4	32	1700
	1.5	29.3	36.3	2205
16P	0.75	24.6	31.2	1525
	1	25.4	32	1675
	1.5	29.3	36.4	2170
16T	0.75	27.9	34.7	1915
	1	28.8	35.8	2140
	1.5	33.3	41	2865
19P	0.75	26.5	33.3	1745
	1	27.4	34.2	1920
	1.5	31.6	39.5	2555
19T	0.75	30.1	37.6	2280
	1	31.1	39	2565
	1.5	36.1	44	3325
24P	0.75	29.5	36.6	2115
	1	30.5	38.4	2455
	1.5	35.6	43.8	3205
24T	0.75	33.5	41.4	2790
	1	35	43.1	3160
	1.5	40.5	49.1	4130
32P	0.75	33.6	41.5	2760
	1	35.1	43.2	3115
	1.5	40.6	48.9	4025
32T	0.75	38.6	46.9	3570
	1	39.8	48.4	4000
	1.5	46.2	54.9	5210
