BFOU P5/P12/P105 0.6/1kV Cable

What is BFOU P105 Cable

BFOU P105 (Formerly P5 or P5/P12) is a fire-resistant, flame-retardant, and halogen-free power cable, designed for fixed installation in conditions where oil and gas rigs are usually working. This cable suitable for use in extreme temperatures, saline atmospheres, and where UV radiation, hydrocarbons, oils and drilling fluids and muds are present, meeting the requirements of NEK606. Our these cables  have been approved and certified by ABS (American Bureau of Shipping).

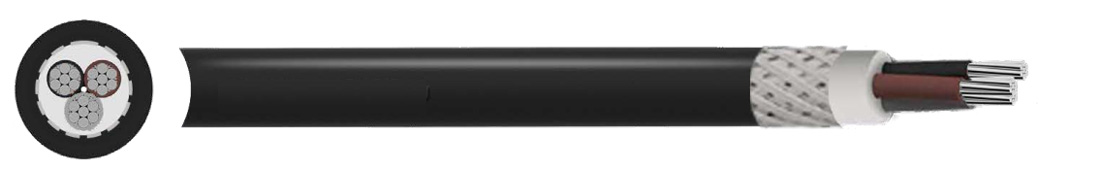

BFOU P105 Construction

Conductor	Class 2 Tinned Copper
Insulation	Mica Tape+ EPR HF (Ethylene Propylene Rubber Halogen Free) Compound
Bedding & Fillers	Fiberglass Tape + Fiberglass Fillers (Extruded)
Inner Sheath	Extruded Compound (Type SHF2)
Armour	TCWB (Tinned Copper Wire Braid)
Outer Sheath	Type SHF2 H-M Compound
Core Identification	1 cores：Black 2 cores: Blue Brown 3 cores: Brown Black 4 cores: Blue Brown Black Grey 5 cores: Blue, Brown, Black, Grey, Green/Yellow 7 core+: White and Numbered
Outer Sheath Colour	Black

BFOU P105 Characteristics

Voltage Rating	0.6/1kV
Maximum Operating Voltage	1.2kV
Temperature Rating	+90°C
Minimum Bending Radius	4 x Overall Diameter

BFOU P105 Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL BRAID CROSS SECTION	NOMINAL DIAMETER UNDER ARMOUR	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	mm2	mm	mm	kg/km
1	10	4	9.9	14.3	355
1	16	6	11	151	435
1	25	10	12.7	17.4	596
1	35	10	13.8	18.7	740
1	50	10	15	20.7	895
1	70	10	16.3	22.2	1150
1	95	10	18.7	24.9	1470
1	120	10	20.2	26.6	1770
1	150	10	21.8	28.4	2080
1	185	10	24.2	31	2585
1	240	10	26.9	33.9	3230
1	300	16	30.9	8.7	4000
2	1.5	6	10.1	14.8	345
2	2.5	6	11.3	16	410
2	4	10	13.1	17.8	510
2	6	10	13.7	18.6	590
2	10	10	16.7	22.4	800
2	16	10	18.9	25.1	1035
2	25	10	22.4	28.5	1395
2	35	10	24.6	30.7	1740
2	50	10	27.1	33.6	2150
3	1.5	6	10.7	15.5	380
3	2.5	6	12	16.7	460
3	4	10	14	18.7	570
3	6	10	14.6	20.3	685
3	10	10	17.8	23.5	920
3	16	10	20.2	26.4	1210
3	25	10	24.1	30.3	1690
3	35	10	26.5	33.1	2160
3	50	10	29.1	36.1	2690
3	70	16	32.1	40.1	3600
3	95	25	37.1	45.5	4715
3	120	25	40.8	49.6	5795
3	150	35	44.6	53.4	6830
3	185	35	49.8	59	8515
3	240	35	56.5	66.1	10860
3	300	35	63.8	74	13135
4	1.5	6	11.7	16.4	435
4	2.5	10	13.1	17.8	525
4	4	10	15.3	20.8	680
4	6	10	16	21.7	815
4	10	10	19.5	25.3	1100
4	16	10	22.2	28.4	1465
4	25	10	26.5	32.7	2065
4	35	10	29.1	35.7	2660
4	50	16	32.1	39.7	3420
4	70	25	35.4	43.4	4490
4	95	25	41	49.4	5900
4	120	35	45	53.8	7260
4	150	35	49.3	58.1	8590
4	185	35	55.5	65.1	10890
4	240	35	62.5	72.7	13860
5	1.5	10	13	17.8	515
5	2.5	10	14.4	19.1	615
5	4	10	16.6	22.4	800
5	6	10	17.6	23.4	965
5	10	10	21.5	27.3	1320
5	16	10	24.7	30.9	1800
5	25	10	29.3	35.9	2555
7	1.5	10	14.2	18.9	590
7	2.5	10	15.7	21.2	720
12	1.5	10	18.7	24.7	935
12	2.5	10	20.9	26.8	1155
19	1.5	10	22.1	28.2	1250
19	2.5	10	24.8	30.9	1590
27	1.5	10	26.8	33.4	1760
27	2.5	16	30.1	37.1	2310
37	1.5	16	30.3	37.8	2305
37	2.5	16	34	41.5	2915
