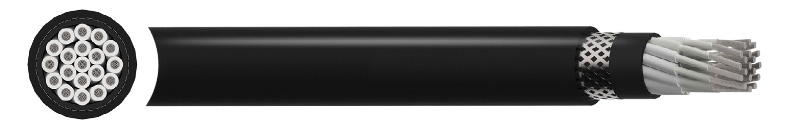

BFOU 0.6/1kV Power Cable

What is BFOU Cable？

BFOU cable is a NEK606 standard fire-resistant cable. It is widely used in the offshore oil and gas industry for emergency and critical applications ranging from fire alarms to lighting systems. NEK606 cable is the ideal choice for applications requiring halogen-free, flame-retardant, or fire-resistant properties—particularly where life-threatening hazardous gases may be present, or where acidic gases during a fire could damage sensitive equipment.



BFOU cable incorporates mica glass tape (MGT), which acts as a fire barrier. Standard BFOU cable is rated for 0.6/1kV power applications, while the BFOU (c) designation applies to S102 and S104 low-voltage power applications rated at 150/250V. The BFOU(i) designation applies to S101 and S103 instrument cables rated at 150/250V. Our these offshore cables have been approved and certified by ABS (American Bureau of Shipping).

BFOU 0.6/1kV Power Cable Construction

Conductor	Class 2 stranded tinned copper conductor
Tape	Mica glass tape
Insulation	Halogen free EPR (Ethylene Propylene Rubber)
Bedding	Halogen free compound
Screen	TCWB (Tinned Copper Wire Braid)
Sheath	SHF2, MUD (halogen free, mud resistant)free elastomer
Sheath Colour	Black

BFOU 0.6/1kV Power Cable Characteristics

Voltage Rating Uo/U	0.6/1kV
Test Voltage	3.5kV
Temperature Rating	-40°C to +90°C
Minimum Bending Radius	8 x overall diameter

BFOU 0.6/1kV Power Cable Specifications

NO. OF CORES	NOMINAL CROSS SECTIONAL AREA	NOMINAL OVERALL DIAMETER	NOMINAL WEIGHT
	mm2	mm	kg/km
1	1.5	9.3	150
1	2.5	9.8	170
1	4	10.4	200
1	6	10.9	230
1	10	11.9	290
1	16	13	380
1	25	15.4	550
1	35	16.6	670
1	50	18.1	860
1	70	20.1	1110
1	95	22.4	1420
1	120	24.4	1710
1	150	26.5	2050
1	185	28.8	2480
1	240	31.6	3160
1	300	35	3850
2	1.5	14.2	320
2	2.5	15.2	380
2	4	16.4	450
2	6	17.5	530
2	10	19.5	720
2	16	21.7	890
2	25	25.5	1280
2	35	28	1580
2	50	31	2050
3	1.5	14.9	360
3	2.5	16	430
3	4	17.3	520
3	6	18.4	620
3	10	20.7	820
3	16	23	1070
3	25	27.2	1850
3	35	29.8	1960
3	50	33.1	2580
3	70	38.3	3450
3	95	43.2	4480
3	120	48	5650
3	150	52.4	6800
3	185	57.5	8400
3	240	64	10810
4	1.5	16.1	430
4	2.5	17.3	510
4	4	18.7	620
4	6	20	740
4	10	22.6	1000
4	16	25.1	1320
4	25	29.8	1960
4	35	32.7	2450
4	50	37.3	3120
4	70	42.2	4440
4	95	48.1	5920
4	120	53	7210
4	150	58	8690
4	185	64.1	10700
5	1.5	17.4	490
5	2.5	18.7	590
5	4	20.3	690
5	6	21.8	860
5	10	24.6	1150
5	16	27.4	1600
5	25	32.6	2280
5	35	36.8	2960
5	50	40.9	4070
5	70	46.3	5350
5	95	52.9	7120
7	1.5	18.7	580
7	2.5	20.2	700
10	1.5	22.3	880
10	2.5	24.2	1060
12	1.5	24	930
12	2.5	26	1150
14	1.5	25.1	1040
14	2.5	27.2	1270
19	1.5	27.8	1250
19	2.5	30.2	1570
24	1.5	30.9	1550
24	2.5	34.1	2090
27	1.5	32.9	1720
27	2.5	36.8	2210
37	1.5	37.6	2220
37	2.5	41	2930
