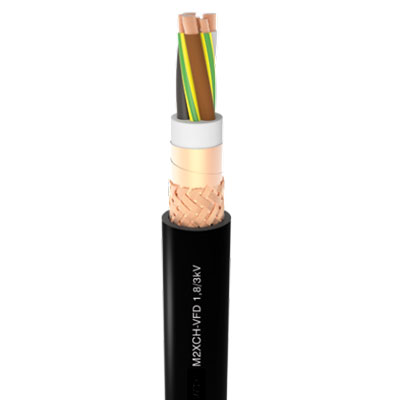

M2XCH VFD Cable Standards & Main Characteristics
Construction: IEC 60092 / 353
Tests And Material: IEC 60092 / 350-360
Flame Retardant: IEC 60332 / 1-2, IEC 60332 / 3-22 Cat A
Halogen Content: IEC 60754 / 1-2
Smoke Emission: IEC 61034 / 1-2 (DIN EN 50268 / 1-2)
Ozon Resistance: IEC 60811 / 403
Shielding Effectivenes (For Emc Type): DIN EN 50147-1
Working Temperature: -40°C / + 90°C
Min. Bending Radius (fixed): 6 x D
Rated Voltage: 1.8 / 3 (3.6) kV
Test Voltage: 6.5 kV
M2XCH VFD Cable Application
Used as fixed installation cables in various electromechanical and electronic equipments. Due to its’ overall screen the electromagnetic interference is minimized. It can be used as motor supply cable and for frequency converters controlled low voltage AC drives on ships, called VDF (Variable Frequency Drivers) applications.
M2XCH VFD Cable Core Identification
Two cores: Blue, Brown.
Three cores: Brown, Black, Grey.
Four cores: Blue, Brown, Black, Grey.
Five cores: Blue, Brown, Black, Grey, Black.
Multi cores: White with black numbers.
With yellow/green (optional)
Two cores + earth (3G): Yellow/green, Blue, Brown.
Three cores + earth (4G): Yellow/green, Brown, Black, Grey.
Four cores + earth (5G): Yellow/green, Blue, Brown, Black, Grey.
M2XCH - VFD 1,8 / 3 (3,6) kV cable Specifications
|
Cross Section (mm2) |
Nominal Overall Diameter (mm) |
Approximate Weight (kg / km) |
Min. Bending Radius Fixed Installed (mm) |
Max Resistance of Conductors at 20°C (ohm / km) |
Current Carrying Capacity at 45°C (A) |
|
1×10 |
8.8 |
180 |
53 |
1.83 |
72 |
|
1×16 |
9.9 |
245 |
60 |
1.15 |
96 |
|
1×25 |
12 |
332 |
72 |
0.727 |
127 |
|
1×35 |
13.6 |
480 |
82 |
0.524 |
157 |
|
1×50 |
15.6 |
644 |
94 |
0.387 |
196 |
|
1×70 |
17.5 |
895 |
105 |
0.268 |
242 |
|
1×95 |
19.7 |
1105 |
118 |
0.193 |
293 |
|
1×120 |
21.6 |
1359 |
130 |
0.153 |
339 |
|
1×150 |
24 |
1698 |
144 |
0.124 |
389 |
|
1×185 |
26.7 |
2106 |
160 |
0.0991 |
444 |
|
1×240 |
29.8 |
2656 |
179 |
0.0754 |
522 |
|
3×16 + 3×6 |
22.8 |
1180 |
137 |
1.15 |
67 |
|
3×25 + 3×6 |
25.8 |
1432 |
155 |
0.727 |
89 |
|
3×35 + 3×6 |
28.4 |
1830 |
171 |
0.524 |
110 |
|
3×50 + 3×10 |
33.3 |
2589 |
200 |
0.387 |
137 |
|
3×70 + 3×16 |
36.9 |
3474 |
222 |
0.268 |
169 |
|
3×95 + 3×16 |
41.4 |
4420 |
248 |
0.193 |
205 |
|
3×120 + 3×25 |
47.2 |
5592 |
283 |
0.153 |
237 |
|
3×150+ 3×25 |
51.2 |
6150 |
307 |
0.124 |
272 |
|
3×185 + 3×35 |
54.9 |
7650 |
330 |
0.0991 |
311 |
|
3×240 + 3×50 |
61.1 |
9700 |
367 |
0.0754 |
365 |
