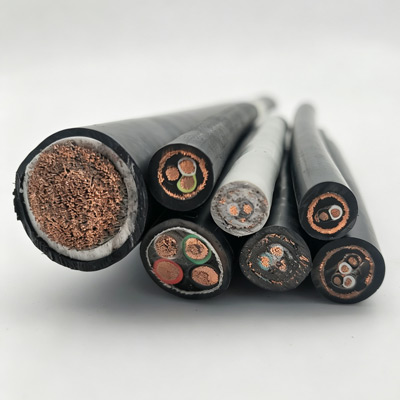

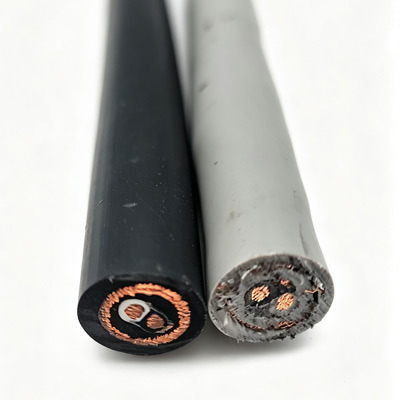

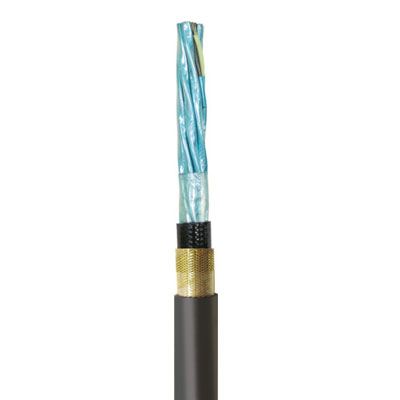

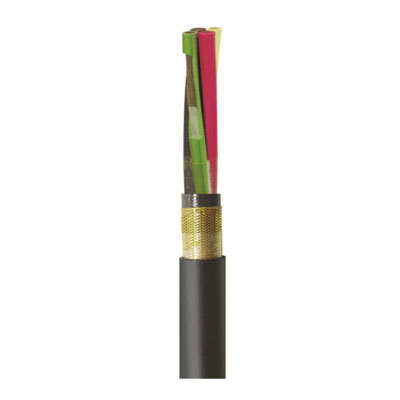

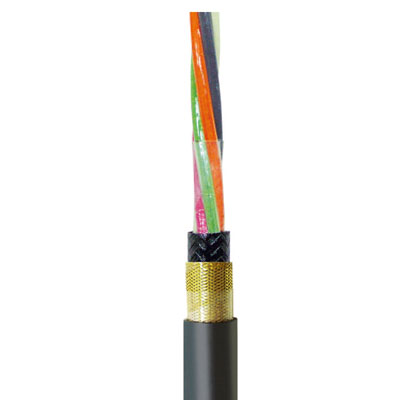

IEEE 1580 Type P Cable

Type P Rig Cables are especially designed for installation and use in harsh environments found inside offshore and onshore drilling rigs. These extreme environments may include severe cold, high heat, constant vibration, drilling mud, mechanical stress, and salt corrosion. As reliability on drilling rigs is a must, it is needed to have IEEE 1580 Type P cables that comply with strict standards and approvals.

IEEE 1580 Type P Cable Description

0.6/1kv Or 2kv Flexible Single Conductor
Marine/Offshore Power Cable
110°C Temperature Rating
Oil, Abrasion, Moisture, Petrochemical And Sunlight Resistant
ABS, DNV Approved
ETL, UL, CSA Listed

IEEE 1580 Type P Cable Specification:

Type P Single Conductor Power Cable

Size AWG/kcmil	Unarmored Diameter (inches)	Weight (lbs/MFt.)	Inductive Reactance (Ohms/k ft.)	Voltage Drop at 110°C (Volts/Amp/kft.)	DC Resistance at 25°C (Volts/Amp/kft.)	AC Resistance at 110°C, 60 Hz (Ohms/k ft.)
18	0.115	11	0.046	13.56	7.21	9.763
16	0.125	14	0.044	8.516	4.52	6.121
14	0.164	20	0.041	5.383	2.85	3.859
12	0.187	28	0.038	3.394	1.79	2.424
10	0.208	41	0.036	2.155	1.13	1.53
8	0.26	63	0.036	1.338	0.694	0.94
6	0.29	104	0.034	0.852	0.436	0.59
4	0.39	169	0.03	0.583	0.286	0.399
2	0.45	247	0.029	0.368	0.175	0.244
1	0.505	329	0.029	0.301	0.14	0.195
1/0	0.554	412	0.029	0.246	0.111	0.156
2/0	0.609	524	0.028	0.202	0.089	0.125
3/0	0.659	631	0.028	0.167	0.07	0.1

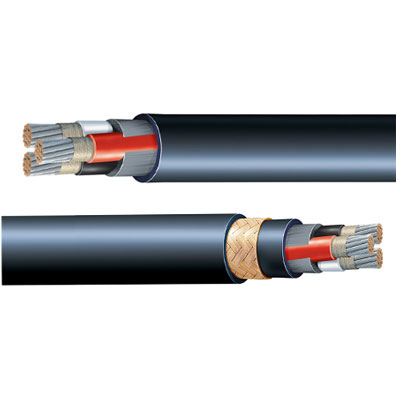

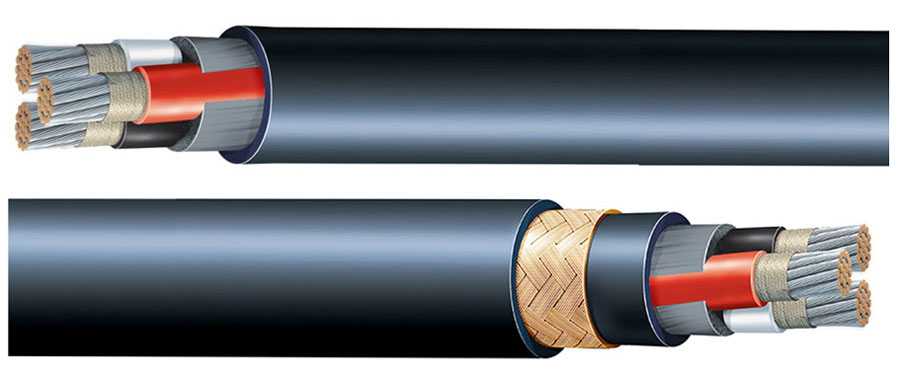

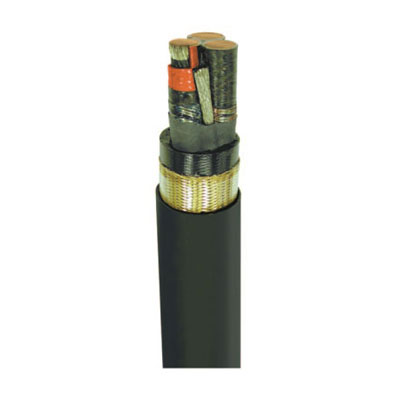

Type P Four Conductor Power Cable

		Unarmored		Armored (B)		Armored and Sheath (BS)
Size AWG/kcmil	mm2	Nominal Diameter (inches)	Weight (lbs/ MFt.)	Nominal Diameter (inches)	Weight (lbs/ MFt.)	Nominal Diameter (inches)	Weight (lbs/ MFt.)	DC Resistance at 25°C	AC Resistance 110°C,       60 Hz	Inductive Reactance	Voltage Drop 110°C	Ampacity
												110°C	100°C	95°C
16	1.3	0.402	97	0.452	160	0.62	222	4.61	6.121	0.042	8.514	17	16	16
14	2.1	0.438	126	0.488	196	0.65	262	2.907	3.859	0.039	5.382	27	25	22
12	3.3	0.486	170	0.536	247	0.668	319	1.826	2.424	0.037	3.393	33	31	27
10	5.2	0.585	267	0.635	361	0.788	458	1.153	1.53	0.035	2.154	44	41	36
8	7.6	0.71	375	0.76	489	0.93	668	0.708	0.94	0.037	1.339	56	52	48
6	12.5	0.795	563	0.845	661	1.04	872	0.445	0.59	0.035	0.853	75	70	64
4	21	1.04	898	1.1	1066	1.295	1272	0.3	0.399	0.032	0.585	99	92	85
2	34	1.191	1358	1.241	1476	1.472	1734	0.184	0.244	0.03	0.369	131	122	113
1	43	1.37	1732	1.42	1817	1.61	2222	0.147	0.195	0.031	0.302	153	143	131
1/0	54	1.47	2042	1.52	2278	1.775	2642	0.117	0.156	0.03	0.248	176	164	152
2/0	70	1.61	2715	1.66	2807	1.914	3441	0.093	0.125	0.03	0.203	201	188	175
3/0	86	1.786	3234	1.836	3333	2.103	3781	0.074	0.1	0.029	0.168	234	218	202
4/0	109	1.985	4043	2.035	4376	2.304	4957	0.058	0.08	0.029	0.14	270	252	235
262	132	2.203	4699	2.253	5051	2.5	5595	0.048	0.067	0.029	0.122	315	294	267
313	159	2.325	5506	2.375	5879	2.587	6358	0.04	0.056	0.028	0.107	344	321	299
373	189	2.475	6417	2.525	6813	2.84	8270	0.034	0.047	0.028	0.095	387	361	334
444	227	2.675	7532	2.726	8068	3.054	8886	0.028	0.041	0.028	0.086	440	411	372
535	273	3.025	9634	3.075	9849	3.417	10770	0.024	0.035	0.028	0.077	463	443	418
646	326	3.215	11600	3.265	11840	3.59	12895	0.02	0.03	0.029	0.071	553	516	470

IEEE 1580 Type P Cable Standards

IEEE 45 (2004), IEEE 1580 (2010), UL 1309 (2011)
Type P Insulation: IEEE 1580, UL 1309 TYPE X110
Type N Sheath: IEEE 1580, UL 1309
Flame Retardant: IEEE 1202 VW-1, IEC 60332-3 CAT. A
Fire Resistant: IEC 60331-1/2/21 (OPTIONAL)
Cold Bend/Impact: CSA 22.2 NO. 03 (-40°C/-35°C)

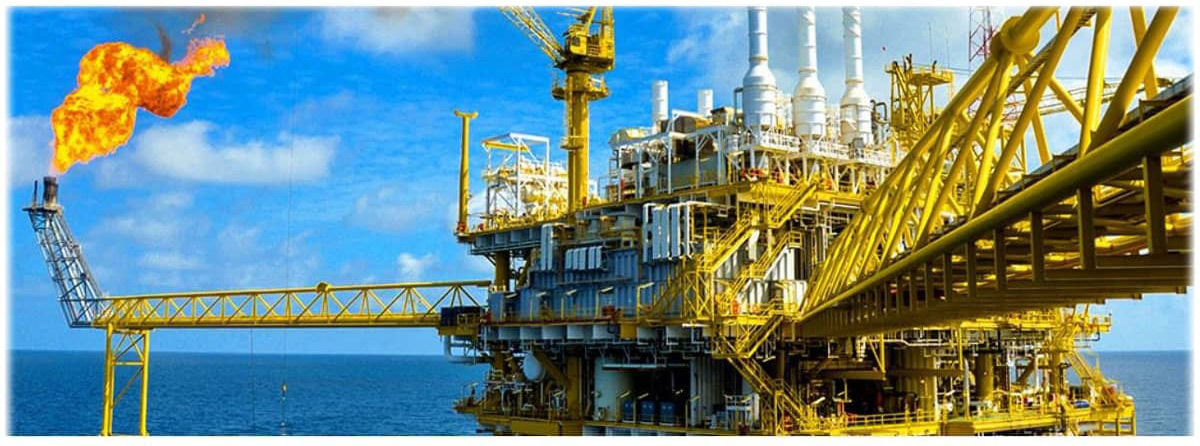

IEEE 1580 Type P Cable Application

Designed and constructed for the demanding environments of offshore drilling and petroleum facilities located throughout the world.

IEEE 1580 Type P Cable Why Choose Huadong

As a professional IEEE 1580 Type P Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our IEEE 1580 Type P Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
