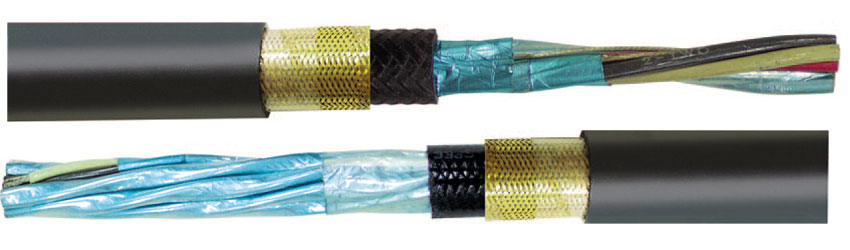

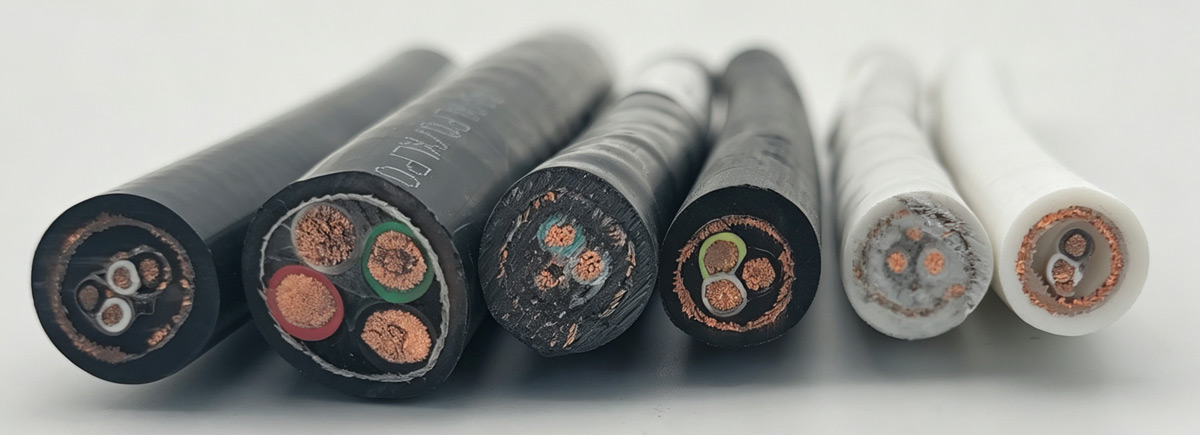

Type P Flexible Armoured and Shielded Instrumentation Cable

Type P Shielded Instrumentation Cable Description

0.6/1kv Flexible Shielded Pairs/Triads Signal
110°C Temperature Rating
Oil, Abrasion, Moisture, Petrochemical And Sunlight Resistant
ABS, DNV Approved
ETL, UL, CSA Listed

Type P Shielded Instrumentation Cable Features

High strand count conductors make this product much more flexible, easier to install and more resistant to vibration than Type MC, IEC spec or commercial cables.
Lower dielectric constant and higher insulation resistance reduces electrical losses.
Excellent resistance to moisture produces stable electrical properties throughout the life of the cable.
In a fire condition, nonchlorinated flame retardant system produces less toxic and less corrosive gases.
Flame retardant: IEC 332-3 Category A
Optional braid armor of bronze or tinned copper
Severe cold durability: exceeds CSA cold bend/cold impact (-40˚C/-35˚C).
Suitable for use in Class I, Division 1 and Zone 1 environments (armored and sheathed).
Optional braid armor of bronze or tinned copper.

Shielded Pairs Instrumentation Cable Specification

		Unarmored		Armored (B)		Armored and Sheath (BS)
Size AWG	Number of Pairs	Nominal Diameter (inches)	Weight (lbs/MFt.)	Nominal Diameter (inches)	Wei	Nominal Diameter (inches)	Weight (lbs/MFt.)
					ght (lbs/MFt.)
18	1	0.336	57	0.386	149	0.535	151
18	2	0.518	140	0.568	223	0.72	294
18	3	0.581	177	0.631	270	0.78	497
18	4	0.625	212	0.675	405	0.82	558
18	5	0.665	257	0.715	359	0.889	505
18	7	0.76	306	0.81	431	1.017	592
18	8	0.782	342	0.832	468	1.027	607
18	10	0.965	468	1.015	625	1.215	1020
18	12	0.99	533	1.04	692	1.261	1089
18	16	1.093	661	1.143	843	1.338	1325
18	18	1.23	776	1.28	973	1.488	1216
18	24	1.442	958	1.492	1194	1.758	1564
16	1	0.356	68	0.406	165	0.56	166
16	2	0.584	190	0.634	282	0.787	501
16	3	0.63	220	0.68	320	0.875	558
16	4	0.648	248	0.698	346	0.893	671
16	5	0.715	299	0.765	420	0.932	541
16	7	0.81	365	0.86	494	1.034	638
16	8	0.885	448	0.935	589	1.114	724
16	10	1.03	763	1.08	736	1.289	1222
16	12	1.065	631	1.115	808	1.31	1014
16	16	1.175	806	1.225	1049	1.396	1237
16	18	1.259	901	1.309	1112	1.504	1317
16	20	1.315	1011	1.365	1222	1.582	1461
16	24	1.472	1120	1.522	1361	1.755	1685
14	1	0.386	87	0.436	149	0.589	193
14	2	0.634	264	0.684	365	0.879	543
14	3	0.67	348	0.72	375	0.811	448
14	4	0.736	324	0.786	440	0.991	799
14	5	0.772	392	0.822	515	1.031	678
14	7	0.929	528	0.979	676	1.187	866
14	8	0.956	548	1.006	736	1.18	911
14	10	1.117	706	1.167	886	1.35	1077
14	12	1.205	851	1.255	1037	1.45	1275

Shielded Triads Instrumentation Cable Specification

		Unarmored		Armored (B)		Armored and Sheath (BS)
Size AWG	Number of Pairs	Nominal Diameter (inches)	Weight (lbs/MFt.)	Nominal Diameter (inches)	Wei	Nominal Diameter (inches)	Weight (lbs/MFt.)
					ght (lbs/MFt.)
18	1	0.354	69	0.404	160	0.557	167
18	2	0.649	204	0.702	303	0.876	430
18	3	0.703	236	0.753	345	0.927	477
18	4	0.775	316	0.825	398	0.975	594
18	5	0.889	353	0.939	497	1.113	658
18	7	0.957	461	1.007	614	1.202	785
18	8	1.025	589	1.075	735	1.14	900
18	12	1.221	792	1.271	990	1.642	1195
16	1	0.376	81	0.426	206	0.579	265
16	3	0.76	366	0.81	411	1.018	571
16	4	0.82	410	0.87	457	1.001	646
16	6	0.95	628	1	791	1.198	1024
16	7	1.029	524	1.079	688	1.248	1026
16	8	1.108	684	1.158	793	1.312	1101

Type P Shielded Instrumentation Cable Standards

IEEE 45 (2004), IEEE 1580 (2010), UL 1309 (2011)
Type P Insulation: IEEE 1580, UL 1309 TYPE X110
Type N Sheath: IEEE 1580, UL 1309
Flame Retardant: IEEE 1202 VW-1, IEC 60332-3 CAT. A
Fire Resistant: IEC 60331-1/2/21 (OPTIONAL)
Cold Bend/Impact: CSA 22.2 NO. 03 (-40°C/-35°C)

Type P Shielded Instrumentation Cable Application

Designed and constructed for the demanding environments of offshore drilling and petroleum facilities located throughout the world.

Type P Shielded Instrumentation Cable Why Choose Huadong

As a professional Type P Shielded Instrumentation Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our Type P Shielded Instrumentation Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
