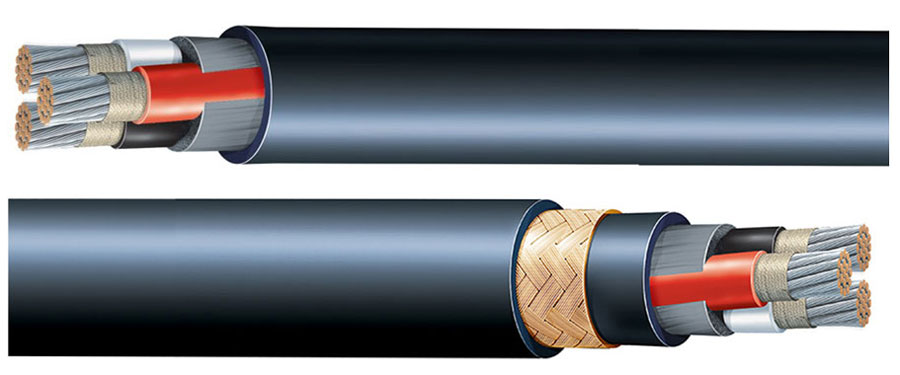

Type P Three Conductor Armored （Unarmored） Power Cable

Type P Three Conductor Power Cable Description

0.6/1kv Flexible Two -Five Conductor
Marine/Offshore Power Cable
110°C Temperature Rating
Oil, Abrasion, Moisture, Petrochemical And Sunlight Resistant

Type P Three Conductor Power Cable Features

High strand count conductors make this product much more flexible, easier to install and more resistant to vibration than Type MC, IEC spec or commercial cables.
Lower dielectric constant and higher insulation resistance reduces electrical losses.
Excellent resistance to moisture produces stable electrical properties throughout the life of the cable.
In a fire condition, nonchlorinated flame retardant system produces less toxic and less corrosive gases.
Flame retardant: IEC 332-3 Category A
Optional braid armor of bronze or tinned copper
Severe cold durability: exceeds CSA cold bend/cold impact (-40˚C/-35˚C).
Flame retardant: IEC 332-3 Category A
Suitable for use in Class I, Division 1 and Zone 1 environments (armored and sheathed).
Optional braid armor of bronze or tinned copper.

Type P Three Conductor Power Cable Specification:

		Unarmored		Armored (B)		Armored and Sheath (BS)
Size AWG/kcmil	mm2	Nominal Diameter (inches)	Weight (lbs/ MFt.)	Nominal Diameter (inches)	Weight (lbs/ MFt.)	Nominal Diameter (inches)	Weight (lbs/ MFt.)	DC Resistance at 25°C (Ohms/1000ft.	AC Resistance 110°C,       60 Hz(Ohms/1000 ft.)	Inductive Reactance (Ohms / 1000 ft.)	Voltage Drop 110°C(Volts/Amp/1000 ft.)	Ampacity
												110°C	100°C	95°C
16	1.3	0.369	80	0.419	138	0.572	246	4.61	6.121	0.039	8.511	17	16	16
14	2.1	0.401	103	0.451	167	0.599	228	2.907	3.859	0.036	5.379	27	25	22
12	3.3	0.445	138	0.495	209	0.648	275	1.826	2.424	0.034	3.39	33	31	27
10	5.2	0.488	185	0.538	262	0.69	334	1.153	1.53	0.032	2.151	44	41	36
8	7.6	0.64	316	0.69	397	0.82	533	0.708	0.94	0.034	1.336	56	52	48
6	12.5	0.735	449	0.785	546	0.96	734	0.445	0.59	0.032	0.85	75	70	64
4	21	0.95	754	1	862	1.185	1108	0.3	0.399	0.029	0.582	99	92	85
2	34	1.1	1079	1.15	1209	1.345	1489	0.184	0.244	0.028	0.366	131	122	113
1	43	1.23	1375	1.28	1516	1.455	1810	0.147	0.195	0.028	0.299	153	143	131
1/0	54	1.335	1667	1.385	1814	1.571	2160	0.117	0.156	0.028	0.245	176	164	152
2/0	70	1.485	2062	1.535	2278	1.685	2532	0.093	0.125	0.027	0.2	201	188	175
3/0	86	1.56	2458	1.61	2869	1.825	2909	0.074	0.1	0.027	0.166	234	218	202
4/0	109	1.764	3197	1.814	3194	2.068	4034	0.058	0.08	0.026	0.138	270	252	235
262	132	2.005	3896	2.055	4233	2.26	4824	0.048	0.067	0.026	0.119	315	294	267
313	159	2.1	4269	2.15	4481	2.373	5061	0.04	0.056	0.026	0.105	344	321	299
373	189	2.25	4903	2.3	5265	2.55	6327	0.034	0.047	0.025	0.092	387	361	334
444	227	2.378	6219	2.428	6089	2.682	7344	0.028	0.041	0.025	0.083	440	411	372
535	273	2.7	7279	2.75	7717	3.045	8299	0.024	0.035	0.026	0.075	498	443	418
646	326	2.88	8101	2.938	8873	3.295	9838	0.02	0.03	0.026	0.068	553	516	470
777	394	3.175	10077	3.225	10590	3.554	11549	0.016	0.026	0.026	0.063	602	562	529

Type P Three Conductor Power Cable Standards

IEEE 45 (2004), IEEE 1580 (2010), UL 1309 (2011)
Type P Insulation: IEEE 1580, UL 1309 TYPE X110
Type N Sheath: IEEE 1580, UL 1309
Flame Retardant: IEEE 1202 VW-1, IEC 60332-3 CAT. A
Fire Resistant: IEC 60331-1/2/21 (OPTIONAL)
Cold Bend/Impact: CSA 22.2 NO. 03 (-40°C/-35°C)

Type P Three Conductor Power Cable Application

Designed and constructed for the demanding environments of offshore drilling and petroleum facilities located throughout the world.

Type P Three Conductor Power Cable Why Choose Huadong

As a professional Type P Three Conductor Power Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our Type P Three Conductor Power Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.
