ACSR Conductor Animal Names

acsr panther conductor

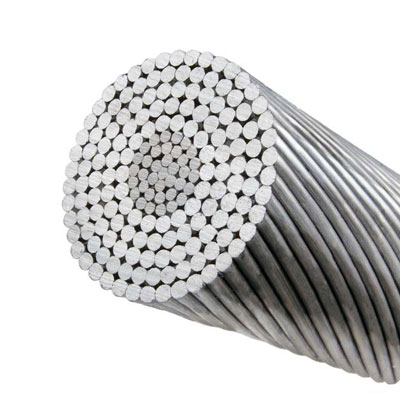

ACSR Panther Conductor

  • Brand Name: HuaDong Cable
  • Product Name:acsr panther conductor
  • Conductor Material: Aluminum And Steel
  • Standard: IEC, BS, ICEA, ASTM, DIN and other standards
  • Application: Overhead, Overhead Transmission
  • Email: huadong@hdcablegroup.com
  • Discount Price

What’s the acsr panther conductor?


With the active support of our team of experts, we are engaged in offering the most sought after range of ACSR (Aluminum Conductor Steel Reinforced) Panther Conductor. The products offered by us are made keeping in mind the requirements of our clients. We make use of the stranded steel re-inforced conductors shall be manufactured from hard-drawn electrolytic aluminium wires of E.C grade having purity more than 99.5% in manufacturing to ensure the robust performance and sturdy construction of the ACSR Conductor.


What is the characteristic of acsr panther conductor?


ACSR panther conductor belongs to the BS-215 standard acsr conductor. Its aluminum area is 200 mm2. It strands 30 aluminum, which the diameter is 3 mm. There are 7 steels, which the diameter also is 3 mm. Through the calculation, we can know the overall diameter is 21 mm. Among them, the sectional area of aluminum is 212.1 mm2, and the total sectional area is 261.5 mm2. After final cabling,  it should be tested strictly. For the whole cable, the total linear mass should be 974 kg/km, and the calculated breaking load should be 9225 daN. In the normal situation, the current rating of panther conductor is 421 A. At 20℃, the calculated D.C resistance should be 0.1363Ω/km.


What is the specification of acsr panther conductor?


Code name acsr panther conductor
Nominal aluminum area mm 2 200
Stranding structure Al. No. 30
Al. Dia. 3
St. No. 7
St. Dia 3
Sectional area of aluminum mm 2 212.1
Total sectional area mm 2 261.5
Overall diameter mm 21
  kg/km 974
Calculated breaking load daN 9225
Calculate D.C resistance at 20 ℃ Ω/km 0.1363
Current Rating A 421

ACSR panther conductor why choose HuaDong?


As a professional acsr panther conductor manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our acsr panther conductor export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.

For the best acsr panther conductor price, Please feel free to leave your requirement, We will reply you in 12 hours.
