ACSR Conductor Animal Names

acsr rabbit conductor

ACSR Rabbit Conductor

  • Brand Name: HuaDong Cable
  • Product Name:acsr rabbit conductor
  • Conductor Material: Aluminum And Steel
  • Standard: IEC, BS, ICEA, ASTM, DIN and other standards
  • Application: Overhead, Overhead Transmission
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is acsr rabbit conductor?

Form the name, we can know the acsr rabbit conductor is aluminum conductor steel reinforced. acsr rabbit conductor belongs to BS-215 standard, which is British standard.
The nominal aluminum area of acsr rabbit conductor is 50 mm2. it strands aluminum and steels with the same diameter. Their diameter is 3.35 mm. Among them, the aluminum number is 6, and the steel number is 1. From the accurate calculation, we can know the overall diameter is 10.05 mm. The sectional area of aluminum is 52.88 mm2, and total sectional area is 61.70 mm2. After the final cabling of acsr rabbit conductor, the total linear mass should be 214 kg/km. You can use this simple data to test if it is qualified. There are other acsr rabbit conductor specifications. For example, the calculated breaking load 1835 daN, and the calculated D.C resistance is 0.5426 Ω/km at 20 ℃. When rabbit conductor is working, the current rating should be 185A.

acsr rabbit conductor

What is the specification of acsr rabbit conductor?

Code name acsr rabbit conductor
Nominal aluminum area mm 2 50
Stranding structure Al. No. 6
Al. Dia. 3.35
St. No. 1
St. Dia 3.35
Sectional area of aluminum mm 2 52.88
Total sectional area mm 2 61.7
Overall diameter mm 10.05
  kg/km 214
Calculated breaking load daN 1835
Calculate D.C resistance at 20 ℃ Ω/km 0.5426
Current Rating A 185

acsr rabbit conductor

What is the advantage of acsr rabbit conductor?

Do you know why acsr rabbit conductor is so popular? In general, it combines stranded steel with aluminum. So it has many superiority compared with the traditional stranded wire. Let’s see the advantages of acsr rabbit conductor together.
Firstly, the structure of rabbit conductor is stranded steel surrounded by aluminum. And there is a provision for rabbit conductor size. So the simple construction makes sure that the installation time of acsr rabbit conductor can be reduced, which will supply convenience for your life.
Secondly, rabbit conductor has high strength. The inner core of acsr rabbit conductor is stranded steel, and it has higher tensile strength than other conductors. Owing to this characteristic, the steel core can increase acsr rabbit conductor strength and support the weight. So it is possible for the conductor to resist wind, snow and other weather. Besides, the high strength can enable the longer span.
Thirdly, the conductivity performance of acsr rabbit conductor is very satisfactory. As we all know, the aluminum has strong power transmission capability. There is small heat and resistance in the process of the electricity transmission. What’s more, the weight of aluminum is very light, which greatly improves acsr rabbit’s competitivene

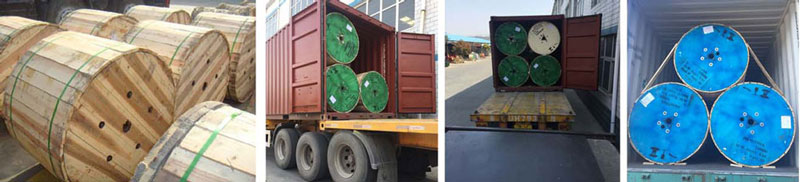

acsr rabbit conductor packing

What is the application of acsr rabbit conductor?

Ground wire overheads
Extra long span installations
River Crossings

acsr rabbit conductor why choose HuaDong?

As a professional acsr rabbit conductor manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our acsr rabbit conductor export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.

Any cable inquiry please feel free to contact us.
