ACSR Conductor Size

266.8 mcm waxwing acsr cable

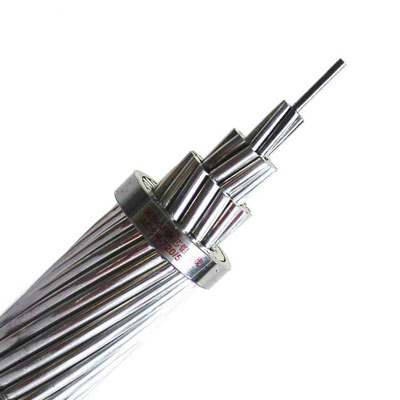

266.8 MCM Waxwing ACSR Aluminum Conductor Steel Reinforced

  • Brand Name: HuaDong Cable
  • Product Name:266.8 mcm waxwing acsr cable
  • Conductor Material: Aluminum And Steel
  • Standard: IEC, BS, ICEA, ASTM, DIN and other standards
  • Application: Overhead, Overhead Transmission
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is 266.8 MCM Waxwing ACSR Cable ?


Aluminium Conductors Steel Reinforced (ACSR), also known as Bare aluminium conductors, are one of the most widely used conductors for transmission. 266.8 Waxwing ACSR Cable consists of one or more layers of aluminium wires stranded over a high strength steel core that can be single or multiple strands depending on the requirement. There can be various stranding combinations of Al and steel wires lending flexibility to obtain suitable current carrying capacity and mechanical strength for the application.


What is the specifications of 266.8 MCM Waxwing ACSR Cable ?


Size (AWG or MCM): 266.8
Stranding (AL/STL): 18/1
Diameter Inches: Aluminum: 0.1217
Diameter Inches: Steel: 0.1217
Diameter Inches: Steel Core: 0.1217
Diameter Inches: Cable OD: 0.609
Weight lb/1000FT: Aluminum: 250.3
Weight lb/1000FT: Steel: 39.2
Weight lb/1000FT: Total: 289.5
Content %: Aluminum: 86.45
Content %: Steel: 13.55
Rate Breaking Strength (lbs.): 6,880
OHMS/1000ft: DC at 20ºC: 0.0643
OHMS/1000ft: AC at 75ºC: 0.079
Ampacity: 449 Amps


What is the application of 266.8 Waxwing ACSR Cable ?


266.8 Waxwing ACSR Cable is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises.
ACSR (aluminum conductor steel reinforced) conductor has a long service record because of its economy, dependability, and strength to weight ratio. The combined light weight and high conductivity of aluminum with strength of the steel core enables higher tensions, less sag, and longer spans than any alternative.


What is the standards of 266.8 Waxwing ACSR Cable ?


ASTM B-230 Aluminum wire, 1350-H19 for Electrical Purposes
ASTM B-231 Aluminum conductors, concentric lay stranded
ASTM B-232 Aluminum conductors, concentric lay stranded, coated steel reinforced (ACSR)
ASTM B-341 Aluminum coated steel core wire for aluminum conductors, steel reinforced (ACSR/AZ)
ASTM B-498 Zinc coated steel core wire for aluminum conductors, steel reinforced (ACSR)


266.8 Waxwing ACSR Cable why choose HuaDong?


As a professional 266.8 Waxwing ACSR Cable manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our 266.8 Waxwing ACSR Cable export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.

For the best 266.8 mcm waxwing acsr cable price, Please feel free to leave your requirement, We will reply you in 12 hours.
