ACSR Conductor Animal Names

acsr wolf conductor

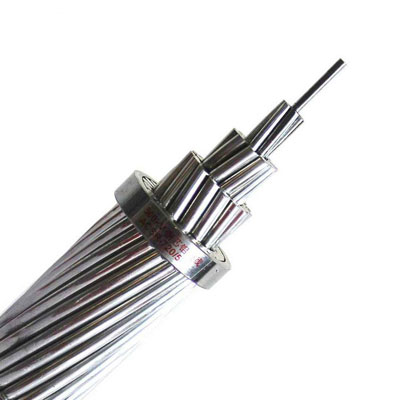

ACSR Wolf Conductor

  • Brand Name: HuaDong Cable
  • Product Name:acsr wolf conductor
  • Conductor Material: Aluminum And Steel
  • Standard: IEC, BS, ICEA, ASTM, DIN and other standards
  • Application: Overhead, Overhead Transmission
  • Email: huadong@hdcablegroup.com
  • Discount Price

What is the ACSR Wolf Conductor ?


ACSR wolf conductor is one of the aluminum conductor steel reinforced. It belongs to ACSR-BS215 standards. In general, it strands 30 aluminum and 7 steels. The same as other BS215 conductor, the diameter of them is also same. They are 2.59 mm. So we can know the overall diameter is 18.13 mm. The standard nominal aluminum area is 150 mm2. In view of some errors in the production, the actual sectional area may be 158.10. It is a very reasonable data. Then total sectional area is 194.90 mm2. From the calculation, the total linear mass should be 726 kg/km. After the cabling, the calculated breaking should be 6920 daN. When the power goes through acsr wolf conductor, the current rating is 355 A. At 20℃, the calculate D.C. resistance is 0.1828 Ω/km. This is the basic wolf conductor size.


What is the specification of ACSR Wolf Conductor ?


Code name ACSR Wolf Conductor
Nominal aluminum area mm 2 150
Stranding structure Al. No. 30
Al. Dia. 2.59
St. No. 7
St. Dia 2.59
Sectional area of aluminum mm 2 158.1
Total sectional area mm 2 194.9
Overall diameter mm 18.13
Total kg/km 726
Calculated breaking load daN 6920
Calculate D.C resistance at 20 ℃ Ω/km 0.1828
Current Rating A 355


What is the application of ACSR Wolf Conductor ?


ACSR Wolf Conductor  is a special type of aluminum conductor steel reinforced,has high strength of steel and good electrical conductivity. As well as light weight of aluminum. So the conductor has greatly improved the connection. It is used as bare overhead transmission conductor. And as primary and secondary distribution conductor and messenger support.


ACSR Wolf Conductor why choose HuaDong?


As a professional acsr wolf conductor manufacturer, HuaDong has over 30 years of production experience and 15 years of export experience.Our acsr wolf conductor export such as South Africa, Philippines, Indonesia, Malaysia, Singapore, Vietnam, Korea, Mongolia, Yemen, Cambodia, Thailand, Kenya, Tanzania, UAE, Botswana,Nigeria, Panama, Iran etc.High quality service and production are the first choice of many customers.

For the best acsr wolf conductor price, Please feel free to leave your requirement, We will reply you in 12 hours.
