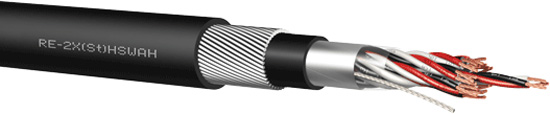

RE-2X(St)HSWAH PIMF / TIMF

What is RE-2X(St)HSWAH

RE-2X(St)HSWAH PIMF / TIMF cable is used for communication and instrumentation purposes in industries including oil exploration, cement, paper, steel, power generation, and others. It is also employed in intrinsically safe systems within hazardous areas such as petrochemical plants and thermal power stations to monitor measurement equipment in process automation applications. HFFR types exhibit low combustibility during fires, are largely self-extinguishing, produce low smoke density, and do not release toxic or corrosive gases when exposed to fire. Armored types provide mechanical strength and protect cable cores from external mechanical impacts.



These cables connect instrumentation and control systems to transmit analog or digital signals, suitable for both indoor and outdoor applications. They must not be directly connected to mains power or other low-impedance power sources, as they are not designed for power supply purposes.

RE-2X(St)HSWAH PIMF / TIMF Construction

	RE-2X(St)HSWAH	RE-2X(St)HSWAH PIMF	RE-2X(St)HSWAH TIMF
Conductor	Electrolytic, stranded, annealed plain copper wires Class 2 (Class 1 or Class 5 and / or tinned on request)
Insulation	XLPE compound Black / White twisted pairs with numbered cores		XLPE compound Black / White / Red twisted triads with numbered cores
Binder Tape	Polyester foil on overall cable core formed by stranded pairs	Polyester foil on each twisted pair	Polyester foil on each twisted triad
Individual Screen		Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Binder Tape		Polyester foil on overall cable core formed by stranded pairs
Collective Screen	Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Inner Sheath	LSZH compound
Armour	Round galvanised steel wires
Outer Sheath	Halogen free flame retardant LSZH compound to EN50290-2-27 Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable Gray for indoor applications Other colours on request

RE-2X(St)HSWAH PIMF / TIMF Electrical Characteristics

Conductor size (Class 2)	nom.	mm2	0.5	0.75	1	1.3	1.5	2.5
Conductor resistance	max.	Ω/km	36.7	25	18.5	14.2	12.3	7.6
Insulation resistance	min.	MΩxkm	5000
Mutual Capacitance	max.	nF/km	150
Inductance	max.	mH/km	1
L/R ratio	max.	µH/Ω	25	25	25	40	40	60

RE-2X(St)HSWAH PIMF / TIMF Specifications

RE-2X(St)HSWAH PIMF	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)	RE-2X(St)HSWAH TIMF	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)
	2x2x0,5	14.7	361		2x3x0,5	15.6	402
	4x2x0,5	16.3	447		4x3x0,5	17.6	517
	5x2x0,5	17.5	508		5x3x0,5	18.8	580
	6x2x0,5	18.7	560		6x3x0,5	20.7	752
	8x2x0,5	21.3	775		8x3x0,5	22.8	814
	10x2x0,5	23.3	890		10x3x0,5	25.4	1038
	12x2x0,5	23.9	950		12x3x0,5	26	1109
	16x2x0,5	26.2	1118		16x3x0,5	28.3	1308
	20x2x0,5	28.6	1281		20x3x0,5	31.2	1526
	24x2x0,5	32	1660		24x3x0,5	35.3	1992
	2x2x0,75	15.8	408		2x3x0,75	16.7	454
	4x2x0,75	17.8	521		4x3x0,75	19	591
	5x2x0,75	19	578		5x3x0,75	21	784
	6x2x0,75	21	761		6x3x0,75	22.6	878
	8x2x0,75	23.2	890		8x3x0,75	24.8	1028
	10x2x0,75	25.7	1043		10x3x0,75	27.6	1207
	12x2x0,75	26.4	1115		12x3x0,75	28.4	1309
	16x2x0,75	29	1325		16x3x0,75	31.2	1563
	20x2x0,75	32.6	1723		20x3x0,75	35.5	2067
	24x2x0,75	35.9	1998		24x3x0,75	38.9	2378
	2x2x1	16.2	425		2x3x1	17.1	477
	4x2x1	18.3	550		4x3x1	19.4	632
	5x2x1	19.5	616		5x3x1	21.7	843
	6x2x1	21.8	815		6x3x1	23.2	935
	8x2x1	23.8	951		8x3x1	25.6	1110
	10x2x1	26.5	1108		10x3x1	28.4	1302
	12x2x1	27.2	1197		12x3x1	29.4	1432
	16x2x1	29.8	1415		16x3x1	33	1900
	20x2x1	33.6	1856		20x3x1	36.7	2262
	24x2x1	37.2	2170		24x3x1	40.2	2600
	2x2x1,3	16.9	460		2x3x1,3	18.1	527
	4x2x1,3	19.1	604		4x3x1,3	21	816
	5x2x1,3	21.4	805		5x3x1,3	22.7	930
	6x2x1,3	22.9	902		6x3x1,3	24.3	1043
	8x2x1,3	25.3	1068		8x3x1,3	26.9	1243
	10x2x1,3	28	1240		10x3x1,3	30.1	1473
	12x2x1,3	28.9	1347		12x3x1,3	31	1610
	16x2x1,3	32.3	1785		16x3x1,3	35.1	2190
	20x2x1,3	35.9	2123		20x3x1,3	38.7	2571
	24x2x1,3	39.4	2441		24x3x1,3	42.5	2958
	2x2x1,5	17.5	490		2x3x1,5	18.6	554
	4x2x1,5	19.6	630		4x3x1,5	21.9	877
	5x2x1,5	21.9	850		5x3x1,5	23.5	986
	6x2x1,5	23.4	940		6x3x1,5	25.4	1118
	8x2x1,5	25.9	1114		8x3x1,5	27.9	1328
	10x2x1,5	28.9	1308		10x3x1,5	31.2	1572
	12x2x1,5	29.7	1421		12x3x1,5	33	1923
	16x2x1,5	33.3	1885		16x3x1,5	36.7	2348
	20x2x1,5	37.1	2260		20x3x1,5	40.4	2753
	24x2x1,5	40.7	2595		24x3x1,5	45.2	3482
	2x2x2,5	19.7	594		2x3x2,5	22	822
	4x2x2,5	23.2	926		4x3x2,5	25.1	1109
	5x2x2,5	25.1	1062		5x3x2,5	27	1273
	6x2x2,5	26.9	1188		6x3x2,5	29.2	1442
	8x2x2,5	29.9	1432		8x3x2,5	33.2	1935
	10x2x2,5	34.6	1935		10x3x2,5	37.6	2348
	12x2x2,5	35.6	2105		12x3x2,5	38.7	2575
	16x2x2,5	39.1	2502		16x3x2,5	43.4	3401
	20x2x2,5	44.2	3270		20x3x2,5	48.5	4067
	24x2x2,5	48.9	3804		24x3x2,5	53.3	4708
