RE-Y(St)Y-fl PIMF / RE-Y(St)Y-fl TIMF

RE-Y(St)Y-fl PIMF / RE-Y(St)Y-fl TIMF Application

EN 50288-7 RE-Y(St)Y-fl PIMF / RE-Y(St)Y-fl TIMF cables used for connecting instruments and control systems for analogue or digital signal transmission for indoor and outdoor applications.These cables shall not be connected directly to mains electricity supply or other low impedance sources, since they are not designed to be used for power supply.

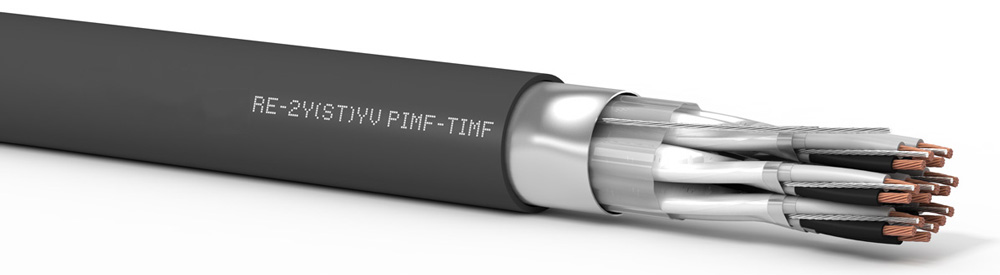

RE-Y(St)Y-fl PIMF / RE-Y(St)Y-fl TIMF Construction

	RE-Y(St)Y-fl PIMF	RE-Y(St)Y-fl TIMF
Conductor	Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)
Insulation	PVC compound Black / White twisted pairs with numbered cores	PVC compound Black / White / Red twisted triads with numbered cores
Binder Tape	Polyester foil on each twisted pair
Individual Screen	Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Binder Tape	Polyester foil on overall cable core formed by stranded pairs	Polyester foil on overall cable core formed by stranded triples
Collective Screen	Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Outer Sheath	Flame retardant PVC compound to EN50290-2-22 Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable Other colours on request

RE-Y(St)Y-fl PIMF / RE-Y(St)Y-fl TIMF Electrical Characteristics

Conductor size (Class 2)	nom.	mm2	0,5	0,75	1	1,3	1,5	2,5
Conductor resistance	max.	Ω/km	36,7	25,0	18,5	14,2	12,3	7,6
Insulation resistance	min.	MΩxkm	100
Mutual Capacitance	max.	nF/km	250
Inductance	max.	mH/km	1
L/R ratio	max.	µH/Ω	25	25	25	40	40	60

RE-Y(St)Y-fl PIMF / RE-Y(St)Y-fl TIMF Specifications

RE-Y(St)Y-fl PIMF	Cross Sections	Nominal Overall Diameter	Approximate Weight	RE-Y(St)Y-fl TIMF	Cross Sections	Nominal Overall Diameter	Approximate Weight
	(mm2)	(mm)	(kg/km)		(mm2)	(mm)	(kg/km)
	2x2x0,5	10,1	102		2x3x0,5	11,0	123
	4x2x0,5	11,7	156		4x3x0,5	13,0	201
	5x2x0,5	13,0	190		5x3x0,5	14,2	240
	6x2x0,5	14,1	220		6x3x0,5	15,6	285
	8x2x0,5	16,0	284		8x3x0,5	17,5	360
	10x2x0,5	18,2	351		10x3x0,5	20,1	447
	12x2x0,5	18,8	400		12x3x0,5	20,9	523
	16x2x0,5	21,1	516		16x3x0,5	23,4	675
	20x2x0,5	23,7	636		20x3x0,5	26,3	832
	24x2x0,5	26,4	759		24x3x0,5	29,3	994
	2x2x0,75	11,2	122		2x3x0,75	12,1	150
	4x2x0,75	13,2	197		4x3x0,75	14,4	251
	5x2x0,75	14,4	234		5x3x0,75	15,9	307
	6x2x0,75	16,0	279		6x3x0,75	17,3	358
	8x2x0,75	18,1	360		8x3x0,75	19,7	464
	10x2x0,75	20,6	445		10x3x0,75	22,5	575
	12x2x0,75	21,3	509		12x3x0,75	23,5	674
	16x2x0,75	24,0	567		16x3x0,75	26,3	871
	20x2x0,75	26,8	809		20x3x0,75	29,5	1075
	24x2x0,75	30,0	966		24x3x0,75	32,9	1284
	2x2x1	11,6	133		2x3x1	12,7	172
	4x2x1	13,7	218		4x3x1	14,8	280
	5x2x1	15,0	260		5x3x1	16,4	344
	6x2x1	16,5	310		6x3x1	18,1	410
	8x2x1	18,7	400		8x3x1	20,3	521
	10x2x1	21,4	532		10x3x1	23,5	659
	12x2x1	22,1	569		12x3x1	24,3	761
	16x2x1	24,7	735		16x3x1	27,2	986
	20x2x1	27,8	907		20x3x1	30,5	1217
	24x2x1	31,0	1084		24x3x1	34,2	1471
	2x2x1,3	12,5	158		2x3x1,3	13,5	200
	4x2x1,3	14,5	254		4x3x1,3	15,9	338
	5x2x1,3	16,1	311		5x3x1,3	17,4	407
	6x2x1,3	17,6	363		6x3x1,3	19,2	486
	8x2x1,3	20,0	470		8x3x1,3	21,8	631
	10x2x1,3	23,0	584		10x3x1,3	25,0	784
	12x2x1,3	23,8	683		12x3x1,3	26,0	921
	16x2x1,3	26,7	884		16x3x1,3	29,1	1195
	20x2x1,3	30,0	1090		20x3x1,3	32,7	1477
	24x2x1,3	33,4	1302		24x3x1,3	36,5	1764
	2x2x1,5	13,0	168		2x3x1,5	14,0	214
	4x2x1,5	15,2	279		4x3x1,5	16,6	366
	5x2x1,5	16,6	334		5x3x1,5	18,4	450
	6x2x1,5	18,3	398		6x3x1,5	20,1	526
	8x2x1,5	20,8	515		8x3x1,5	22,8	684
	10x2x1,5	23,8	638		10x3x1,5	26,3	962
	12x2x1,5	24,6	735		12x3x1,5	27,2	1000
	16x2x1,5	27,5	951		16x3x1,5	30,5	1300
	20x2x1,5	30,9	1175		20x3x1,5	34,4	1621
	24x2x1,5	34,7	1420		24x3x1,5	38,4	1936
	2x2x2,5	15,3	234		2x3x2,5	16,7	304
	4x2x2,5	18,1	395		4x3x2,5	19,8	528
	5x2x2,5	19,8	475		5x3x2,5	21,9	650
	6x2x2,5	21,8	566		6x3x2,5	24,1	775
	8x2x2,5	24,8	734		8x3x2,5	27,4	1010
	10x2x2,5	28,4	911		10x3x2,5	31,6	1267
	12x2x2,5	29,6	1069		12x3x2,5	32,7	1473
	16x2x2,5	33,1	1385		16x3x2,5	36,8	1935
	20x2x2,5	37,4	1728		20x3x2,5	41,3	2391
	24x2x2,5	41,7	2062		24x3x2,5	46,3	2877
