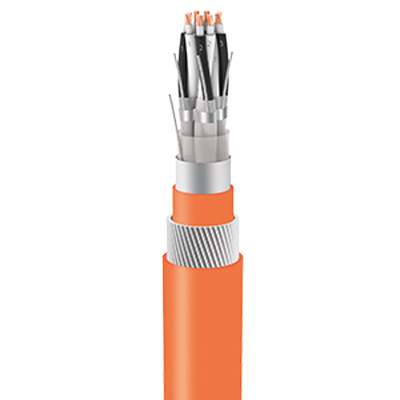

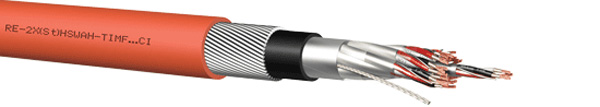

RE-2X(St)HSWAH-PIMF / TIMF..CI

What is RE-2X(St)HSWAH..CI cable

RE-2X(St)HSWAH..CI cable is used for communication and instrumentation purposes in industries such as oil exploration, cement, paper, steel, and power generation, as well as in intrinsically safe systems within hazardous areas (e.g., petrochemical plants and thermal power plants) to monitor measurement equipment in process automation applications. HFFR types are flame-retardant, largely self-extinguishing, emit low smoke density, and do not release toxic or corrosive gases when ignited. Armored types provide mechanical strength and protect the cable core from external mechanical impacts. Additionally, through specialized design, circuit integrity is maintained for at least 180 minutes under fire conditions.

RE-2X(St)HSWAH-PIMF / TIMF..CI Construction

	RE-2X(St)HSWAH..CI	RE-2X(St)HSWAH-PIMF..CI	RE-2X(St)HSWAH-TIMF..CI
Conductor	Electrolytic, stranded, annealed plain copper wires Class 2 (Class 1 or Class 5 and / or tinned on request)
Insulation	Mica tape + XLPE compound Black / White twisted pairs with numbered cores	Mica tape + XLPE compound Black / White twisted pairs with numbered cores	Mica tape + XLPE compound Black / White / Red twisted triads with numbered cores
Binder Tape	Polyester foil on overall cable core formed by stranded pairs	Polyester foil on each twisted pair	Polyester foil on each twisted triad
Individual Screen		Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Binder Tape		Polyester foil on overall cable core formed by stranded pairs
Collective Screen	Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Inner Sheath	LSZH compound
Armour	Round galvanised steel wires
Outer Sheath	Halogen free flame retardant LSZH compound to EN50290-2-27 Orange or Red for circuit integrity Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable

RE-2X(St)HSWAH-PIMF / TIMF..CI Electrical Characteristics

Conductor size (Class 2)	nom.	mm2	0.5	0.75	1	1.3	1.5	2.5
Conductor resistance	max.	Ω/km	36.7	25	18.5	14.2	12.3	7.6
Insulation resistance	min.	MΩxkm	5000
Mutual Capacitance	max.	nF/km	150
Inductance	max.	mH/km	1
L/R ratio	max.	µH/Ω	25	25	25	40	40	60

RE-2X(St)HSWAH-PIMF / TIMF..CI Specifications

RE-2X(St)HSWAH-PIMF..CI	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)	RE-2X(St)HSWAH-TIMF..CI	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)
	2x2x0,5	16.5	421		2x3x0,5	17.7	475
	4x2x0,5	18.7	533		4x3x0,5	19.9	604
	5x2x0,5	20.7	710		5x3x0,5	22.2	810
	6x2x0,5	22.3	790		6x3x0,5	23.8	903
	8x2x0,5	24.4	917		8x3x0,5	26.3	1061
	10x2x0,5	27.2	1072		10x3x0,5	29.3	1240
	12x2x0,5	28	1150		12x3x0,5	30.2	1336
	16x2x0,5	30.7	1354		16x3x0,5	33.8	1774
	20x2x0,5	35	1805		20x3x0,5	37.7	2117
	24x2x0,5	38.3	2065		24x3x0,5	41.4	2421
	2x2x0,75	17.5	466		2x3x0,75	18.6	518
	4x2x0,75	19.6	582		4x3x0,75	21.9	805
	5x2x0,75	21.9	790		5x3x0,75	23.5	897
	6x2x0,75	23.4	868		6x3x0,75	25.4	1012
	8x2x0,75	25.9	1020		8x3x0,75	27.9	1187
	10x2x0,75	28.9	1190		10x3x0,75	31.2	1396
	12x2x0,75	29.7	1280		12x3x0,75	33	1712
	16x2x0,75	33.3	1697		16x3x0,75	36.7	2067
	20x2x0,75	37.1	2025		20x3x0,75	40.4	2403
	24x2x0,75	40.7	2314		24x3x0,75	45.2	3062
	2x2x1	17.8	483		2x3x1	19	540
	4x2x1	20.7	725		4x3x1	22.4	848
	5x2x1	22.4	828		5x3x1	24	947
	6x2x1	24	913		6x3x1	25.9	1068
	8x2x1	26.5	1073		8x3x1	28.6	1260
	10x2x1	29.6	1264		10x3x1	32.9	1695
	12x2x1	30.5	1364		12x3x1	33.8	1820
	16x2x1	34.6	1860		16x3x1	37.5	2218
	20x2x1	38.1	2162		20x3x1	41.4	2584
	24x2x1	41.8	2471		24x3x1	46.7	3330
	2x2x1,3	18.8	526		2x3x1,3	19.8	588
	4x2x1,3	22.1	808		4x3x1,3	23.3	921
	5x2x1,3	23.7	910		5x3x1,3	25.2	1053
	6x2x1,3	25.6	1015		6x3x1,3	27.1	1177
	8x2x1,3	28.1	1190		8x3x1,3	30.1	1404
	10x2x1,3	32.2	1590		10x3x1,3	34.8	1900
	12x2x1,3	33.3	1717		12x3x1,3	35.8	2062
	16x2x1,3	37	2090		16x3x1,3	39.3	2460
	20x2x1,3	40.8	2427		20x3x1,3	44.4	3200
	24x2x1,3	45.6	3096		24x3x1,3	49.2	3720
	2x2x1,5	18.9	534		2x3x1,5	20.8	717
	4x2x1,5	22.3	825		4x3x1,5	23.7	958
	5x2x1,5	23.9	930		5x3x1,5	25.7	1097
	6x2x1,5	25.8	1050		6x3x1,5	27.6	1226
	8x2x1,5	28.4	1233		8x3x1,5	30.7	1476
	10x2x1,5	32.7	1647		10x3x1,5	35.5	1980
	12x2x1,5	33.7	1783		12x3x1,5	36.7	2172
	16x2x1,5	37.4	2153		16x3x1,5	40.4	2598
	20x2x1,5	41.2	2522		20x3x1,5	45.4	3350
	24x2x1,5	46.5	3257		24x3x1,5	50.3	3920
	2x2x2,5	22.4	790		2x3x2,5	23.9	900
	4x2x2,5	25.6	1035		4x3x2,5	27.3	1215
	5x2x2,5	27.6	1178		5x3x2,5	29.7	1404
	6x2x2,5	29.9	1337		6x3x2,5	33	1795
	8x2x2,5	34	1800		8x3x2,5	37.1	2200
	10x2x2,5	38.5	2154		10x3x2,5	41.6	2594
	12x2x2,5	39.6	2336		12x3x2,5	43.6	3132
	16x2x2,5	44.6	3106		16x3x2,5	48.6	3850
	20x2x2,5	49.7	3690		20x3x2,5	53.7	4523
	24x2x2,5	55.9	4740		24x3x2,5	60.8	5805
