RE-2X(St)H-PIMF / TIMF..CI FE-180

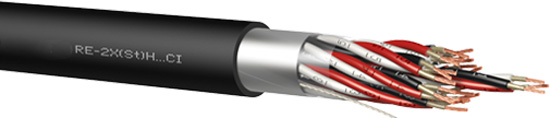

What is RE-2X(St)H..CI?

RE-2X(St)H..CI cable is designed for industries utilizing communications and instrumentation, such as oil exploration, cement, paper, steel, power generation, and intrinsically safe systems in hazardous areas (e.g., petrochemical plants and thermal power plants) to monitor measurement equipment in process automation applications. HFFR types exhibit low flammability in fire conditions, are largely self-extinguishing, produce low smoke density, and do not release toxic or corrosive gases during combustion. Additionally, their specialized design provides at least 180 minutes of circuit integrity under fire conditions.



RE-2X(St)H-PIMF / TIMF..CI cables connect instruments and control systems for indoor transmission of analog or digital signals. Not designed for power supply, they must not be directly connected to mains power or other low-impedance sources. Recommended for applications requiring circuit integrity maintenance during fire conditions.

RE-2X(St)H-PIMF / TIMF..CI Construction

	RE-2X(St)H..CI	RE-2X(St)H-PIMF..CI	RE-2X(St)H-TIMF..CI
Conductor	Electrolytic, stranded, annealed plain copper wires Class 2 (Class 1 or Class 5 and / or tinned on request)
Insulation	Mica tape + XLPE compound Black / White twisted pairs with numbered cores	Mica tape + XLPE compound Black / White twisted pairs with numbered cores	Mica tape + XLPE compound Black / White / Red twisted triads with numbered cores
Binder Tape	Polyester foil on overall cable core formed by stranded pairs	Polyester foil on each twisted pair	Polyester foil on each twisted triad
Individual Screen		Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Binder Tape		Polyester foil on overall cable core formed by stranded pairs	Polyester foil on overall cable core formed by stranded triples
Collective Screen	Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Outer Sheath	Halogen free flame retardant LSZH compound Orange or Red for circuit integrity Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable

RE-2X(St)H-PIMF / TIMF..CI Electrical Characteristics

Conductor size (Class 2)	nom.	mm2	0.5	0.75	1	1.3	1.5	2.5
Conductor resistance	max.	Ω/km	36.7	25	18.5	14.2	12.3	7.6
Insulation resistance	min.	MΩxkm	5000
Mutual Capacitance	max.	nF/km	150
Inductance	max.	mH/km	1
L/R ratio	max.	µH/Ω	25	25	25	40	40	60

RE-2X(St)H-PIMF / TIMF..CI Specifications

RE-2X(St)H-PIMF..CI	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)	RE-2X(St)H-TIMF..CI	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)
	2x2x0,5	11.9	118		2x3x0,5	13.1	148
	4x2x0,5	14.1	186		4x3x0,5	15.5	237
	5x2x0,5	15.6	227		5x3x0,5	16.9	280
	6x2x0,5	17	260		6x3x0,5	18.7	334
	8x2x0,5	19.3	334		8x3x0,5	21.2	430
	10x2x0,5	22.1	414		10x3x0,5	24.2	530
	12x2x0,5	22.9	470		12x3x0,5	25.1	605
	16x2x0,5	25.6	600		16x3x0,5	28	776
	20x2x0,5	29	755		20x3x0,5	31.7	972
	24x2x0,5	32.3	896		24x3x0,5	35.4	1158
	2x2x0,75	12.9	140		2x3x0,75	14	170
	4x2x0,75	15.2	220		4x3x0,75	16.6	278
	5x2x0,75	16.6	260		5x3x0,75	18.4	340
	6x2x0,75	18.3	310		6x3x0,75	20.1	395
	8x2x0,75	20.8	400		8x3x0,75	22.8	508
	10x2x0,75	23.8	493		10x3x0,75	26.3	642
	12x2x0,75	24.6	560		12x3x0,75	27.2	734
	16x2x0,75	27.5	717		16x3x0,75	30.5	945
	20x2x0,75	30.9	882		20x3x0,75	34.4	1180
	24x2x0,75	34.7	1070		24x3x0,75	38.4	1405
	2x2x1	13.2	150		2x3x1	14.4	188
	4x2x1	15.6	243		4x3x1	17.1	310
	5x2x1	17.1	288		5x3x1	18.9	378
	6x2x1	18.9	343		6x3x1	20.8	450
	8x2x1	21.4	440		8x3x1	23.7	580
	10x2x1	24.5	545		10x3x1	27.1	718
	12x2x1	25.4	622		12x3x1	28	823
	16x2x1	28.4	798		16x3x1	31.5	1076
	20x2x1	32.1	998		20x3x1	35.4	1325
	24x2x1	35.8	1190		24x3x1	39.7	1600
	2x2x1,3	14.2	172		2x3x1,3	15.4	220
	4x2x1,3	16.8	280		4x3x1,3	18.2	367
	5x2x1,3	18.6	342		5x3x1,3	19.9	438
	6x2x1,3	20.3	397		6x3x1,3	22	523
	8x2x1,3	23	510		8x3x1,3	25	676
	10x2x1,3	26.6	646		10x3x1,3	28.8	850
	12x2x1,3	27.5	738		12x3x1,3	29.8	980
	16x2x1,3	30.8	948		16x3x1,3	33.3	1264
	20x2x1,3	34.8	1184		20x3x1,3	37.6	1577
	24x2x1,3	38.8	1410		24x3x1,3	42.2	1902
	2x2x1,5	14.3	180		2x3x1,5	15.7	234
	4x2x1,5	17	296		4x3x1,5	18.6	392
	5x2x1,5	18.8	362		5x3x1,5	20.6	480
	6x2x1,5	20.7	430		6x3x1,5	22.5	560
	8x2x1,5	23.5	554		8x3x1,5	25.6	726
	10x2x1,5	26.9	687		10x3x1,5	29.5	914
	12x2x1,5	27.9	787		12x3x1,5	30.5	1053
	16x2x1,5	31.4	1030		16x3x1,5	34.4	1380
	20x2x1,5	35.2	1265		20x3x1,5	38.6	1700
	24x2x1,5	39.5	1525		24x3x1,5	43.3	2050
	2x2x2,5	17.1	250		2x3x2,5	18.8	330
	4x2x2,5	20.3	418		4x3x2,5	22.2	560
	5x2x2,5	22.5	510		5x3x2,5	24.6	688
	6x2x2,5	24.8	608		6x3x2,5	27.2	820
	8x2x2,5	28.2	784		8x3x2,5	30.9	1062
	10x2x2,5	32.5	987		10x3x2,5	35.6	1334
	12x2x2,5	33.6	1134		12x3x2,5	37	1560
	16x2x2,5	37.8	1480		16x3x2,5	41.4	2020
	20x2x2,5	42.7	1843		20x3x2,5	46.7	2514
	24x2x2,5	47.9	2220		24x3x2,5	52.4	3023
