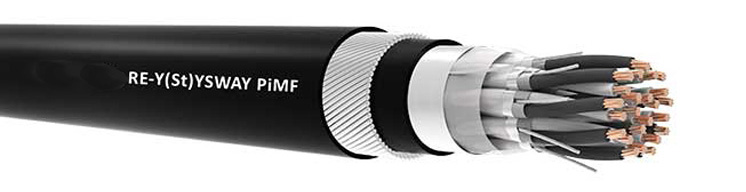

RE-Y(St)YSWAY-fl PIMF / RE-Y(St)YSWAY-fl TIMF

What is RE-Y(St)YSWAY-fl PIMF / TIMF?

RE-Y(St)YSWAY-fl PIMF / RE-Y(St)YSWAY-fl TIMF, as instrumentation cables compliant with EN 50288-7, are suitable for industrial applications such as petrochemical plants, power stations, steel and aluminum mills, water treatment plants, pipeline systems, and industrial buildings within the oil and gas sector. This armored instrumentation cable delivers mechanical strength, shielding the cable cores from external mechanical impacts. Consequently, it is highly valued for its critical role in data measurement and control, as well as its capability to withstand demanding project environments.

RE-Y(St)YSWAY-fl PIMF / TIMF Construction

	RE-Y(St)YSWAY-fl PIMF	RE-Y(St)YSWAY-fl TIMF
CONDUCTOR	nnealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)
INSULAION	PVC compound to EN50290-2-21 Black / White twisted pairs with numbered cores	PVC compound to EN50290-2-21 Black / White / Red twisted triads with numbered cores
BINDER TAPE	Polyester foil on each twisted pair	Polyester foil on each twisted triad
INDIVIDUAL SCREEN	Aluminum/polyester foil with a tinned copper drain wire
BINDER TAPE	Polyester foil on overall cable core formed by stranded pairs
COLLECTIVE SCREEN	Aluminum/polyester foil with a tinned copper drain wire
INNER SHEATH	PVC compound to EN50290-2-22
ARMOUR	Round galvanised steel wires
OUTER SHEATH	Flame retardant PVC compound to EN50290-2-22 Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable Other colours on request

RE-Y(St)YSWAY-fl PIMF / TIMF Electrical Characteristics

Conductor size (Class 2)	nom.	mm2	0.5	0.75	1	1.3	1.5	2.5
Conductor resistance	max.	Ω/km	36.7	25	18.5	14.2	12.3	7.6
Insulation resistance	min.	MΩxkm	100
Mutual Capacitance	max.	nF/km	250
Inductance	max.	mH/km	1
L/R ratio	max.	µH/Ω	25	25	25	40	40	60

RE-Y(St)YSWAY-fl PIMF / TIMF Specifications

RE-Y(St)YSWAY-fl PIMF	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)	RE-Y(St)YSWAY-fl TIMF	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)
	2x2x0,5	14.7	367		2x3x0,5	15.6	410
	4x2x0,5	16.3	458		4x3x0,5	17.6	530
	5x2x0,5	17.5	522		5x3x0,5	18.8	600
	6x2x0,5	18.7	575		6x3x0,5	20.7	780
	8x2x0,5	21.3	798		8x3x0,5	22.8	824
	10x2x0,5	23.3	920		10x3x0,5	25.4	1080
	12x2x0,5	23.9	982		12x3x0,5	26	1160
	16x2x0,5	26.2	1163		16x3x0,5	28.3	1374
	20x2x0,5	28.6	1336		20x3x0,5	31.2	1610
	24x2x0,5	32	1725		24x3x0,5	35.3	2092
	2x2x0,75	15.8	415		2x3x0,75	16.7	465
	4x2x0,75	17.8	536		4x3x0,75	19	613
	5x2x0,75	19	596		5x3x0,75	21	810
	6x2x0,75	21	782		6x3x0,75	22.6	910
	8x2x0,75	23.2	918		8x3x0,75	24.8	1070
	10x2x0,75	25.7	1080		10x3x0,75	27.6	1260
	12x2x0,75	26.4	1158		12x3x0,75	28.4	1374
	16x2x0,75	29	1382		16x3x0,75	31.2	1650
	20x2x0,75	32.6	1795		20x3x0,75	35.5	2175
	24x2x0,75	35.9	2084		24x3x0,75	38.9	2506
	2x2x1	16.2	434		2x3x1	17.1	488
	4x2x1	18.3	565		4x3x1	19.4	655
	5x2x1	19.5	635		5x3x1	21.7	870
	6x2x1	21.8	837		6x3x1	23.2	968
	8x2x1	23.8	980		8x3x1	25.6	1155
	10x2x1	26.5	1145		10x3x1	28.4	1360
	12x2x1	27.2	1243		12x3x1	29.4	1500
	16x2x1	29.8	1476		16x3x1	33	1990
	20x2x1	33.6	1930		20x3x1	36.7	2375
	24x2x1	37.2	2260		24x3x1	40.2	2736
	2x2x1,3	16.9	468		2x3x1,3	18.1	540
	4x2x1,3	19.1	620		4x3x1,3	21	842
	5x2x1,3	21.4	826		5x3x1,3	22.7	960
	6x2x1,3	22.9	927		6x3x1,3	24.3	1080
	8x2x1,3	25.3	1100		8x3x1,3	26.9	1295
	10x2x1,3	28	1282		10x3x1,3	30.1	1538
	12x2x1,3	28.9	1396		12x3x1,3	31	1686
	16x2x1,3	32.3	1853		16x3x1,3	35.1	2294
	20x2x1,3	35.9	2208		20x3x1,3	38.7	2698
	24x2x1,3	39.4	2543		24x3x1,3	42.5	3110
	2x2x1,5	17.5	500		2x3x1,5	18.6	568
	4x2x1,5	19.6	648		4x3x1,5	21.9	904
	5x2x1,5	21.9	870		5x3x1,5	23.5	1020
	6x2x1,5	23.4	967		6x3x1,5	25.4	1160
	8x2x1,5	25.9	1150		8x3x1,5	27.9	1383
	10x2x1,5	28.9	1353		10x3x1,5	31.2	1640
	12x2x1,5	29.7	1475		12x3x1,5	33	2004
	16x2x1,5	33.3	1957		16x3x1,5	36.7	2456
	20x2x1,5	37.1	2350		20x3x1,5	40.4	2890
	24x2x1,5	40.7	3170		24x3x1,5	45.2	3645
	2x2x2,5	19.7	610		2x3x2,5	22	842
	4x2x2,5	23.2	953		4x3x2,5	25.1	1150
	5x2x2,5	25.1	1095		5x3x2,5	27	1323
	6x2x2,5	26.9	1228		6x3x2,5	29.2	1502
	8x2x2,5	29.9	1486		8x3x2,5	33.2	2015
	10x2x2,5	34.6	2000		10x3x2,5	37.6	2448
	12x2x2,5	35.6	2185		12x3x2,5	38.7	2695
	16x2x2,5	39.1	2608		16x3x2,5	43.4	3560
	20x2x2,5	44.2	3404		20x3x2,5	48.5	4268
	24x2x2,5	48.9	3964		24x3x2,5	53.3	4948
