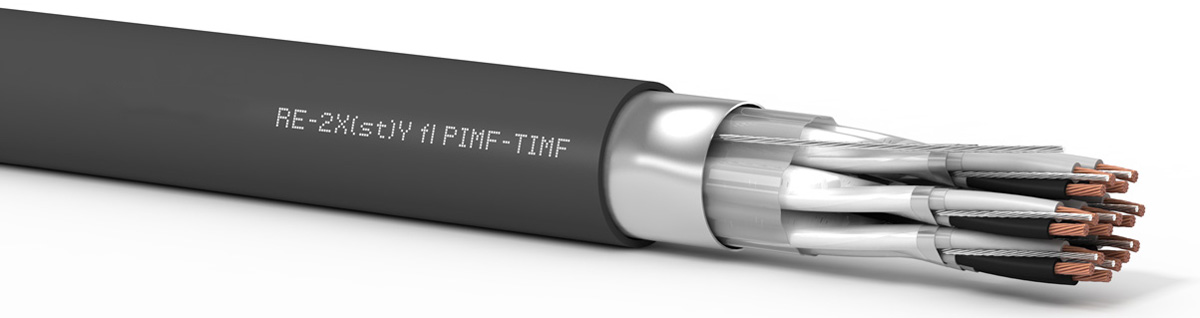

RE-2X(St)Y-fl PIMF / RE-2X(St)Y-fl TIMF

Brand Name: HuaDong Cable
Name: RE-2X(St)Y-fl PIMF / TIMF
Standard: EN 50288-7 Cable
Rated Voltage: 500 V
Conductor: Annealed Plain Copper Wires Class 2 (Class 1 or Class 5 and / or tinned on request)
Email: huadong@hdcablegroup.com
Discount Price

What is RE-2X(St)Y-fl PIMF / TIMF

RE-2X(St)Y-fl PIMF / TIMF belong to EN 50288-7 cable, is an industrial instrumentation and control cable designed for transmitting analog or digital signals in harsh environments. “PIMF” indicates Pairs in metal foil. “TIMF” denotes Triad in Metal Foil. “fl” indicates flame-retardant properties, complemented by an overall aluminum foil shield and flame-retardant PVC outer sheath. These cables connect instruments and control systems for analog or digital signal transmission, finding extensive application in manufacturing plants such as petrochemical facilities.

RE-2X(St)Y-fl PIMF / TIMF Construction

	RE-2X(St)Y-fl PIMF	RE-2X(St)Y-fl TIMF
Conductor	Electrolytic, stranded, annealed plain copper wires to IEC 60228 Class 2 (Class 1 or Class 5 and / or tinned on request)
Insulation	XLPE compound to EN50290-2-29 Black / White twisted pairs with numbered cores	XLPE compound to EN50290-2-29 Black / White / Red twisted triads with numbered cores
Binder Tape	Polyester foil on each twisted pair	Polyester foil on each twisted triad
Individual Screen	Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Binder Tape	Polyester foil on overall cable core formed by stranded pairs	Polyester foil on overall cable core formed by stranded triples
Collective Screen	Aluminum/polyester foil with a tinned copper drain wire in direct contact with the metallic side of the foil
Outer Sheath	Flame retardant PVC compound to EN50290-2-22 Blue for intrinsically safe cable Black for UV resistant and/or non-instrinsically safe cable Other colours on request

RE-2X(St)Y-fl PIMF / TIMF Electrical Characteristics

Conductor size (Class 2)	nom.	mm2	0.5	0.75	1	1.3	1.5	2.5
Conductor resistance	max.	Ω/km	36.7	25	18.5	14.2	12.3	7.6
Insulation resistance	min.	MΩxkm	5000
Mutual Capacitance	max.	nF/km	150
Inductance	max.	mH/km	1
L/R ratio	max.	µH/Ω	25	25	25	40	40	60

RE-2X(St)Y-fl PIMF / TIMF Specifications

RE-2X(St)Y-fl PIMF	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)	RE-2X(St)Y-fl TIMF	Cross Sections (mm2)	Nominal Overall Diameter (mm)	Approximate Weight (kg/km)
	2x2x0,5	10.1	96		2x3x0,5	11	115
	4x2x0,5	11.7	145		4x3x0,5	13	186
	5x2x0,5	13	177		5x3x0,5	14.2	220
	6x2x0,5	14.1	205		6x3x0,5	15.6	262
	8x2x0,5	16	263		8x3x0,5	17.5	328
	10x2x0,5	18.2	325		10x3x0,5	20.1	408
	12x2x0,5	18.8	370		12x3x0,5	20.9	476
	16x2x0,5	21.1	474		16x3x0,5	23.4	612
	20x2x0,5	23.7	583		20x3x0,5	26.3	754
	24x2x0,5	26.4	696		24x3x0,5	29.3	900
	2x2x0,75	11.2	115		2x3x0,75	12.1	140
	4x2x0,75	13.2	184		4x3x0,75	14.4	230
	5x2x0,75	14.4	217		5x3x0,75	15.9	282
	6x2x0,75	16	260		6x3x0,75	17.3	327
	8x2x0,75	18.1	322		8x3x0,75	19.7	423
	10x2x0,75	20.6	410		10x3x0,75	22.5	524
	12x2x0,75	21.3	468		12x3x0,75	23.5	613
	16x2x0,75	24	528		16x3x0,75	26.3	790
	20x2x0,75	26.8	741		20x3x0,75	29.5	973
	24x2x0,75	30	884		24x3x0,75	32.9	1160
	2x2x1	11.6	126		2x3x1	12.7	160
	4x2x1	13.7	204		4x3x1	14.8	258
	5x2x1	15	242		5x3x1	16.4	317
	6x2x1	16.5	290		6x3x1	18.1	378
	8x2x1	18.7	372		8x3x1	20.3	478
	10x2x1	21.4	488		10x3x1	23.5	606
	12x2x1	22.1	526		12x3x1	24.3	696
	16x2x1	24.7	678		16x3x1	27.2	900
	20x2x1	27.8	836		20x3x1	30.5	1110
	24x2x1	31	998		24x3x1	34.2	1342
	2x2x1,3	12.5	150		2x3x1,3	13.5	187
	4x2x1,3	14.5	237		4x3x1,3	15.9	314
	5x2x1,3	16.1	291		5x3x1,3	17.4	377
	6x2x1,3	17.6	340		6x3x1,3	19.2	450
	8x2x1,3	20	438		8x3x1,3	21.8	583
	10x2x1,3	23	543		10x3x1,3	25	724
	12x2x1,3	23.8	635		12x3x1,3	26	848
	16x2x1,3	26.7	820		16x3x1,3	29.1	1100
	20x2x1,3	30	1010		20x3x1,3	32.7	1356
	24x2x1,3	33.4	1205		24x3x1,3	36.5	1620
	2x2x1,5	13	160		2x3x1,5	14	200
	4x2x1,5	15.2	262		4x3x1,5	16.6	340
	5x2x1,5	16.6	312		5x3x1,5	18.4	418
	6x2x1,5	18.3	372		6x3x1,5	20.1	488
	8x2x1,5	20.8	481		8x3x1,5	22.8	633
	10x2x1,5	23.8	595		10x3x1,5	26.3	798
	12x2x1,5	24.6	684		12x3x1,5	27.2	922
	16x2x1,5	27.5	883		16x3x1,5	30.5	1196
	20x2x1,5	30.9	1090		20x3x1,5	34.4	1493
	24x2x1,5	34.7	1317		24x3x1,5	38.4	1782
	2x2x2,5	15.3	221		2x3x2,5	16.7	285
	4x2x2,5	18.1	370		4x3x2,5	19.8	490
	5x2x2,5	19.8	443		5x3x2,5	21.9	603
	6x2x2,5	21.8	528		6x3x2,5	24.1	718
	8x2x2,5	24.8	684		8x3x2,5	27.4	933
	10x2x2,5	28.4	848		10x3x2,5	31.6	1172
	12x2x2,5	29.6	993		12x3x2,5	32.7	1360
	16x2x2,5	33.1	1284		16x3x2,5	36.8	1783
	20x2x2,5	37.4	1602		20x3x2,5	41.3	2200
	24x2x2,5	41.7	1910		24x3x2,5	46.3	2650
