Monoconductor

1K22 MP35N

7/32” (5.69 mm) MONOCONDUCTOR CORROSION RESISTANT 1K22 MP35N

7/32” (5.69 mm) MONOCONDUCTOR, CORROSION RESISTANT 1K22 MP35N PROPERTIES


Cable Diameter: 0.224” +0.005” - 0.002” (5.69mm + 0.13mm -0.05mm)
Minimum Sheave Diameter: 14” (36 cm)
Cable Stretch Coeffcient: 2.9 ft/Kft/Klbs (3.30 m/Km/5KN)

7/32” (5.69 mm) MONOCONDUCTOR, CORROSION RESISTANT 1K22 MP35N ELECTRICAL


Maximum Conductor Voltage: 1,200 VDC
Conductor AWG Rating: 18
Minimum Insulation Resistance: 1,500 Mega Ω/Kft @ 500VDC 457 Mega Ω/Km @ 500VDC)
Armor Electrical Resistance: 22.0 Ω/Kft (72.2 Ω/Km)

7/32” (5.69 mm) MONOCONDUCTOR, CORROSION RESISTANT 1K22 MP35N MECHANICAL


Cable Breaking Strength
Ends Fixed: 5,200 lbs (23.0 KN) Nominal
Maximum Suggested Working Tension: 2,600 lbs (11.6 KN)
Number and Size of Wires
Inner Armor: 15 x 0.0243” (0.617 mm)
Outer Armor: 15 x 0.0358” (0.909 mm)
Average Wire Breaking Strength
Inner Armor: 125 lbs (0.56 KN)
Outer Armor: 272 lbs (1.21 KN)

Cable Type  Core Description  Cable Weight
  Temp
Rating
°F
°C
Plastic
Type
Insulation
Thickness
in
mm
Copper
Construction
in
mm
Res
Typical
Ω/Kft
Ω/Km
Cap.
Typical
pf/ft
pf/m
O.D.
Each
in
mm
in
Air
in
H2O
lbs/Kft
Kg/Km
1K22SA-MP35N  See
Below
PFA  0.0305
0.775
7x0.0159
7x0.404
6.7
22.0
43
141
0.108
2.743
100
149
86
128

Insulation is rated to 500°F. Armor wires are rated to 425° F at medium levels of H2S + CO2.
The armor wires are made of a corrosion resistant alloy steel. Wires are preformed.
The nickel coated copper wires are made of ASTMB355 Class 10 and they are used to increase corrosion protection.

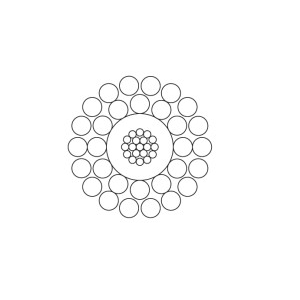

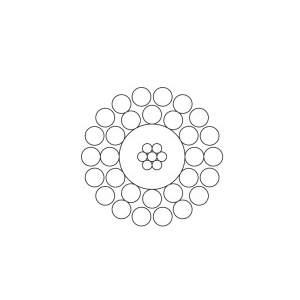

Core assembly – Copper strand consists of six wires around one center wire. Conductor resistance is measured at 68° F. Voids
in the copper strand are flled with a water-blocking agent to reduce water and gas migration.
SUPERSEAL, a special pressure seal agent, is applied between armor layers.
The temperature rating assumes a normal gradient for both temperature and weight.
All values shown are nominal or typical values
